Yes Tech P2.6 MG14 Indoor LED Walls Indoor
  • New

Yes Tech P2.6 MG14 Indoor


€658.00
Tax included

Small triangle display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000nit, max. 3840 Hz, 250 x 500 mm, 2.5 kg


Out of Stock

Free shipping


wishlist

Yes Tech P2.6 MG14 Indoor



Right triangle shaped LED display (P2.6 MG14 Indoor), 2.6 mm pixel pitch, SMD1515, full black LED, ICN2153, for indoor use (800 - 1000 nits).

It is part of the MG Creative Extension series, which includes right angle, triangle and circular sector displays to make Magic Stage even more creative. This newly updated series will allow you to think and design the stage even more creatively, not only with the arc layout and presentation, but also polygon, sector, etc.

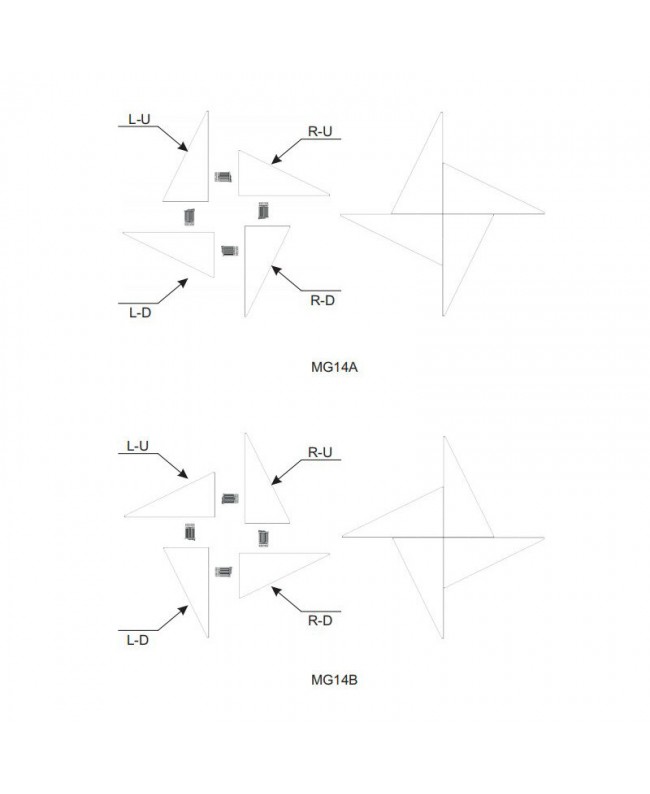

Combining the Magic Stage LED wall modules with the MG Creative Extensions which include rectangular (MG11), isosceles triangle (MG12), circular sector (MG13), right angle triangle (MG14), rectangle (MG15) LED displays, you can realize a variety of creative displays of the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart, etc.

  • User benefits
  • Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series
  • Areas of use
  • All those in which the Yes Tech LED displays of the Rental and Staging series are used
  • Module LED encapsulation: 1515
  • Pixel pitch: 2.6 mm
  • Cabinet size: 250 x 500 x 73 mm
  • Cabinet area: 0.0625 m 2
  • Weight: 2.5 kg/cabinet Pixel density 147,456 dot/m 2 IP grade IP50
  • White balance brightness: 800 - 1200 nit
  • Color temperature: 6500 - 10,000 K adjustable Horizontal viewing angle 160°
  • Vertical viewing angle: 120°

Electrical parameter

  • S Power consumption: 420 / 140 W/m 2
  • Working voltage: 100 - 264 V AC 50/60 Hz
  • Processing performance Driving method Constant drive Scanning method: 1/24 s Frame frequency 50 and 60 Hz
  • Refresh frequency: 1920 - 3840 Hz
  • Control system Nova Star Usage parameters Life span: 80,000 h Working / storage temperature -20 to 45 °C / -30 to 60 °C
  • Working / storage humidity: 10 - 90% / 10 - 90% RH (no condensation) Communication mode CAT5

YES-P2.6MG14I20

Data sheet

Pixel Pitch
2.6 mm
Giorni di elaborazione
3
