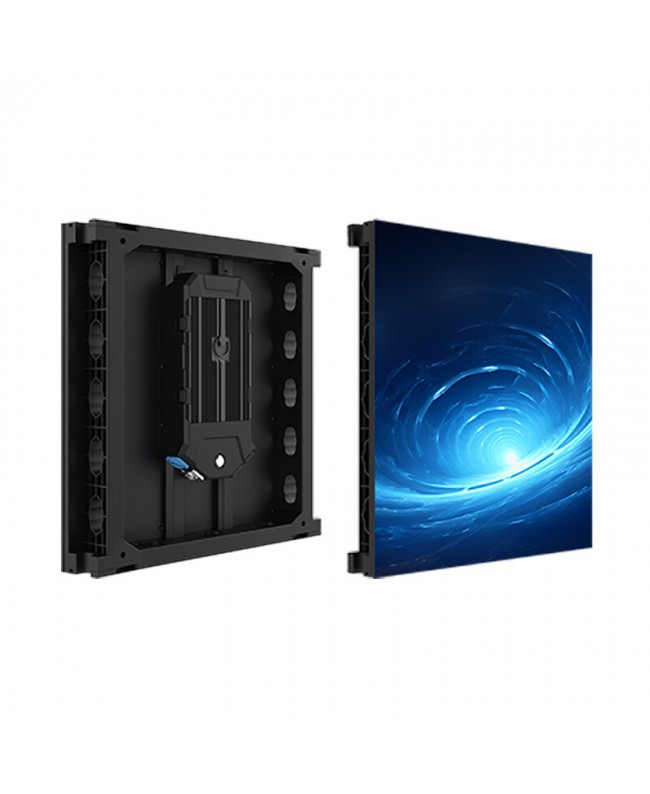

Yes Tech P2.6 MG10 Indoor

The Yes Tech MG10 Series P2.6 LED panel represents a sophisticated and cutting-edge option for high-end indoor applications. Thanks to its pixel pitch of just 2.6 mm, this screen guarantees remarkable detail and superior clarity.

One of the most interesting aspects is its modular design. The power supply box has been designed to be easily removable, making maintenance quick and efficient. This, combined with the innovative internal pin connection, allows for hassle-free assembly and disassembly of the panel, eliminating the need for complex interventions. The cabinet also adopts an integrated design, with significantly improved module flatness and panel joint precision, achieving optimal viewing consistency.

Another innovative feature is the ability to use different modules, with different pixel pitches, on the same cabinet.

Visually, the P2.6 MG10 Indoor stands out for its top-level specifications. The refresh rate reaches 7680 Hz, allowing for extraordinary image fluidity, particularly relevant in dynamic events or when working with moving content. The panel also supports an 18-bit grayscale and boasts a contrast ratio of 9000:1, ensuring vivid colors and deep blacks, essential features for a breathtaking HDR experience.

Added to this is an advanced thermal compensation technology, which solves color uniformity problems typical of other LED screens, such as color alterations due to irregular heat dissipation; this innovation guarantees constant image quality over time, keeping viewers' attention on the content without distractions.

In terms of flexibility, this display is capable of adapting to the most creative needs. It supports curved configurations up to +-10°, allowing users to create scenic and engaging installations. It is even possible to combine it with others of the same brand (belonging to the MG Cube and MU indoor series), creating personalized structures, or with the MG Creative-Extended series to create letters, numbers, hearts, etc.

Technically, the panel is equally impressive. The dimensions of the module are 250 x 250 mm, with a cabinet of 500 x 500 x 73 mm and a light weight of only 5.7 kg per unit. This makes it not only convenient to install, but also easy to transport. The brightness varies between 800 and 1200 nits, ensuring optimal visibility in indoor environments. The viewing angles guarantee a coverage of 160 ° horizontally and 120 ° vertically.

Finally, the energy consumption has also been optimized. Ultimately, the Yes Tech MG10 Series combines design, technical performance and practicality to meet the highest standards in the industry.

• User benefits
• Unparalleled visual experience
• Designed with the user in mind, with features and functions that make it easy to use and manage
• Different modules with different pixel pitches on the same cabinet (platform design)Improved flatness for modules and splicing accuracy between panels
• Thermal compensation technology
• High reliability for debugging: one click to restore standard viewing and save time during debugging
• Dual backup media for calibration
• Unique TET technology minimizes damage to LE
• Ds during transportation or operation to reduce maintenance costs
• Creative shapes: curved surfaces, special shapes (in combination with MG Creative-Extended Series), vertical / horizontal / double-sided arrangement
• Application areas
• High-level conferences
• Award ceremonies
• Concerts (indoor)TV studios, etc.
