Yes Tech P3.9 MG13 LED Walls Indoor
  • New

Yes Tech P3.9 MG13

€982.00
Tax included

Sector Display indoor, IC MBI5252, SMD2020, 800-1200 nit, max. 3840 Hz, 500x500 mm, 4.6 kg

Out of Stock

Free shipping

Compare

wishlist

Yes Tech P3.9 MG13

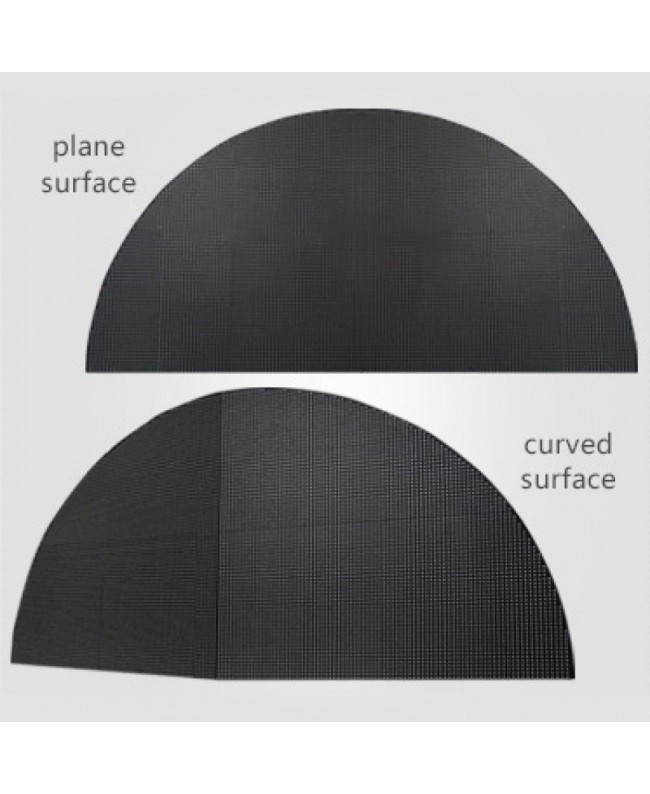

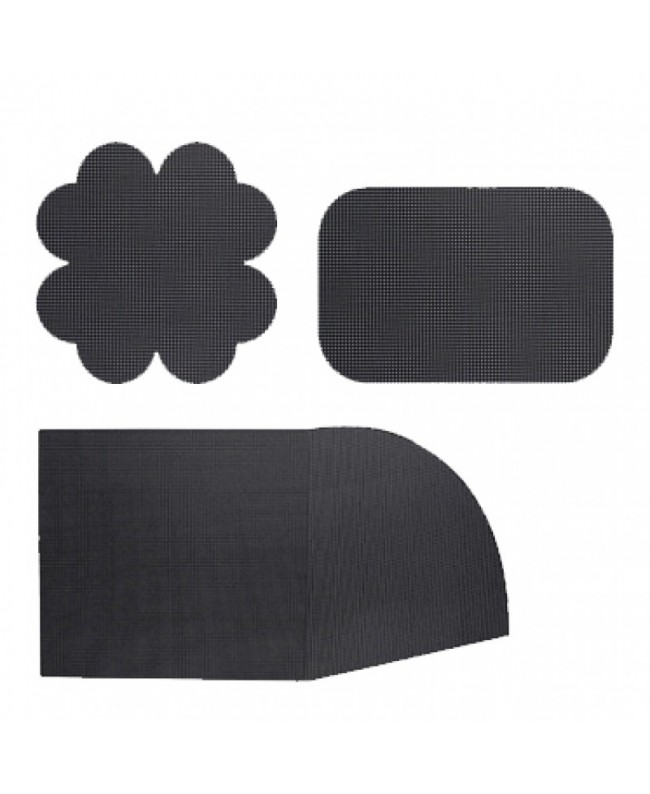

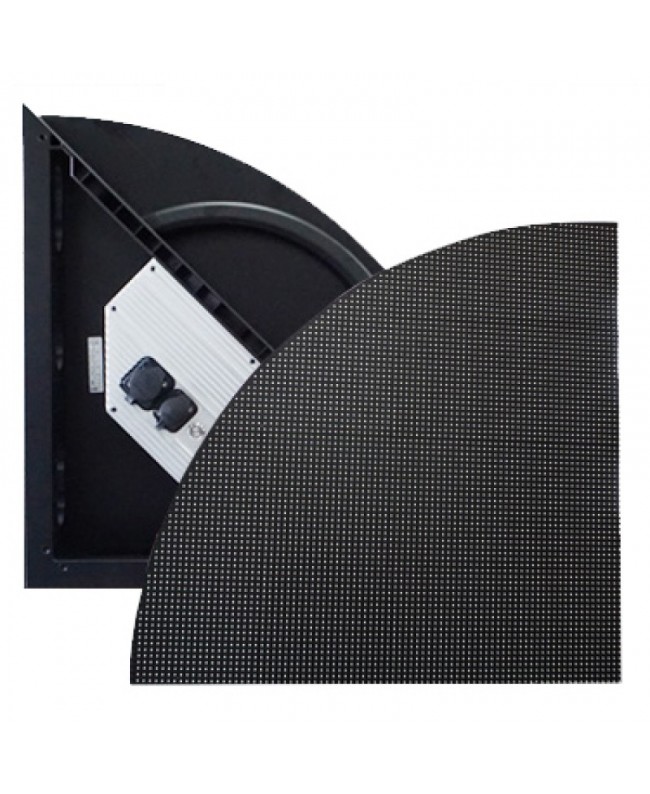

Indoor sector display (P3.9 MG13), 500 x 500 mm, SMD2020 LED. This display can be used with the Magic Stage series to make a variety of creative shapes (e.g. numbers, letters, columns, diamonds, windmills, flowers, hearts, etc.) using the horizontal, vertical and curved connectors.

  • IC MBI5252 Pixel configuration: SMD 3 in 1
  • Supply voltage: AC100~240V / 50Hz-60Hz
  • Brightness adjustment: Brightness of R,G,B 256 colours adjustable by software
  • Gray scale: 64G (under 4096 grade scale)
  • Refresh frequency (HZ): max. 3840Hz with MBI5252 Operating environmental temperature (C°): -20C°+50C°
  • Operating environmental humidity (HR): 10% -90%
  • Average no failure time (hours): 10,000
  • Life-span (hours): 100,000
  • Malfunction dot rate: 0.00003
  • Ingress Protection for front/back: IP50 (P2.84+P3.9 indoor), IP65 (P4.8+P5.9outdoor)
  • Integrated circuits (IC): MBI5252 (MBI5153on P2.84 indoor)
  • Encapsulation: Nationstar (P2.84+P3.9 indoor),Inteled (P4.8+P5.9outdoor)
  • Neutrik Display content: Text, graphics, logo, animation, live video, movie, etc.
  • Communication distance: UTP transmission distance 100m, maximum 130m, (multimode fiber 500m, single mode fiber 150km optional)
  • Connection method: Synchronized with computer; If TV, DVD/VCD player, VCR, etc, a video processor is needed.
  • Certifications: CE, CCC, ISO, TUV, ETL Cabinet Size 500x500mm/cabinet Weight 4.6 kg Screen Pixelpitch 3.9mm Maximum power consumption 480 W/m2 Average power consumption 160 W/m2 Brightness 800-1200 cd/m2 Driving method 1/16 scan Viewing angle 160°/120° Cabinet resolution 32x128 dot LED SMD2020 full black LEDs

YES-P3.9MG13I52

Data sheet

Pixel Pitch
3.9 mm
Giorni di elaborazione
3
