Yes Tech P3.9 MG14 Indoor LED Walls Indoor
  • New

Yes Tech P3.9 MG14 Indoor


€728.00
Tax included

Small triangle display indoor, IC ICN2153, SMD2020, full black LEDs, copper wire, 800 - 1000 nit, max. 3840 Hz, 250 x 500 mm, 2.5 kg


Out of Stock

Free shipping


wishlist

Yes Tech P3.9 MG14 Indoor

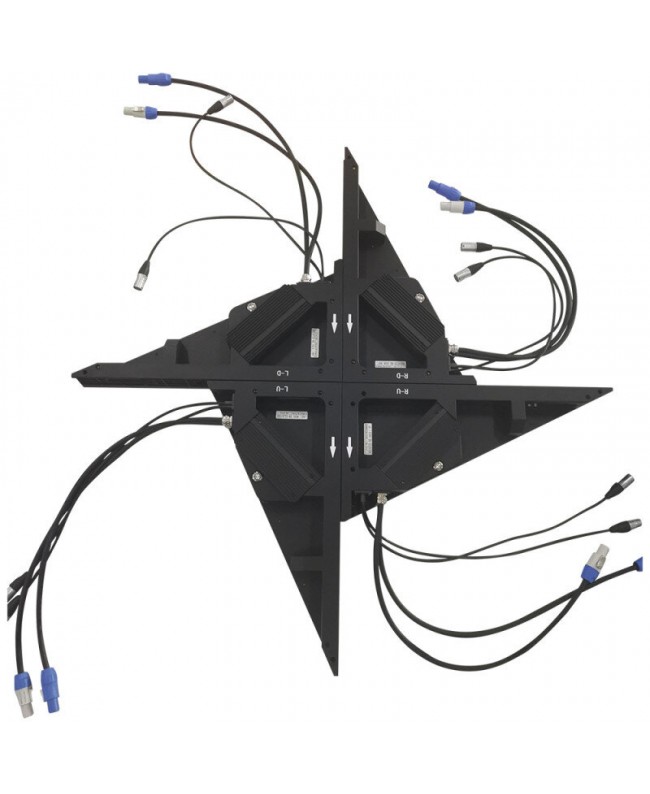

Right triangle shaped LED display (P3.9 MG14 Indoor), 3.9 mm pixel pitch, SMD2020, full black LED, ICN2153, for indoor use (800 - 1000 nits).

It is part of the MG Creative Extension series which includes triangle, rectangle, circular sector etc. This newly updated series will allow you to think and design the stage even more creatively, not only with the arc layout and presentation, but also polygon, sector, etc.

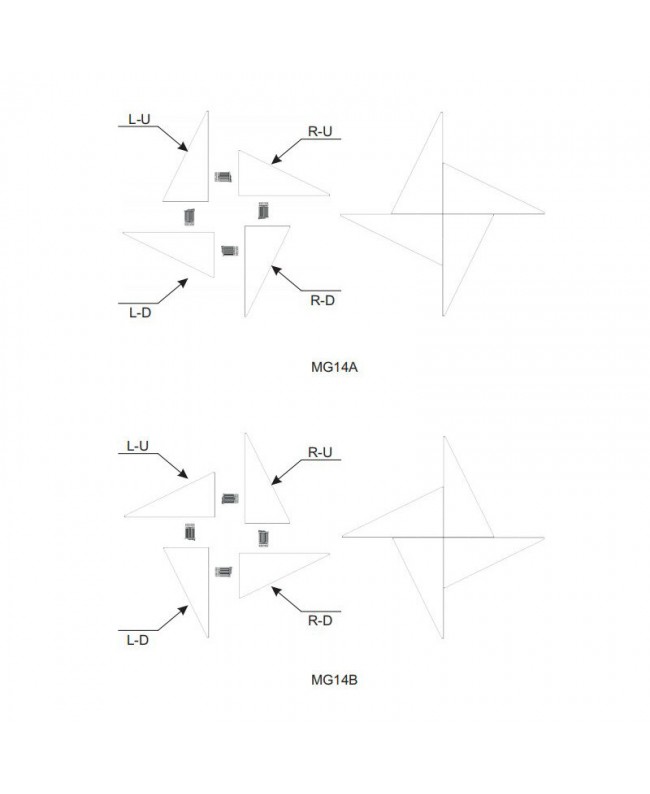

By combining the Magic Stage LED wall modules with the MG Creative Extension which includes right angle (MG11), triangle (MG12), circular sector (MG13) etc. LED displays, you can realize a variety of creative displays of the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart, etc.

  • User benefits
  • Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series
  • Areas of use
  • All those in which the Yes Tech LED displays of the Rental and Staging series are used
  • Module LED encapsulation: 2020
  • Pixel Pitch: 3.9 mm
  • Cabinet Cabinet size: 250 x 500 x 73 mm
  • Cabinet area: 0.0625 m 2
  • Weight: 2.5 kg/cabinet Pixel density 65,536 dot/m 2 IP grade IP50
  • White balance brightness before calibration: 800 - 1000 nit
  • Color temperature: 6500 - 10,000 K adjustable Horizontal viewing angle 160°
  • Vertical viewing angle: 120°

Electrical parameter

  • S Power consumption: 420 / 140 W/m 2
  • Working voltage: 100 - 264 V AC 50/60 Hz
  • Processing performance Driving method constant drive Scanning method: 1/16 s Driving IC ICN2153
  • Refresh frequency: max. 3840 Hz
  • Control system Nova Star Usage parameters Life span: 80,000 h Working / storage temperature -20 to 45 / -30 to 60 ℃ Working / storage humidity 10 - 90 / 10 - 90% RH (no condensation) Communication mode CAT5

YES-P3.9MG14I21

Data sheet

Pixel Pitch
3.9 mm
Giorni di elaborazione
3
