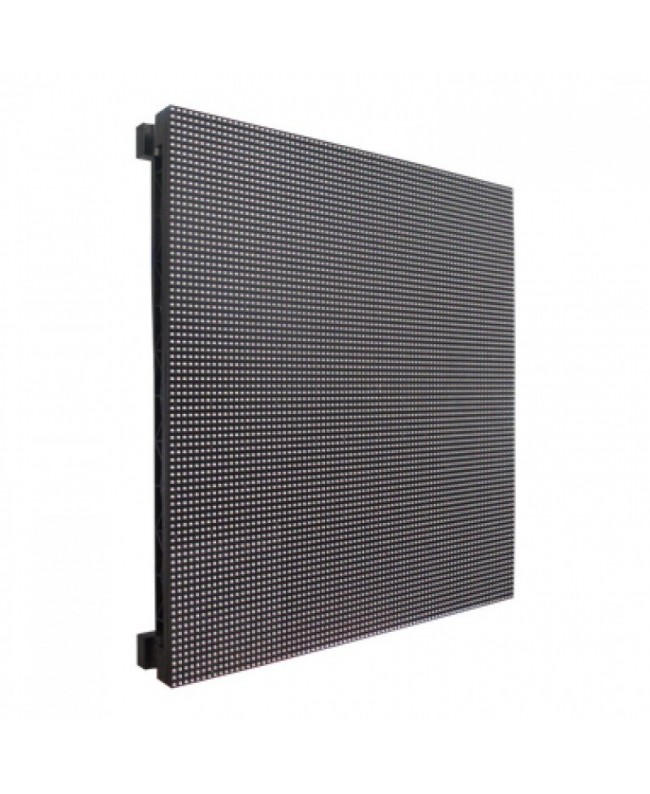

Yes Tech P6.25 MG5 LED Walls Indoor
  • New

Yes Tech P6.25 MG5

€457.00
Tax included

P6.25 MG5 indoor with IC MBI5124, SMD3528 black LED, 800 nit, max. 1920 Hz, 500 x 500 mm, 5.5 kg

Out of Stock

Free shipping

Compare

wishlist

Yes Tech P6.25 MG5



MG5 series 500 x 500 mm P6.25 LED display, SMD3528 black LED with 3-in-1 pixel configuration, Nationstar encapsulation, for indoor applications (800 nits).

It uses MBI5124 IC, software brightness adjustment and ghost image elimination function. The refresh rate is 1920 Hz and the viewing angle is 160° / 120°.

The IP rating is 50 on both the front and rear side.

  • User benefits
  • Software brightness adjustment
  • Ghost elimination function
  • Lightweight cabinet
  • Application areas
  • Large-scale events where viewing distance may be long (concerts, etc.)Indoor sports events
  • Cabinet Size: 500 x 500 x 73 mm
  • Weight: 5.5 kg
  • Screen Pixel pitch: 6.25 mm
  • Refresh frequency: 1920 Hz
  • Maximum power consumption: 480 W/m 2
  • Average power consumption: 160 W/m 2
  • Brightness: 800 cd/m 2
  • Brightness adjustment brightness of RGB: 256 colors adjustable by software Driving method 1/10 scan Viewing angle 160° / 120°
  • Cabinet resolution: 80 x 80 pixel LED SMD3528 black LEDs Operating environmental temperature -20 to 50 °C
  • Operating environmental humidity (HR): 10% - 90% Average no failure time 10,000 hours Life-span 100,000 hours Malfunction dot rate 0.00003
  • Connector Neutrik Communication distance UTP transmission distance: 100 m, maximum 130 m (multi-mode fiber 500 m, single mode-fiber 150 km optional) Connection method synchronized with computer; if TV, DVD / VCD player, VCR, etc is used, a video processor is needed Supply voltage 100 - 240 V AC 50/60 Hz

YES-P6.25MG5I51

Data sheet

Pixel Pitch
6.25 mm
