It is part of the MG Creative Extension series which includes triangle, rectangle, circular sector etc. This newly updated series will allow you to think and design the stage even more creatively, not only with the arc layout and presentation, but also polygon, sector, etc.

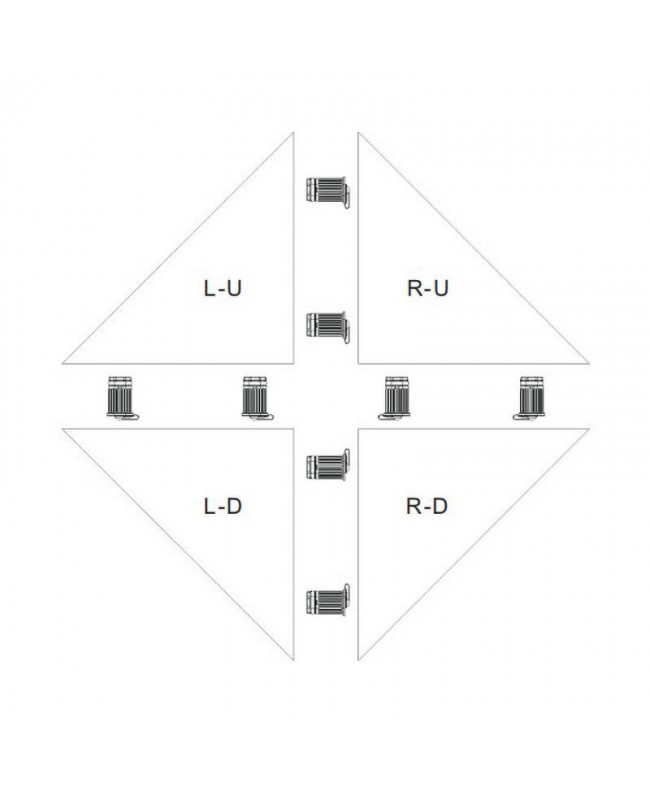

By combining the Magic Stage LED wall modules with the MG Creative Extension which includes right angle (MG11), triangle (MG12), circular sector (MG13) etc. LED displays, you can realize a variety of creative displays of the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart, etc.

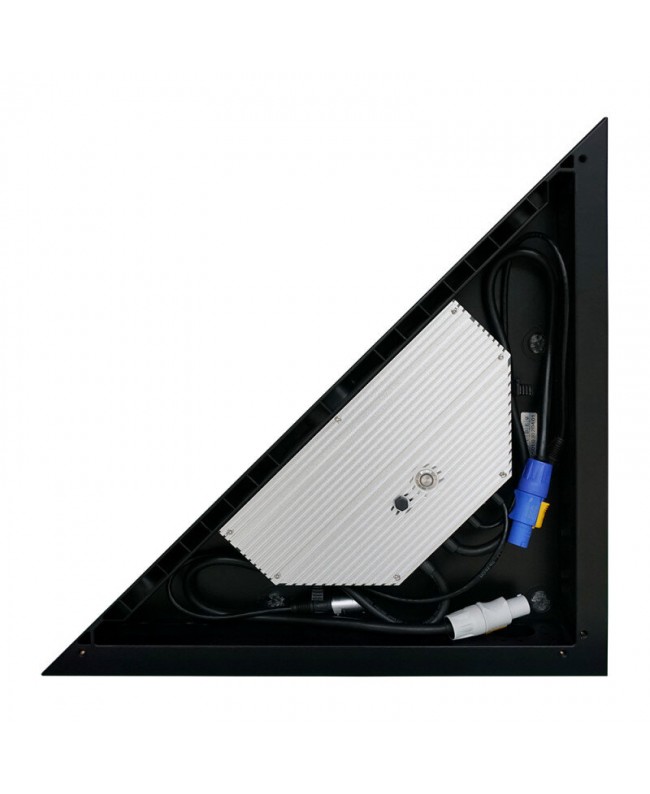

Outdoor triangular display (P3.9 MG12), 707x354 mm, SMD1516 full black LE
Ds.
User benefits
Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series
Areas of use
All those in which the Yes Tech LED displays of the Rental and Staging series are used
Module LED encapsulation: 1515 black shell LEDs Pixel Pitch 3.9 mm
Module size: 707 x 354 mm
Cabinet Module quantity per cabinet: 1
Cabinet size: 707 x 354 x 56 mm
Cabinet area: 0.1251 m 2
Weight: 4 kg/cabinet Pixel density 65,536 dot/m 2 IP grade IP65
White balance brightness before calibration: 5500 - 6000 nit
Color temperature: 6500 - 10,000 K adjustable Horizontal viewing angle 160°
Control system Nova Star Usage parameters Life span: 80,000 h Working / storage temperature -20 to 45 / -30 to 60 ℃ Working / storage humidity 10 - 90 / 10 - 90% RH (no condensation) Communication mode CAT5
