Yes Tech P3.9 RUBIK

Yes Tech Rubik 3.9 is an innovative solution designed to create six-sided LED cubes.

Thanks to the design of the cabinet and modules, featuring magnetic positioning with a retention cable for precise and rapid positioning during installation and easy maintenance, installation is simple and intuitive.

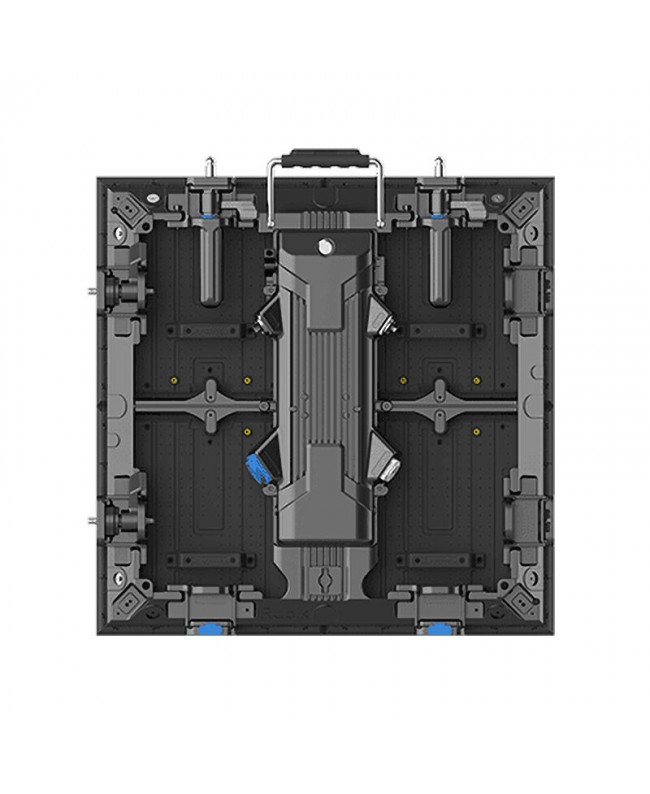

The modular design of the 500 x 500 x 74 mm cabinet, combined with a quick release lever on the control box, facilitates front and rear maintenance. The planned pixel pitches for Rubik are 1.9, 2.6, 3.9 and 4.8 mm for indoor applications, and 2.9 and 3.9 mm for outdoor applications.

The structure is compatible with horizontal installations and 90° splicing, allowing for the construction of perfect cubes and other creative configurations. In addition, the quick locking system allows for safe installation up to 10 meters in height.

The display offers a horizontal and vertical viewing angle of 160° / 160° and adjustable brightness, ensuring optimal visibility. With a refresh rate greater than 3840 Hz, it ensures smooth and flicker-free images. It is CE, FCC and ETL certified, respecting the highest safety and quality standards.

Finally, the Rubik series perfectly matches the MU and MG series of Yes Tech LED panels, both vertically and horizontally, using compatible connectors.

• User benefits
• Quick and easy installation thanks to the modular design, magnetic positioning and quick locking system
• Maintenance from both the front and rear
• Creative flexibility: compatible with 90° splicing and custom configurations, such as LED cubes
• Great visual quality thanks to a refresh rate of over 3840 Hz and adjustable brightness
• Ability to make safe installations up to 10 meters high
• Perfectly matches Yes Tech's MU and MG series with compatible connectors
• The Rubik cabinet can accommodate Rubik and MU series modules with various pixel pitches, reducing procurement, management and storage costs
• Areas of use
• Theatrical performances
• Events
• Advertising
• Art installations
• Theme parks
• Landscaping
• Exhibitions
• Educational and research institutions
• Entertainment venues
