Hikvision Ledwall Lumifit Series - P3.9 OUTDOOR 500X500MM CABINET LED Walls Outdoor
  • New

Hikvision Ledwall Lumifit Series - P3.9 OUTDOOR 500X500MM CABINET

€953.00
Tax included

Ledwall Lumifit Series - P3.9 OUTDOOR500X500MM/CABINET

Out of Stock

Free shipping

Compare

wishlist

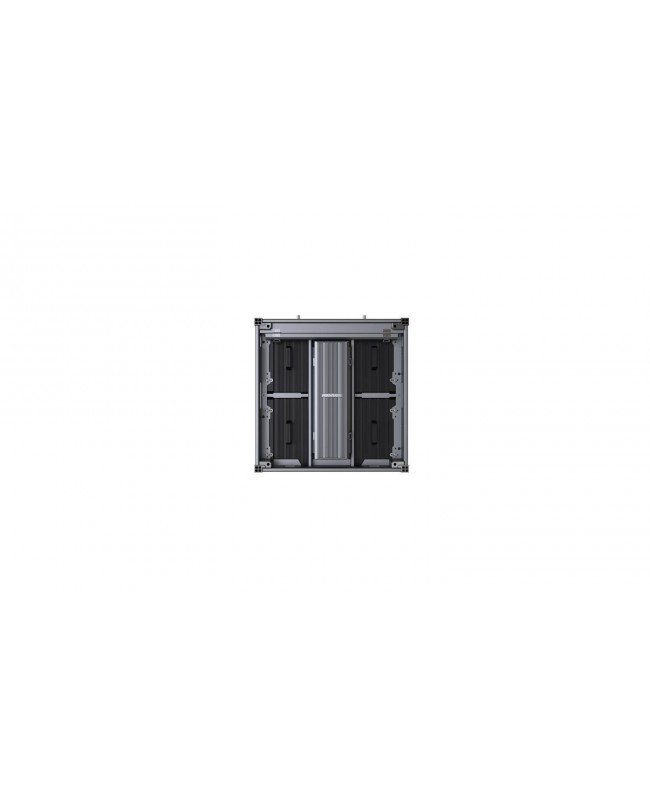

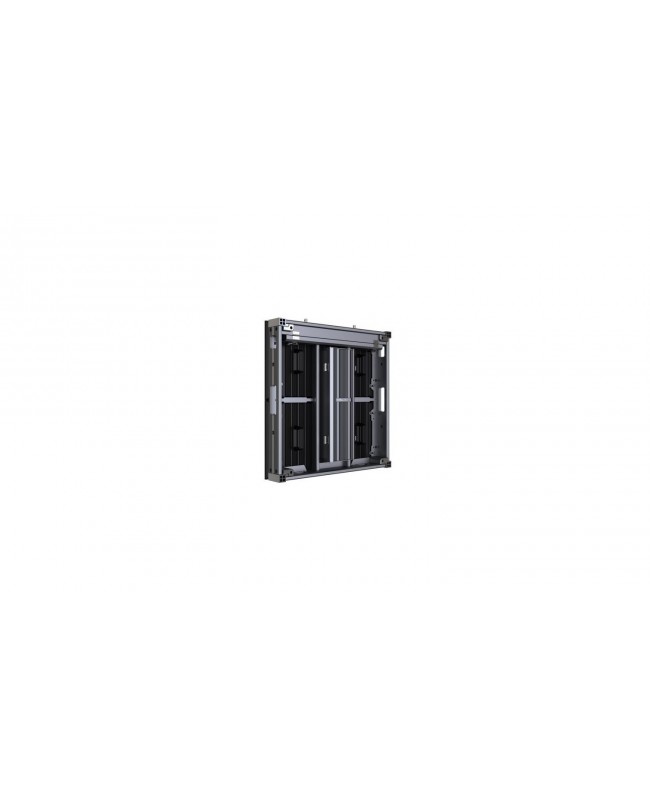

Hikvision Ledwall Lumifit Series - P3.9 OUTDOOR 500X500MM CABINET



P3.9 OUTDOOR LEDWALL DISPLAY UNIT Design with aluminum structure, lightweight box and high flatness. Supports IP66 protection level and two maintenance methods: front and rear.

Aluminum profiles + aluminum shell: All-metal configuration with high heat dissipation efficiency.

Supports automatic dehumidification: Effective lamp protection in humid environments or for prolonged use.

Compatible with wall, floor and other mounting installations.

  • Aircraft connector design: Easy and efficient installation.
  • Soldering Materials: Soldering uses lead-free and non-toxic soldering material, safe for the environment and human body.
  • CABINET Pixel Configuration: SMD
  • Triad LED Pixel Pitch Category: P3.9
  • Pixel Pitch: 3.91 mm
  • Module Composition: 1 x 2 Dimensions (W x H x D): 500 mm x 500 mm x 97 mm
  • Resolution: 128 x 128
  • Area: 0.25 m²
  • Weight: 9.12 kg
  • Pixel Density: 65536 dots/m²
  • Lamp Board Housing: With Housing
  • Cabinet Material: Aluminum profile
  • Maintenance Method: Front and back maintenance
  • Cabinet Flatness: 0.8 mm
  • IP66 Main Material: Encapsulation Lamp 1921
  • Control System: Hikvision DISPLAY
  • Color Temperature: 9300K adjustable
  • Angle of View: Horizontal 160°, Vertical 160°
  • Contrast Ratio: min. 5000:1
  • Color Uniformity: max. +- 0.003
  • PROCESSING Driving Method: Constant Current Driving
  • Frame Rate: 60 Hz
  • Refresh Rate: Up to 3840 Hz
  • Gray Level: Up to 14 bits
  • POWER SUPPLY Power supply: 110~220 VAC +- 15%
  • Maximum Consumption: max. 650 W/㎡ (4500 nits)
  • Average Consumption: max. 210 W/㎡ (4500 nits) ENVIRONMENT
  • WORKING Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~ 140 ℉)
  • Working Humidity: 10% ~ 80%
  • RH Storage Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~ 140 ℉)
  • Storage Humidity: 10% ~ 90%
  • Note: If used in the following scenarios, please contact headquarters for customizations: 1) Near the sea 2) Swimming pools 3) Max. temperatures. -40℃
  • GENERAL Gross Weight: 10.85 kg (1 per box) Packaging Dimensions (W x H x D): 610 mm x 165 mm x 606 mm
  • Lamp Lifespan: 100,000 hours

DS-D4239CD-1AAB

Data sheet

Miscellaneous
Suitable for outdoor use
Pixel Pitch
3.9 mm
