• New

Showtec Helix S5000 Q4


€1,070.00
Tax included

40X 10 W RGBW Outdoor LED Washer (CRMX & WDMX)


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 21/01/2026? Order within 11 hours and 29 minutes

Free shipping


wishlist

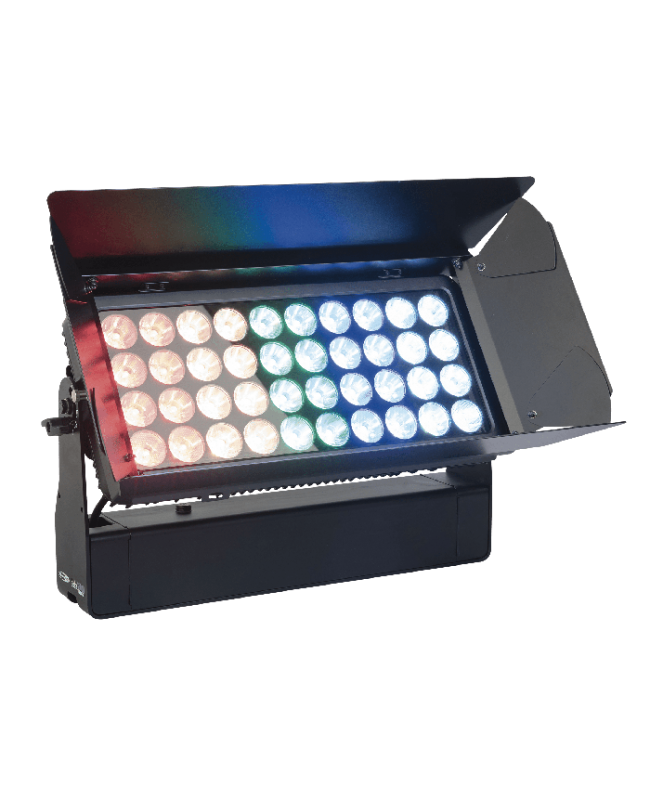

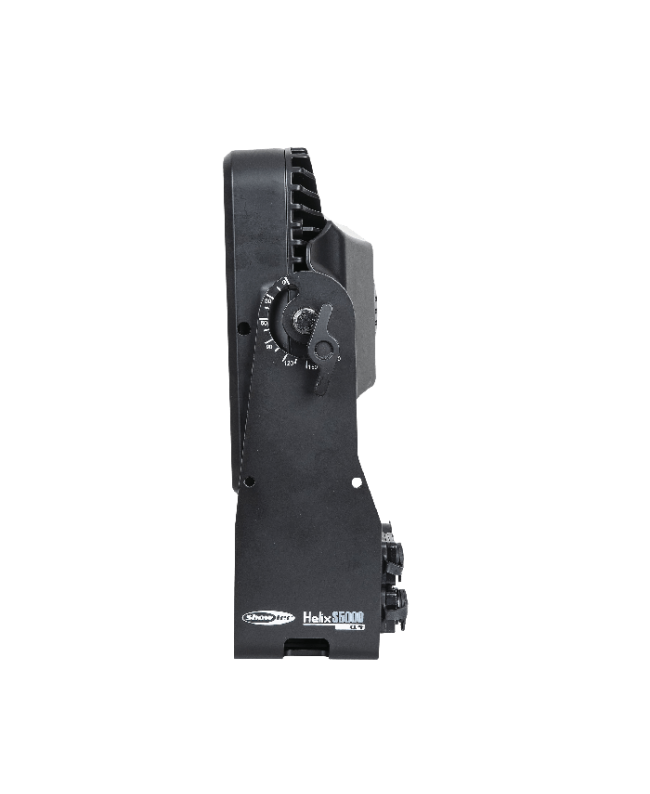

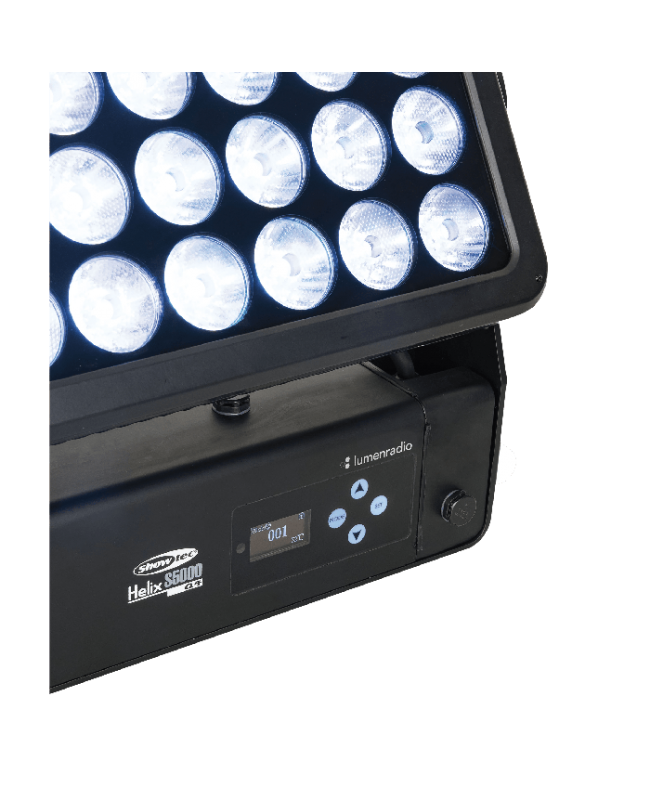

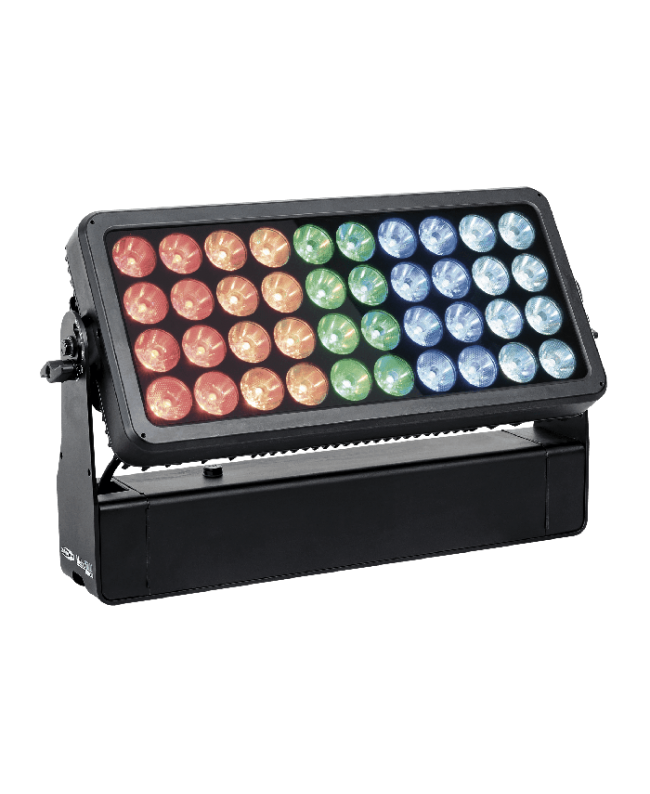

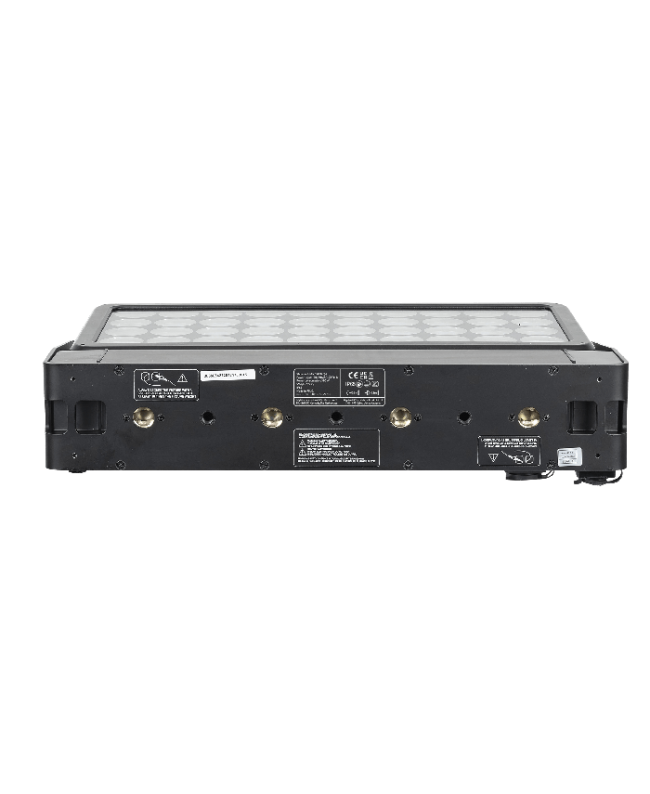

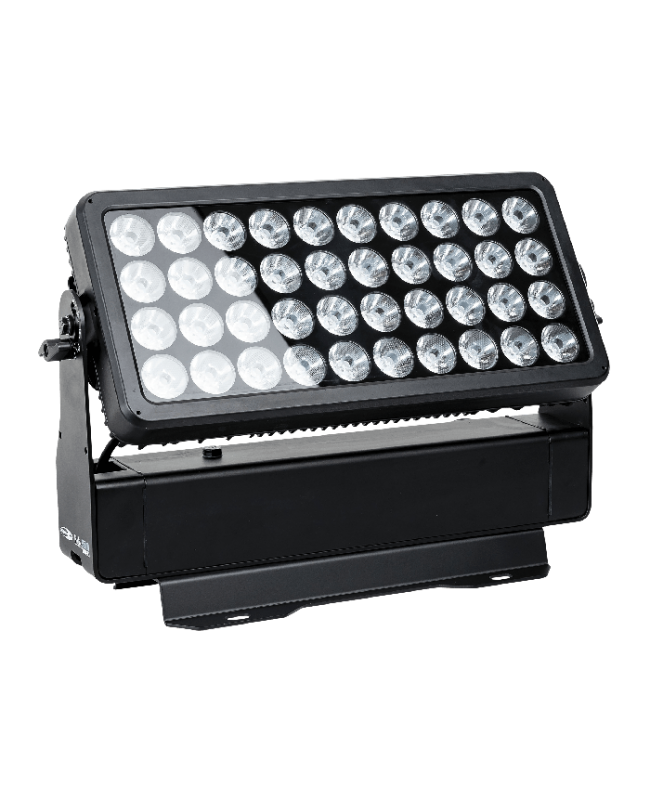

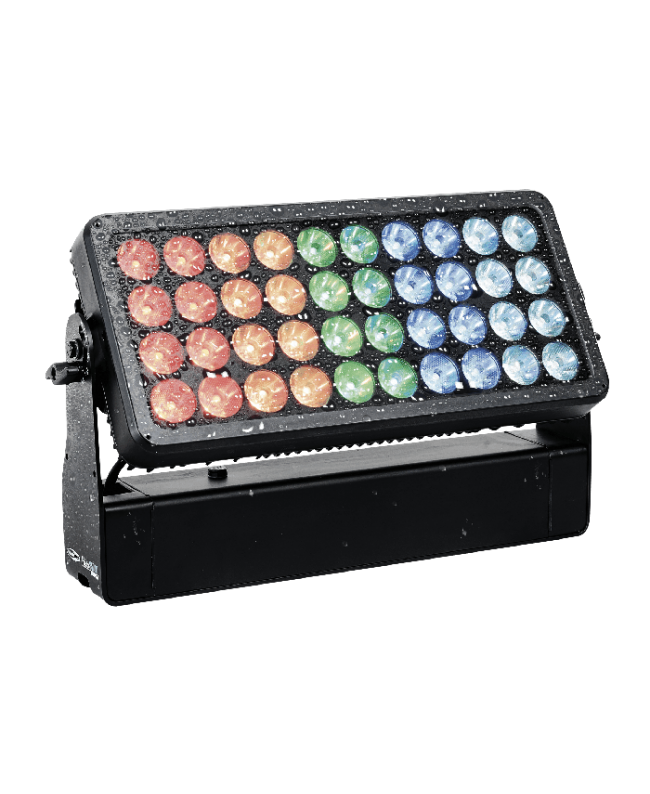

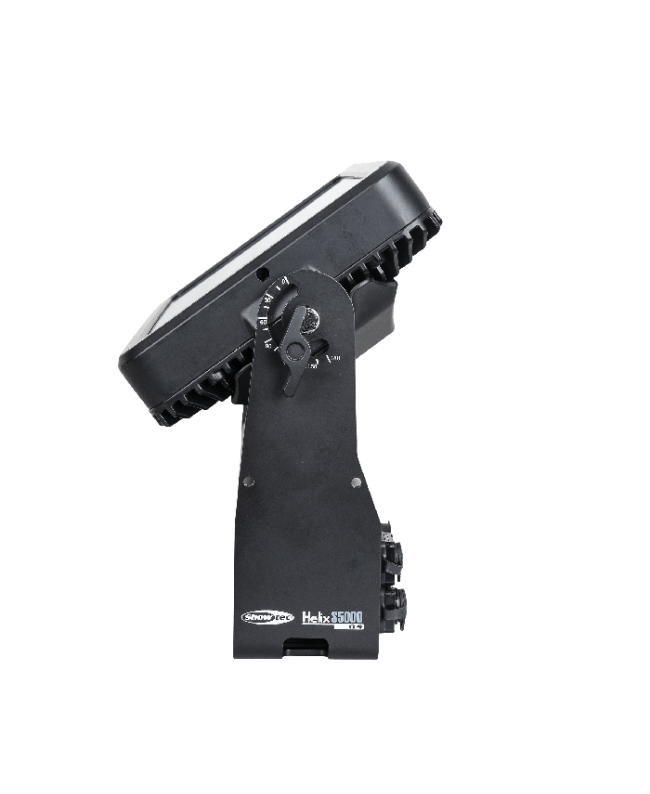

Showtec Helix S5000 Q4



  • 40X 10 W RGBW LED Washer
  • IP65 (dust and water resistant, fit for outdoor use)
  • 10° Beam angle
  • Optional beam shapers for widening beam angle
  • 5-Section control

The Showtec Helix S5000 Q4 is a bright 40x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creating stunning effects. The Wash can be manually flipped 180° and can be controlled via W-DMX (wireless), DMX and Master/Slave in Manual and Auto-run mode with many built-in programs. The wireless connection is compatible with older fixtures using W-DMX, provided that only one mode (G3) is used. The Helix S5000 Q4 comes with a powerCON True 1 cable, mounting panel, rubber feet and Quick-Lock bracket.

  • Source: Light Source Type
  • Light Source Quantity: 40
  • Light Source Power: 10 W
  • LED Colour Type: RGBW
  • Refresh Rate: 3000 Hz
  • Luminous Flux (Total): 14560 Lm
  • Beam Angle (Horizontal): 10 °
  • Beam Angle (Vertical): 10 °
  • Wireless Mode: G3, G4, CRMX
  • Reaction Time: 8 Ms
  • Battery: Battery powered
  • No: Control and Programming
  • Control Mode: Auto, Built-in Program, DMX, Master Slave
  • DMX Channels: 4, 6, 8, 20, 24
  • Protocols: DMX, RDM
  • Wireless: LumenRadio
  • Display: OLED, Touch
  • Fan mode: Yes
  • Dim Curve: Linear, Square, I-Square, S-Curve
  • Dynamic Effects: Dimmer
  • Strobe: 0-20 Hz
  • Power Supply: 100-240 V AC 50/60 Hz
  • Power Consumption: 415 W
  • Power Connector In: PowerCON TRUE1 TOP
  • Power Connector Out: PowerCON TRUE1 TOP
  • DMX Connector: Dedicated 5P IP65 In/Out
  • DMX Connector In: XLR 5P
  • DMX Connector Out: XLR 5P
  • Cable Length: 1.5 m
  • Width (mm): 530 mm (20.866")
  • Height (mm): 330 mm (12.992")
  • Depth (mm): 125 mm (4.921")
  • Weight: 11.5 kg (25.353 lb)
  • IP Rating: IP65
  • Housing: Aluminium die-cast
  • Colour: Black
  • Product Properties: Cooling
  • Convection/Axial fan: Rigging
  • Mounting Options: Baseplate, Clamp, Quick-Lock
  • Safety Attachment: Yes
  • Maximum Ambient Temperature: 40 °C (104 °F)
  • Maximum Surface Temperature: 60 °C (140 °F)
  • Minimum Operating Temperature: 10 °C (14 °F)
  • Included Cables: PowerCON TRUE1 cable
  • Included Accessories: Mounting panel, Rubber feet
  • Included Rigging: Quick-Lock Bracket

43724

Data sheet

Miscellaneous
Suitable for outdoor use
