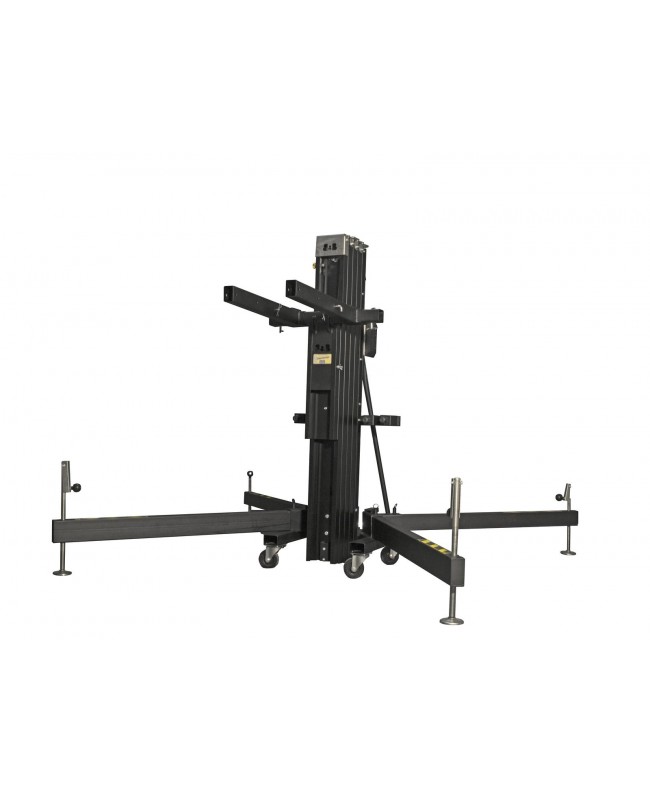

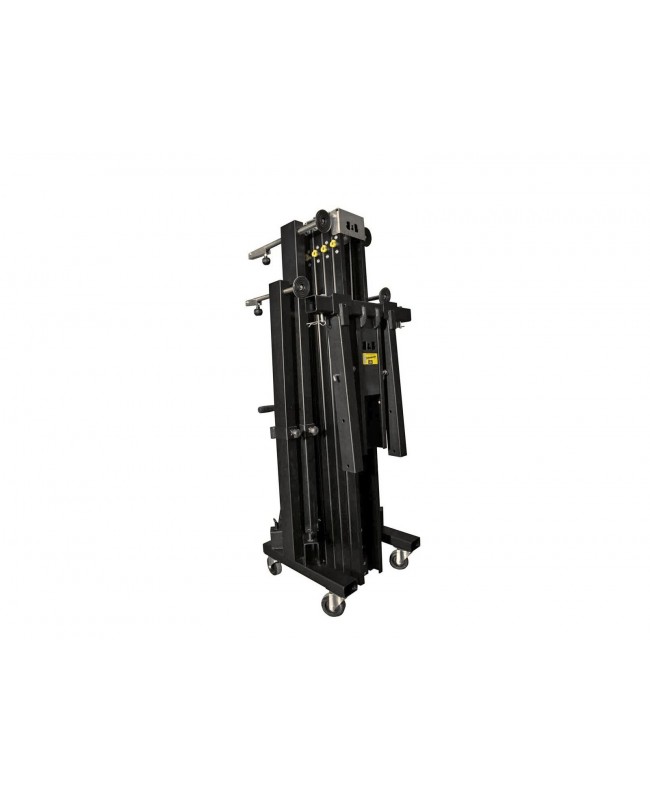

Block And Block GAMMA-30 Truss lifter 300kg 5m

• Five-part telescopic ground support
• Safety bolts to lock the different sections at different heights
• Locking bolts in the base area to lock the booms
• Booms with adjustable spindle and steel plate with non-slip rubber base
• Corrosion protection through epoxy coating
• Water level to ensure a vertical position
• Earthing connection
• Transport rolls to move the lift when retracted
• AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
• Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
• Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
• Adjustable height
• Made in Europe
• With BGV-C1 test certificate
