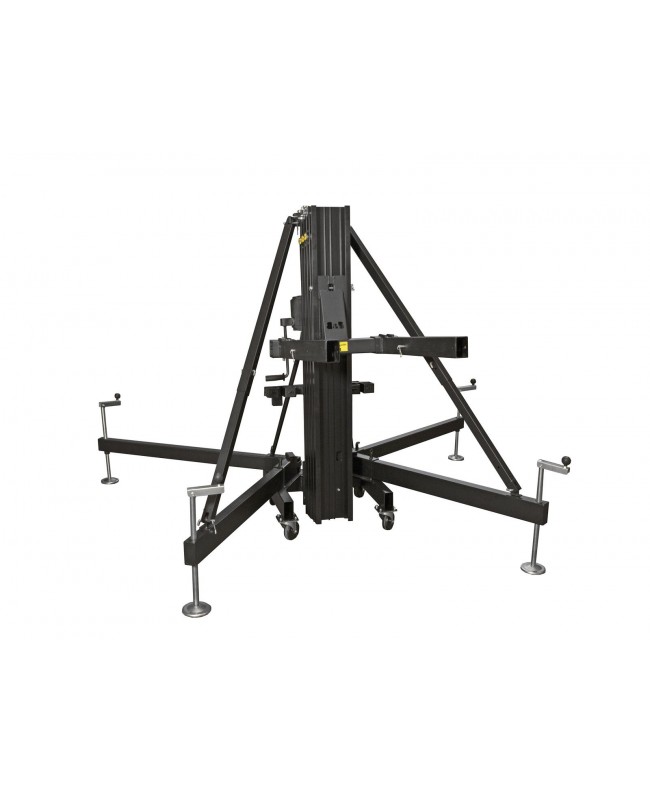

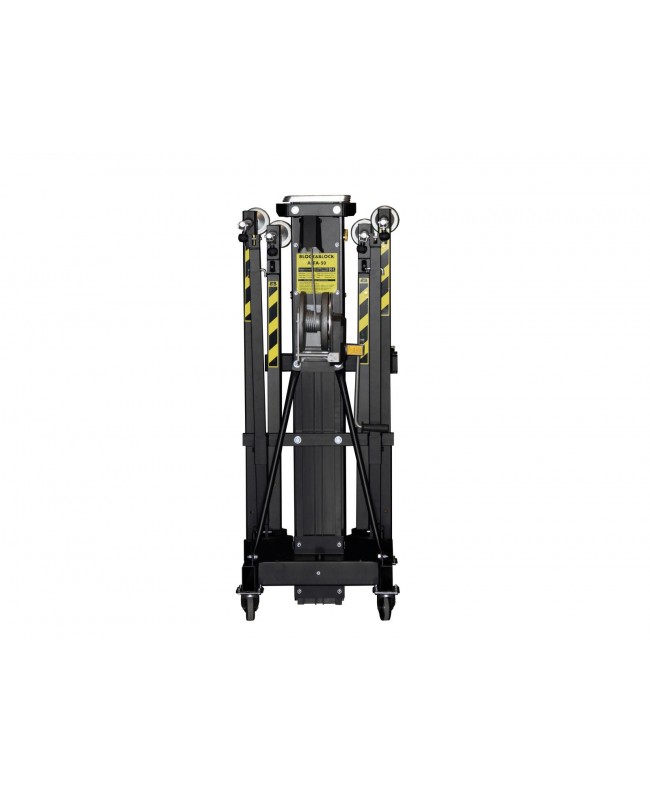

Block And Block ALFA-50 Truss lifter 550kg 5.1m

• Four-part telescopic ground support
• Safety bolts to lock the different sections at different heights
• Locking bolts in the base area to lock the booms
• Booms with adjustable spindle and steel plate with non-slip rubber base
• Corrosion protection through epoxy coating
• Water level to ensure a vertical position
• Earthing connection
• Transport rolls to move the lift when retracted
• AL-KO 1201 PLUS winch: maximum load 1350 kg with automatic holding brake
• Galvanized steel ropes 7x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
• Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
• Complies with DIN EN 13157 and EN 12100 I und II
• Adjustable height

Scope of delivery
