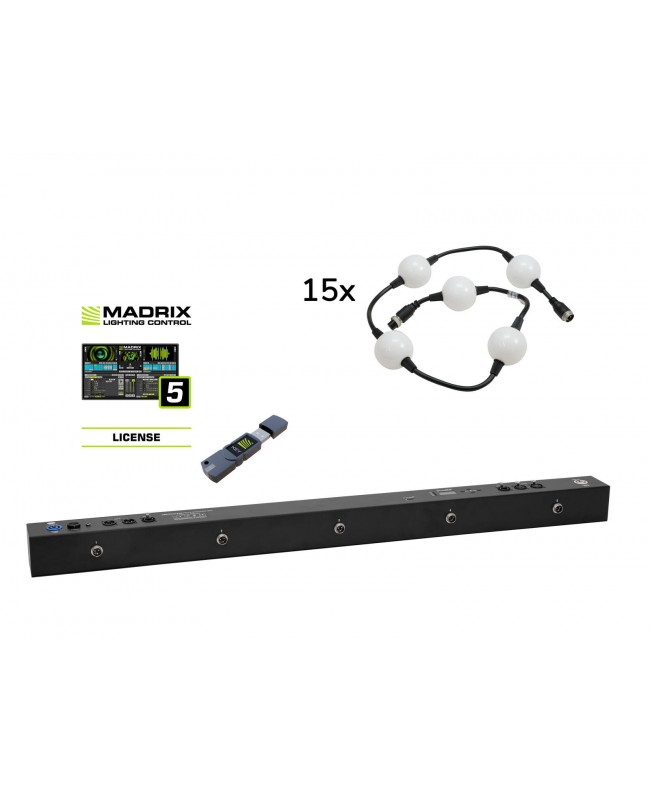

Eurolite Set Pixel Ball 360° incl. Madrix Start
  • New

Eurolite Set Pixel Ball 360° incl. Madrix Start

€1,340.00
Tax included

Flexible LED pixel string

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 04/08/2026? Order within 7 hours and 46 minutes

Free shipping

Compare

wishlist

Eurolite Set Pixel Ball 360° incl. Madrix Start

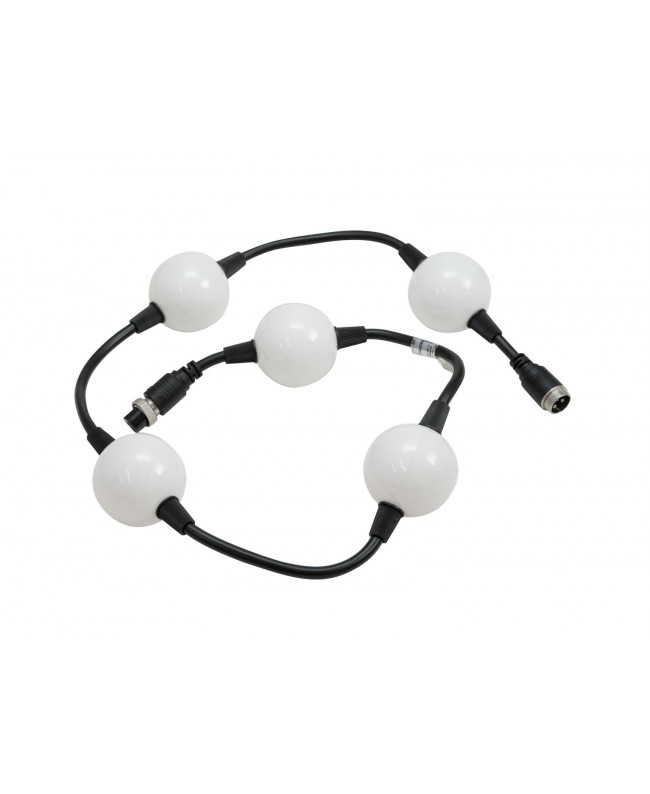

EUROLITE LED Pixel Ball 360° 1m MK2

  • 6 LEDs SMD 3535 3in1 RGB (homogenous color mix)
    5 segments controlled separately
  • With a beam angle of 360°
  • Matrix effect
  • Flicker-free
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; installation; stage; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended

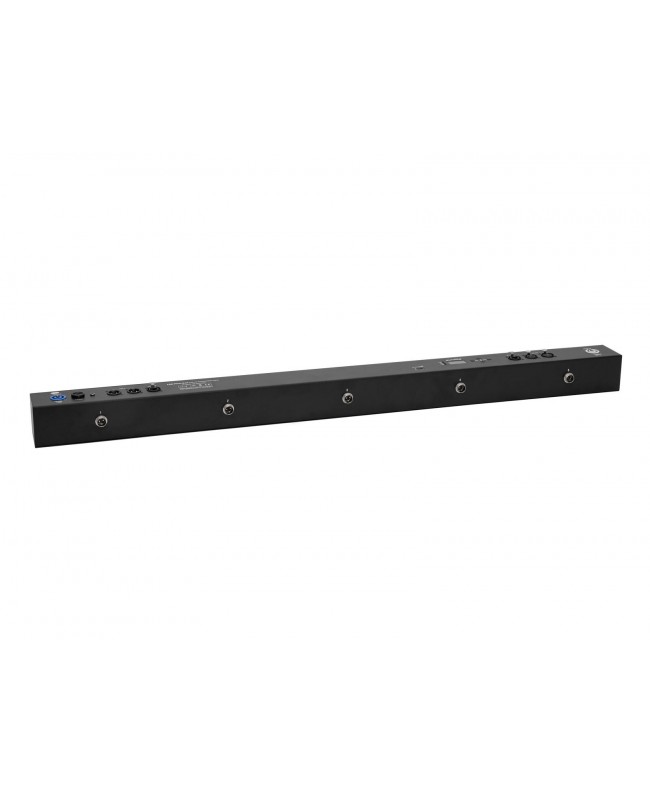

EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

Control unit for EUROLITE LED Pixel Ball 360° 1m MK2

  • Series connection of 6 strings per output possible
  • Up to 150 pixel balls per bar can be controlled
  • 30 integrated show programs
  • Control via stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
  • Monochrome OLED display
  • Mains input and output for power linking up to 8 units
  • Built with SEETRONIC connector
  • Interface
  • The device is cooled by passive convection cooling
  • For application areas such as: Clubs/dancing school; wedding/gala/events; installation; restaurants, bars and hotels
  • Silent operation
  • Application possibility: Suspended; wall mounting
  • Can be operated in 3; 5; 7; 10; 15; 19 CH mode

MADRIX Software 5 License start

MADRIX 5 licence start

  • Includes 1x MADRIX 5 License start
  • Requires a valid, empty, and metallic MADRIX KEY
  • Can transmit up to 1024 DMX channels
  • Compatible with Win 7, Win 8, Win 10,
  • Made in Germany
  • Engineered in Germany
  • For further information about this product, please refer to the Data Sheet under Downloads

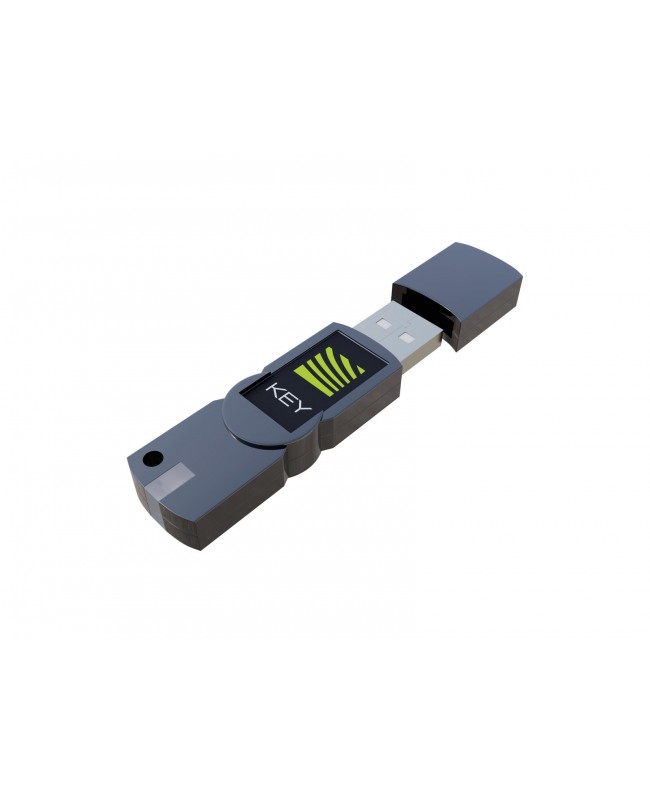

MADRIX KEY

MADRIX 5 KEY - without license

  • Includes an empty MADRIX KEY
  • Requires a proper MADRIX 5 License to activate the features or output for the MADRIX 5 Software
  • The device can be connected via USB to the PC
  • Made in Germany


Scope of delivery

15 x EUROLITE LED Pixel Ball 360° 1m MK2

  • 1 x light effect

1 x EUROLITE LED Pixel Ball PSU-5 ArtNet/DMX MK2

  • 1 x device
  • 1 x user manual
  • 1 x power cord
  • Weight: 6.27 kg
  • Power supply: 24V DC
  • Power consumption: 4 W
  • IP classification: IP4X
  • Protection class: Protection class III
  • Power connection: Fixed power supply cord with special plug
  • Cable length: 0.95 m
  • Lamp type: LED lamp
  • Number of lamps: 5 pieces, 20 cm Distance between the lamps
  • LED type: Each 6 x SMD 3535 3in1 RGB (homogenous color mix)
  • Flash rate: 2 - 20 Hz
  • Cooling: Passive convection cooling
  • Projection: Flicker-free
  • PWM frequency: 3500 Hz
  • Beam angle: 360°
  • Beam angle (1/2 peak): 360°
  • Material: Plastic
  • Dimensions: Length: 95 cm, Diameter: Ø 5.0 cm
  • Weight: 0.17 kg
  • Noise classification: Class 0 (no noise at all)
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 130 W
  • Protection class: Protection class I
  • Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
  • Cable construction: 3 x 1.0 mm² H05VV-F
  • Power output: P-Con (gray), mounting version
  • Fuse: 5 x 20 mm, T 1 A fuse replaceable
  • DMX channels: 3; 5; 7; 10; 15; 19
  • DMX input: 3-pin XLR (M) mounting version, 5-pin XLR (M) mounting version
  • DMX output: 3-pin XLR (F) mounting version, 5-pin XLR (F) mounting version
  • Network connection: Protocol: Art-Net 3 via 2x RJ-45 E-Con (F) mounting version
  • Cooling: Passive convection cooling
  • Control: Stand-alone; DMX; QuickDMX via USB (optional); Art-Net; master/slave function; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); RDM
  • DMX fail mode: Hold; blackout
  • Housing color: Black
  • Display type: Monochrome OLED display
  • USB port: Type A
  • Use of brands: Built with SEETRONIC connector
  • Material: Metal
  • Housing design: Interface
  • Dimensions: Length: 100 cm, Depth: 7.7 cm, Height: 10.7 cm
  • Weight: 3.65 kg
  • Noise classification: Class 0 (no noise at all)
  • DMX channels: Output 1024
  • Weight: 0.00 kg
  • Operating system: Win 7, Win 8, Win 10,
  • Power connection: Mains input via USB A (M) connectable version
  • USB port: Type A
  • PC connect: Via USB
  • Weight: 0.07 kg

20001058

Data sheet

Color
Black
Giorni di elaborazione
4
