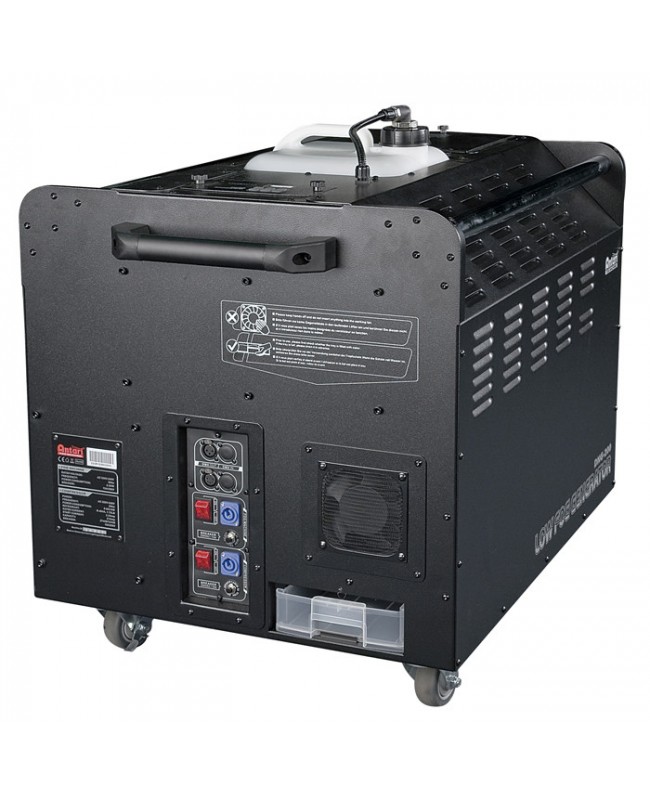

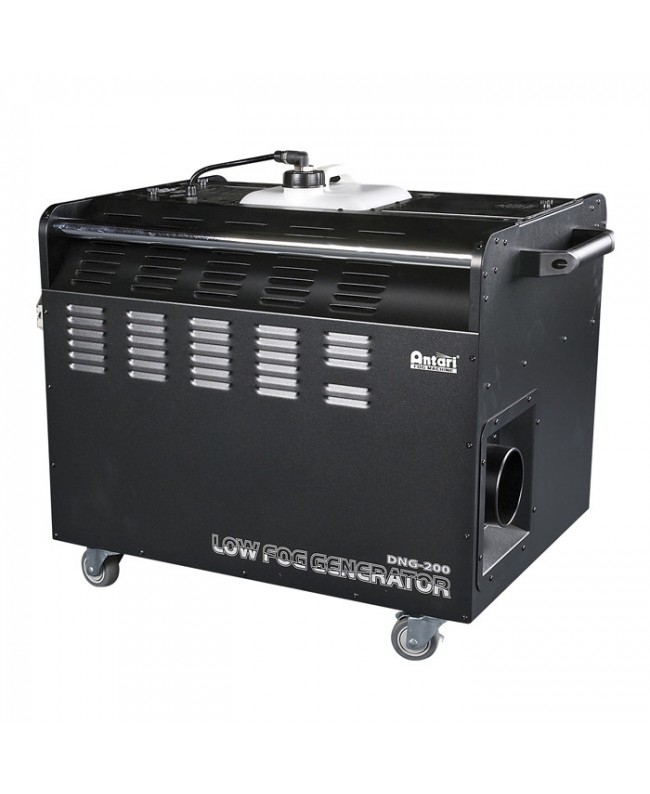

Antari DNG-200 - Low Fog Generator

Electrical Specifications and Connections

• Power Supply 240 VAC 50-60 Hz
• Power Consumption 3200 W

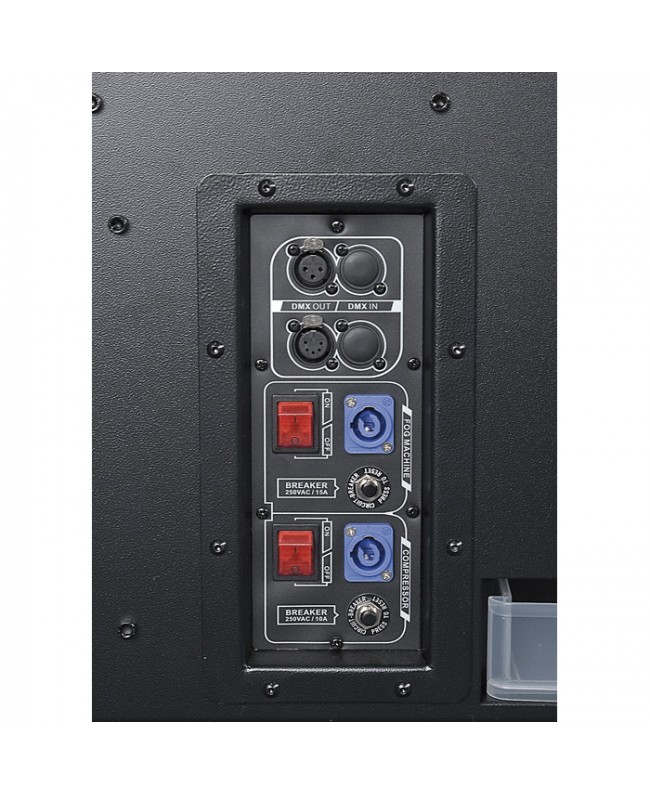

• Power Connector in powerCON Blue
• DMX Connector XLR 3P In/Out, XLR 5P In/Out
• Heater 2500 W
• Warm-up Time 12 min

Mechanical Specifications

• Output Direction Forward
• Housing Metal
• Colour Black
• Fluid Consumption 90.9 ml/min
• Fluid Tank Capacity 10 L
• Length (mm) 780 mm
• Height (mm) 686 mm
• Width (mm) 608 mm
• Weight 120 kg

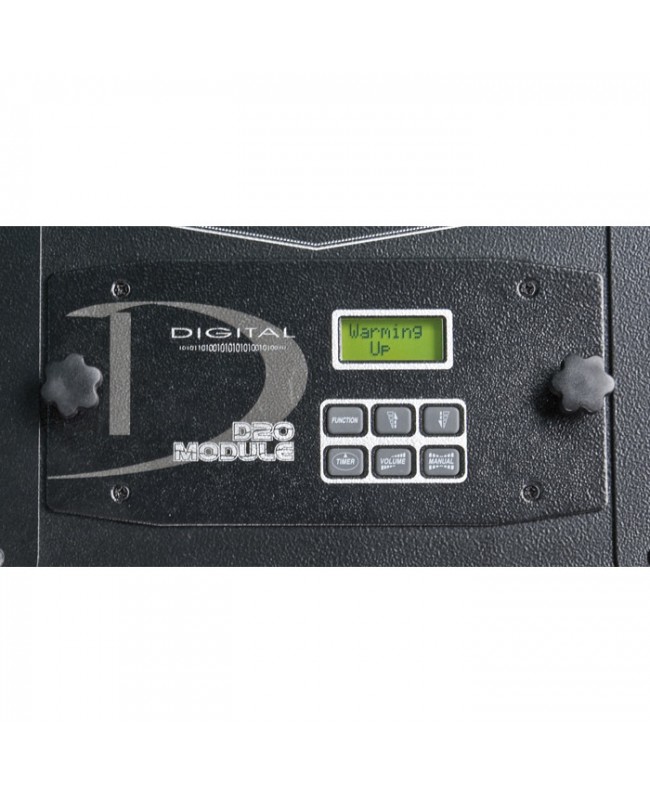

Control and Programming

• Control Mode Remote
• DMX Channels 1

Included Items

• Included Cables
• powerCON cable
• Included Remotes
• Wired
