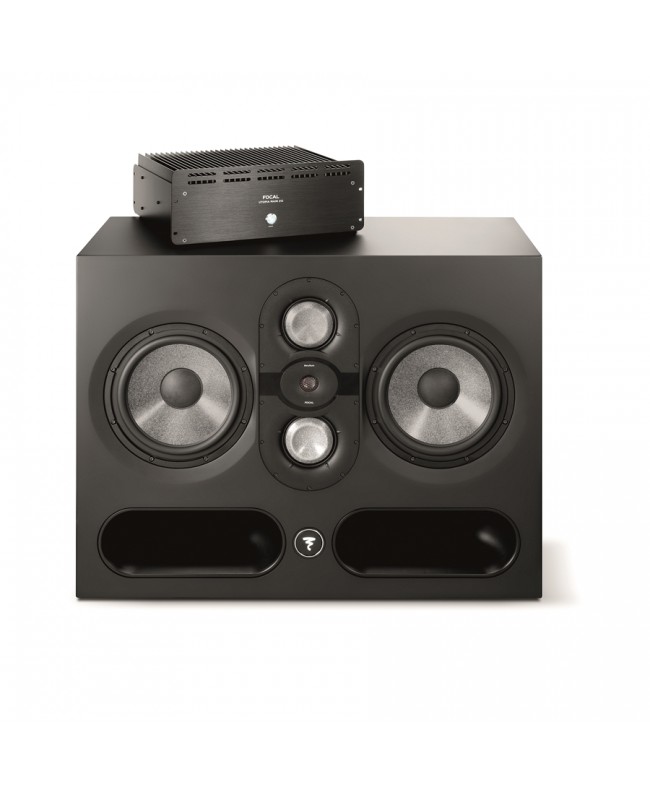

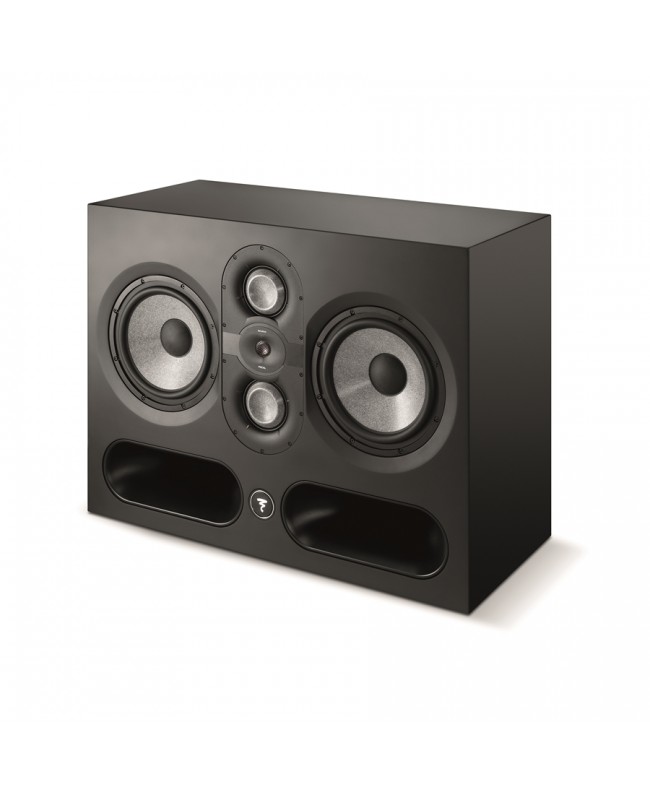

Focal UTOPIA MAIN 212 (coppia)

Amplification in the Utopia Main 212s

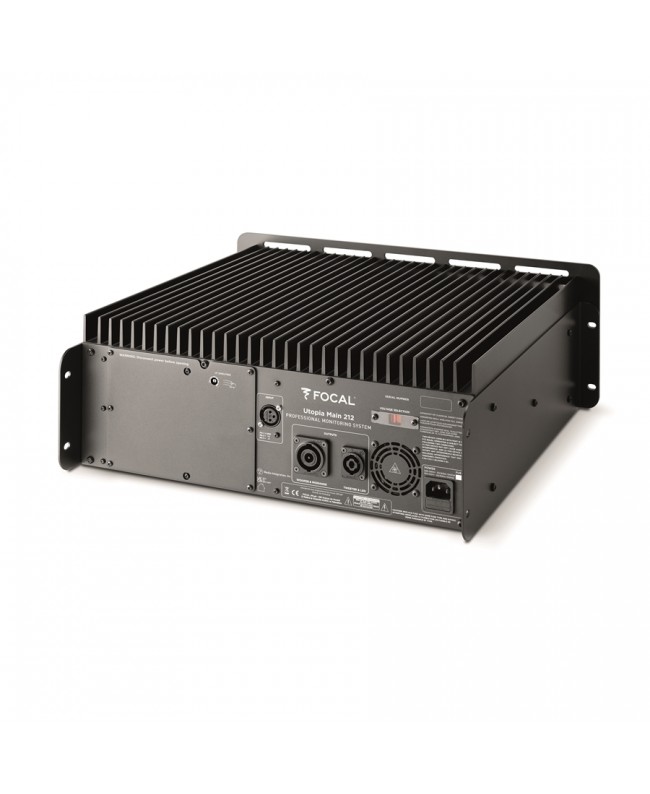

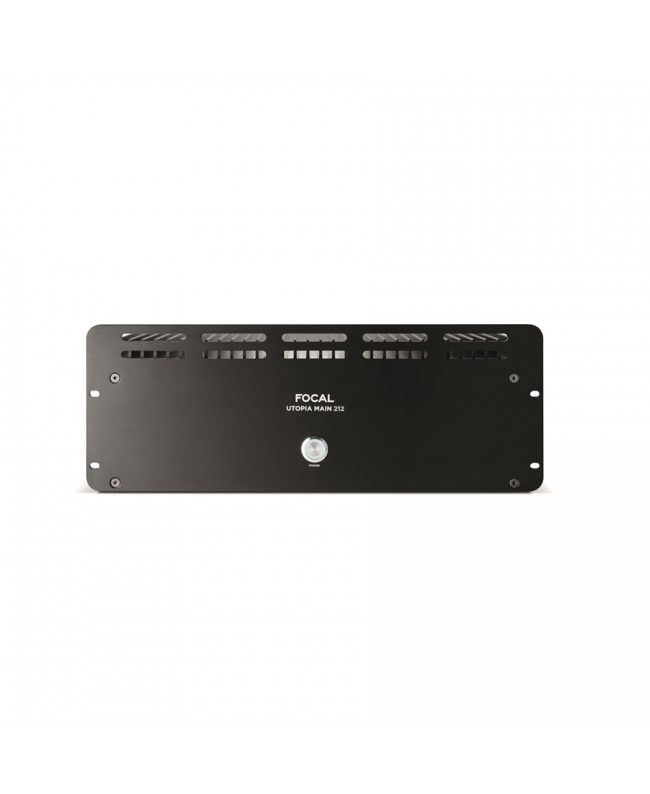

Because main monitors are often ceiling-mounted (soffit-mounted), they require external electronics. These patented, rack-mountable amplifiers on the midrange and treble use a combination of Class H design and current-mode amplification, providing the most natural and transparent amplification possible for a loudspeaker. By controlling current instead of voltage, one can directly adjust the force applied to the diaphragm, eliminating any unwanted artifacts. These amplifiers, combined with analog crossovers, achieve the lowest distortion levels (THD) ever measured in an anechoic chamber.

Adaptable to any type of installation

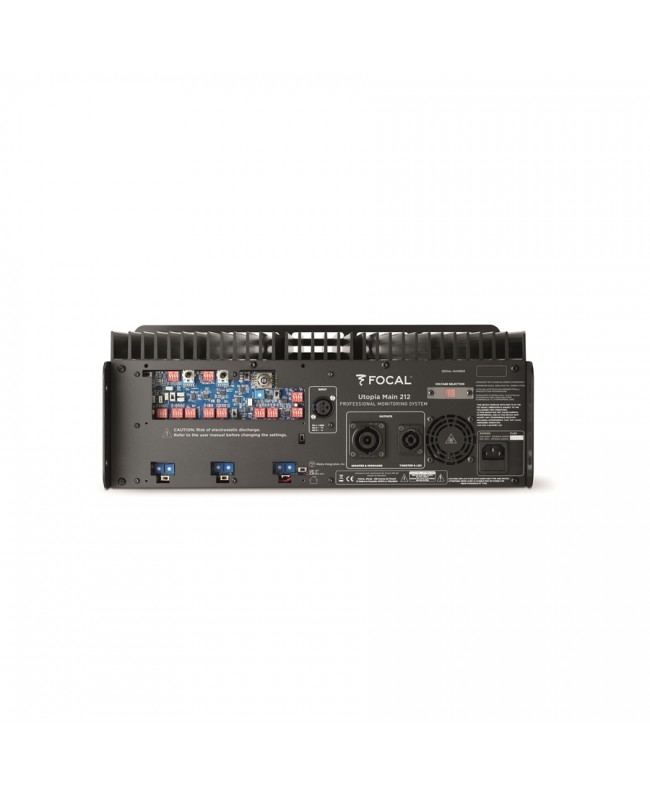

What's more, on-site optimization, necessary to adapt to room acoustics and placement, is applicable via the functions tab accessible in the amplifier. Here you will have 2 parametric equalizers (PEQ from 20 Hz to 1 kHz), volume adjustment for each driver, low-shelf and high-shelf filters, a ceiling mount compensation filter, and another filter that allows adaptation to the possible sealed or open configuration of the SLRs. Other available functions include deactivation of the front LED and standby mode.

FocalUtopia Main 212: the transducers

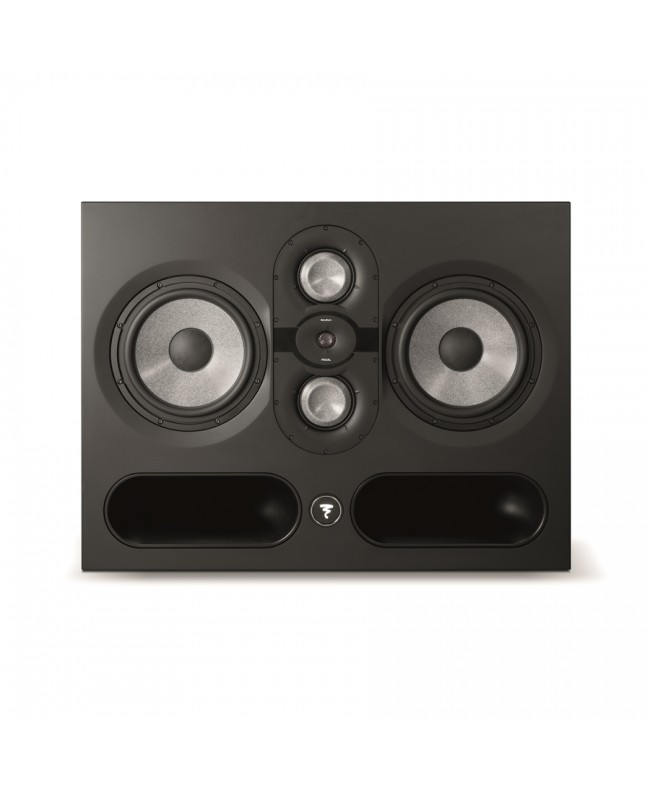

Two 5 midrange drivers with M-shaped W membranes, both amplified by 180W RMS in class H, offer extreme rigidity due to the shape and materials used in their construction. This technology, combined with a powerful magnet, results in a precise, resonance-free midrange with virtually zero distortion, for dynamic performance and transparency that result in extremely accurate sound reproduction.

To enhance rigidity and precision, we find Focal's own Tuned Mass Damper and Infinite Acoustic Loading technologies in the 1.5 M-shaped Beryllium Tweeter for excellent transient response and minimal distortion that greatly reduce acoustic fatigue.

The 2 long-excursion 13-woofer drivers, each amplified by 500W RMS Class D, offer a wide and precise extension in the low frequencies, also supported at the accurate insertion inside a massive, 30mm MDF cabinet with optimized bass-reflex ports. Available port plug accessory: lets you choose between sealed configurations for greater precision or open for more energetic bass.

Robust, optimized cabinet

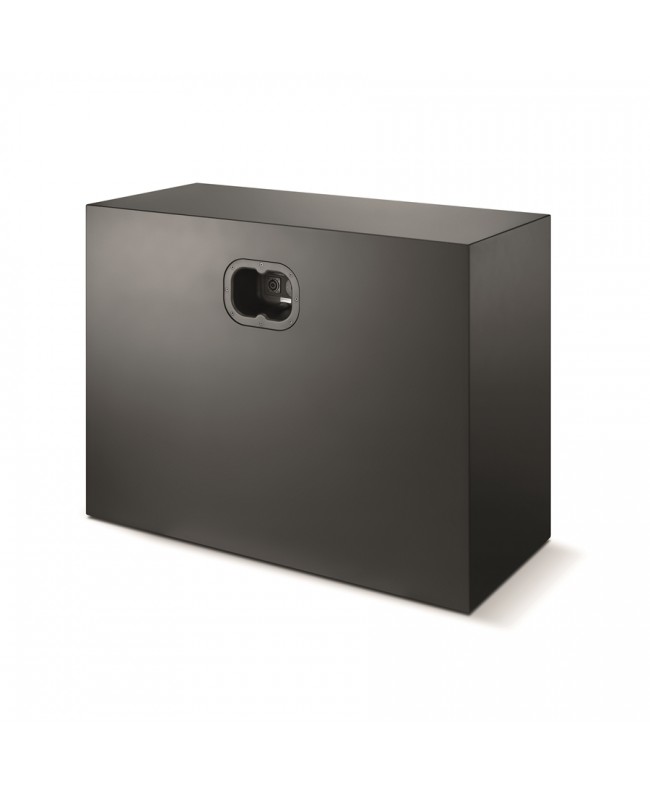

The Utopia Main's massive cabinet is made of 30mm-thick MDF panels, reinforced with an intelligently designed network of supports to eliminate any warping, including quarter-wavelength resonance reduction systems: thus ensuring precision even at the highest SPL levels.
