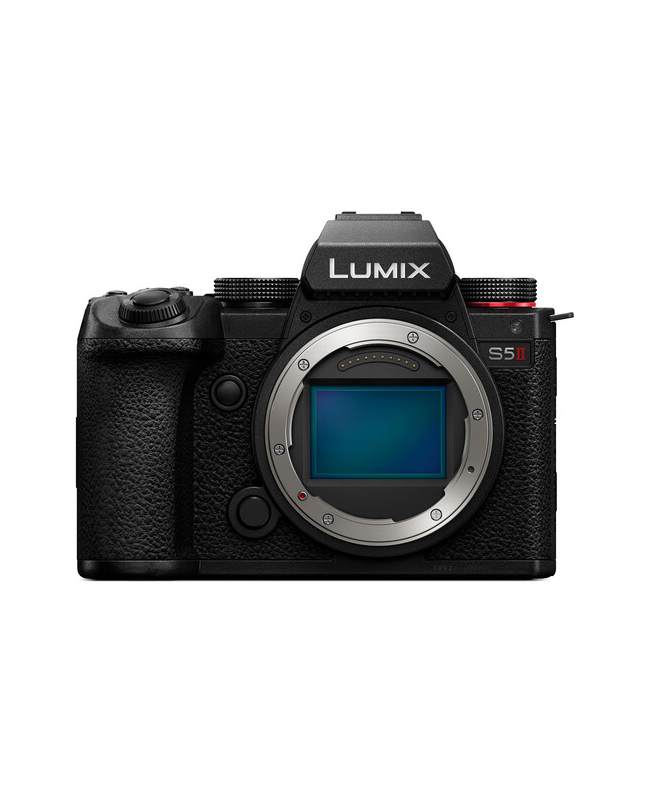

PANASONIC DC-S5M2E

Sensor

• Effective Resolution: 25.28 megapixels
• Effective Resolution: 24.2 Megapixels (6000 x 4000)
• Sensor type: 35.6 x 23.8 mm (Full-Frame) CMOS
• Image stabilization: sensor shift, 5 axes

General

• Lens mount: Leica L
• Built-in ND filter: none
• Type of capture: photo and video
• Type of shutter: electronic shutter, mechanical shutter on the focal plane

Shutter speed

• Mechanical shutter: 1/8000 to 60 seconds - Up to 30 minutes in Bulb mode
• Electronic front curtain shutter: 1/2000 to 60 seconds - Up to 30 minutes in Bulb mode
• Electronic shutter: 1/8000 to 60 seconds - Up to 60 seconds in Bulb mode - Bulb/hour mode: bulb mode, hour mode

ISO sensitivity

Photo/Video

• 100 to 51,200 (extended: 50 to 204,800)
• Metering method: center-weighted average, highlight-weighted average, multiple, spot
• Exposure modes: aperture priority, auto, manual, program, shutter priority
• Exposure compensation: -5 to +5 EV (1/3 EV increments)
• Metering range: 0 to 18 EV
• White balance: 2500 to 10,000 K
• Presets: AWB, Cloudy, Color Temperature, Daylight, Flash, Incandescent, Shade, White Set 1, White Set 2, White Set 3, White Set 4

Continuous shooting

Mechanical shutter

• Up to 9 fps for a maximum of 200 frames (Raw)/300 frames (JPEG)
• Up to 5 fps for a maximum of 200 frames (Raw)/300 frames (JPEG)
• Up to 2 fps for a maximum of 200 frames (Raw)/300 frames (JPEG)

Electronic shutter

• Up to 30 fps for a maximum of 200 frames (Raw)/200 frames (JPEG)
• Up to 9 fps for a maximum of 200 frames (Raw)/300 frames (JPEG)
• Up to 5 fps for a maximum of 200 frames (Raw)/300 frames (JPEG)
• Up to 2 fps for a maximum of 200 frames (Raw)/300 frames (JPEG)
• Interval recording: yes
• Self-timer: 2/10 second delay

Image size

3:2

• 96 MP (12,000 x 8000) *Via Pixel-Shift in the camera
• 96 MP (8496 x 5664) *Pixel-shift in camera
• 24.2 megapixels (6000 x 4000)
• 24.2 megapixels (4272 x 2848)
• 24.2 megapixels (3024 x 2016)

4:3

• 96 MP (10,656 x 8,000) *Through Pixel-Shift in the camera
• 96 MP (7,552 x 5,664) *Through Pixel-Shift in the camera
• 24.2 megapixels (5,328 x 4,000)
• 24.2 megapixels (3,792 x 2,848)
• 24.2 megapixels (2688 x 2016)

16:9

• 96 MP (12,000 x 6736) *Through Pixel-Shift in the camera
• 96 MP (8496 x 4784) *Through Pixel-Shift in the camera
• 24.2 megapixels (6000 x 3368)
• 24.2 megapixels (4272 x 2400)
• 24.2 megapixels (3024 x 1704)

1:1

• 96 MP (8000 x 8000) *Through Pixel-Shift in the camera
• 96 MP (5664 x 5664) *Via Pixel-Shift in the camera
• 24.2 megapixels (4000 x 4000)
• 24.2 megapixels (2848 x 2848)
• 24.2 megapixels (2016 x 2016)

65:24

• 24.2 megapixels (6000 x 2208)

2:1

• 24.2 megapixels (6000 x 3000)

• Aspect ratio: 1:1, 2:1, 3:2, 4:3, 16:9, 65:24
• Image file format: JPEG, Raw
• Bit depth: 14 bit

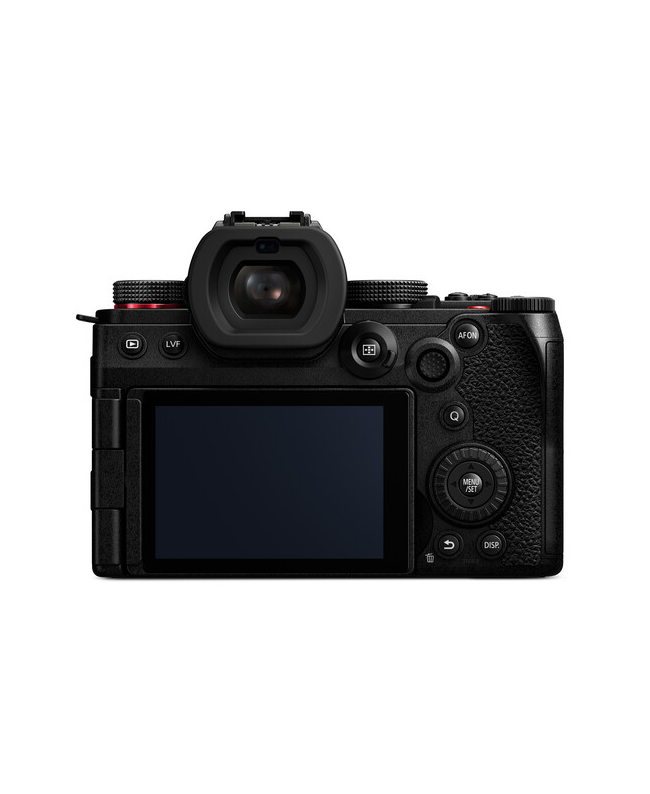

Monitor

• Size: 3"
• Resolution: 1,840,000 dots

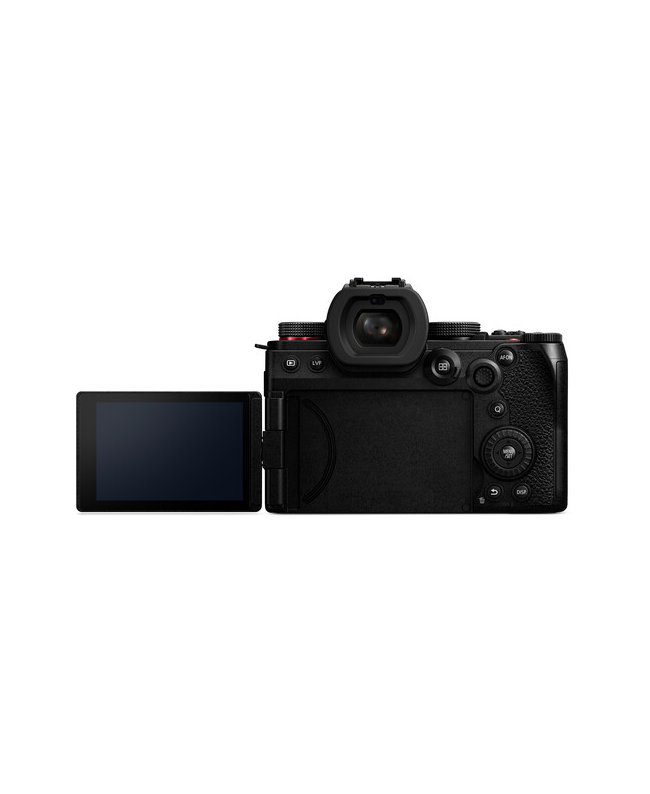

• Display type: Free-angle tilting LCD touchscreen

Viewfinder

• Type: Built-in electronic (OLED)
• Resolution: 3,680,000 dots
• Eye point: 21 mm
• Coverage: 100%
• Magnification: approx. 0.78x
• Diopter adjustment: -4 to +2

Focus

• Focus type: auto and manual focus
• Focus modes: continuous AF, manual focus, single AF
• Auto focus points:

Photo, video

• Contrast detection, phase detection: 779
• Autofocus sensitivity: -6 to +18 EV

Flash

• Built-in flash: No
• Flash mode: Auto, Auto/Red-eye reduction, Always on, Always on/Red-eye reduction, Slow Sync, Slow Sync/Red-eye reduction
• Maximum synchronization speed: 1/250 of a second
• Flash compensation: from -3 to +3 EV (increments of 1/3 EV)
• Dedicated flash system: TTL
• External Flash Connection: Hot Shoe

Environmental

• Operating temperature: from 0 to 40°C / from 32 to 104°F
• Operating humidity: 10 to 80%
