Palmer MONICON M G2 G Monitor Controller
  • -9%

Palmer MONICON M G2 G

€82.00
€74.50 -9%
Tax included
Lowest price within the last 30 days: €74.50

Passive Studio Volume Controller

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 18/03/2026? Order within 3 hours and 23 minutes

Compare

wishlist

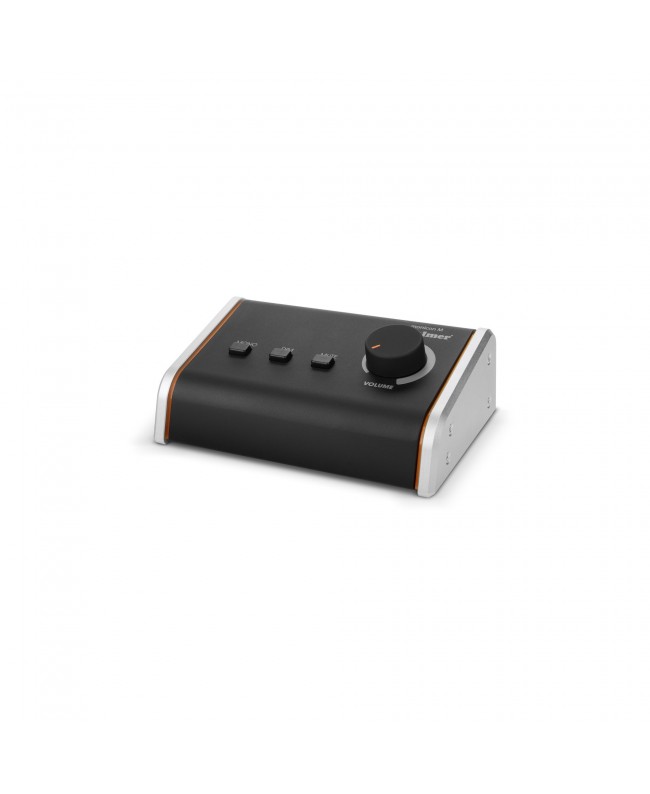

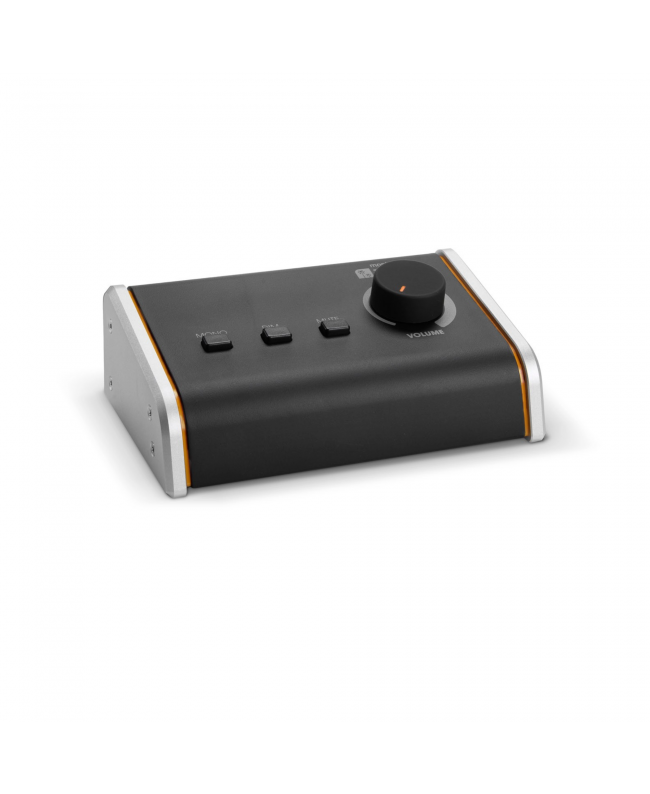

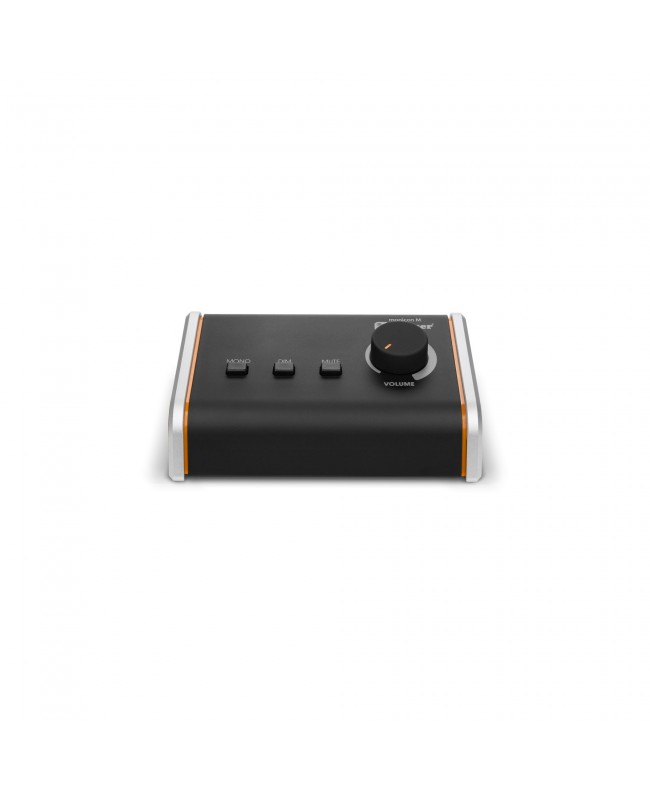

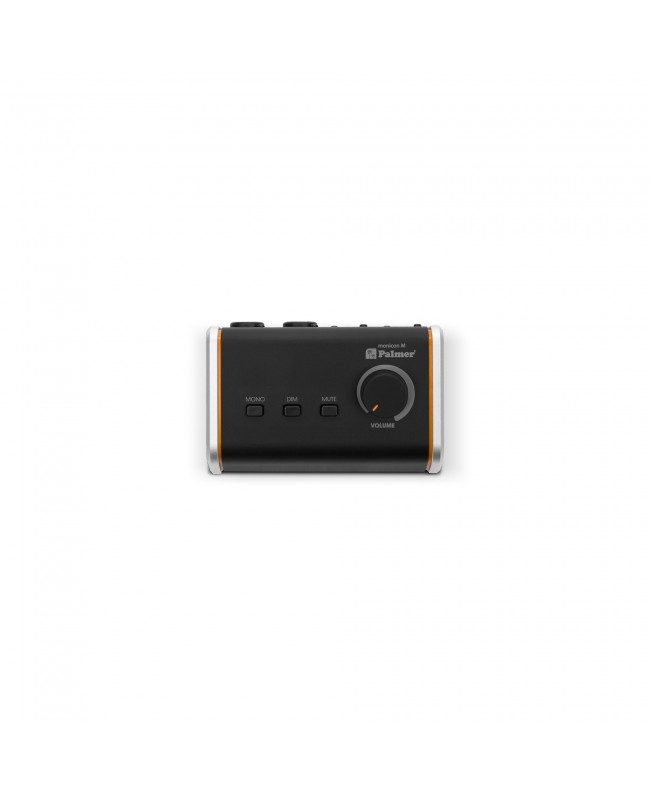

Palmer MONICON M G2 G



The MONICON M is a compact passive volume controller for flexible studio set-ups. It can be easily connected to audio interfaces, computers, or mobile devices, either via balanced XLR/TRS combo sockets or a 3.5 mm jack input. The output, which is either balanced via XLR or 3.5 mm jack sockets, helps supports both professional studio monitors and compact loudspeaker systems.

The large analogue volume control makes it possible to precisely control the level of volume without any loss in quality. The signal flow and monitoring situation can be adjusted quickly and intuitively using the Mono, Dim, and Mute buttons.

Thanks to the completely analogue signal path, the sound remains unaltered and latency-free. The MONICON M is the perfect control centre for project studios, editing suites, and multimedia workstations - wherever direct access and precise control are required.

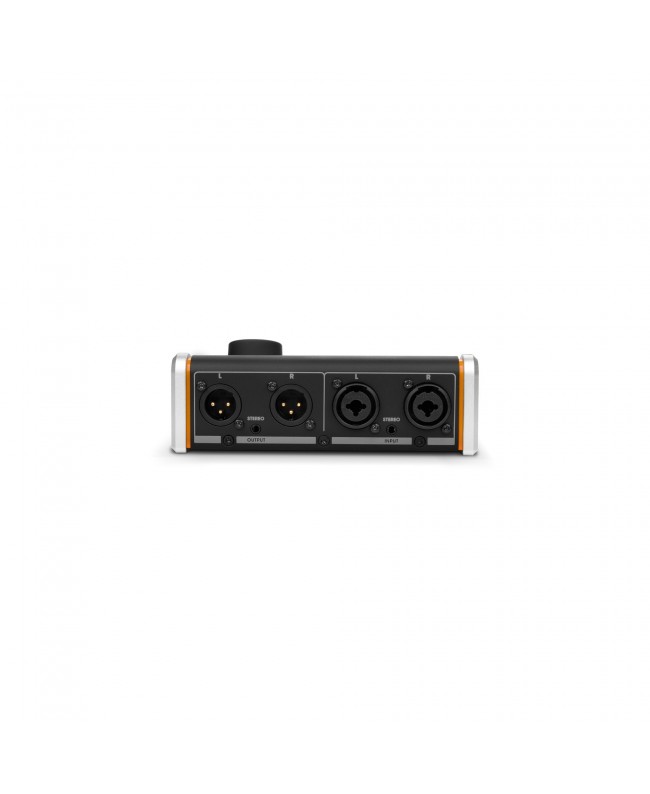

  • Input: 1x Stereo (balanced XLR/TRS Combo and 3.5 mm jack)
  • Output: 1x Stereo (balanced XLR and 3.5 mm jack)
  • Large precision volume control
  • Dedicated switches for MONO, DIM and MUTE
  • Compact format for project studios and multimedia setups
  • Latency-free analogue audio signal path
  • Engineered in Germany

Specifications

General

  • Type Passive
  • Material Metal, plastic
  • Frequency response (±0.2 dB, rel. Avg) 20 - 20,000 Hz
  • Color Black

Bluetooth

  • Bluetooth® version
  • Bluetooth® 5.3
  • Features
  • Audio streaming (A2DP)
  • Supported audio codecs
  • SBC, aptX™, aptX™ HD

Inputs

  • Input signal type Balanced and unbalanced (parallel)
  • Number of balanced line inputs 2
  • Connector type Balanced line-in XLR combo socket
  • Number of unbalanced line inputs 2
  • Unbalanced line-in connector type 2 x RCA female (stereo)

Line input performance

  • Nominal input clipping, unbalanced (< 1% THD, 1 kHz, unity) 15 dBu
  • Nominal input clipping, balanced (< 1% THD, 1 kHz, unity) 20 dBu
  • Input impedance (balanced) 20 kΩ
  • Input impedance (unbalanced) 10 kΩ
  • THD+N ≤ 0.001 % (+4 dBu)
  • Min. CMRR (0 dB below clip, 1 kHz, unity) 55 dB
  • Min. SNR (< 1% THD, 1 kHz, unity, A-weighted) 112 dB

Outputs

  • Output signal type Headphones, Balanced
  • Number of balanced line outputs 5
  • Balanced line outputs connector type XLR 3-pole male
  • Headphone output connector type 2
  • Headphone out connector type 6.3 mm Jack TRS female
  • Minimum headphone impedance 10 Ω
  • Max. headphone output power 100 mW

Line output performance

  • Maximum output level (<1 % THD, 20 Hz - 20 kHz) 20 dBu
  • Balanced output impedance (1 kHz) 600 Ω
  • Signal-to-noise ratio SNR (AES17) > 115 dB

Mains operation

  • Power supply
  • External switching power supply (SMPS)

Environment

  • Ambient temperature 0 - 40 °C
  • Maximum air humidity (non-condensing) 80 %

Dimensions and weight

  • Width 218 mm
  • Height 76 mm
  • Depth 124 mm
  • Weight 910 g
  • Crosstalk -79 dB

PMONICONMG2G

Data sheet

Color
Silber
