Relacart PM-320T In-Ear Stereo Transmitter 626-668 MHz

€256.00
Tax included

In-ear stereo wireless transmitter with pilot tone technology (PLL)

Qty

Available upon request

Free shipping

Compare

wishlist

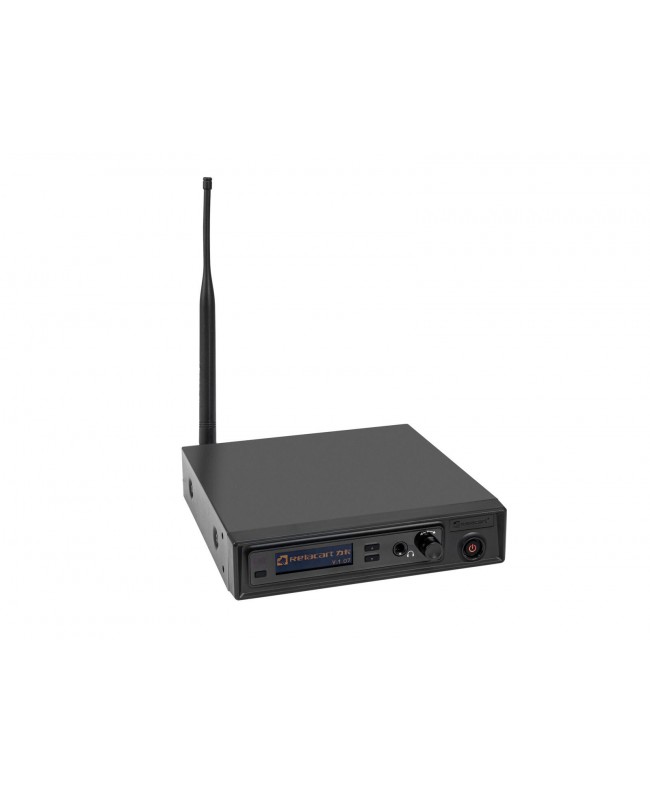

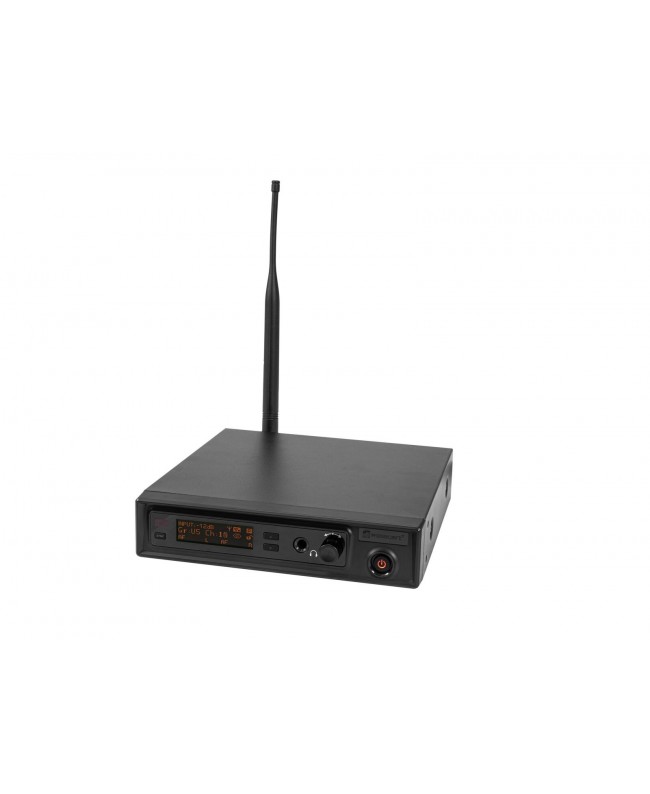

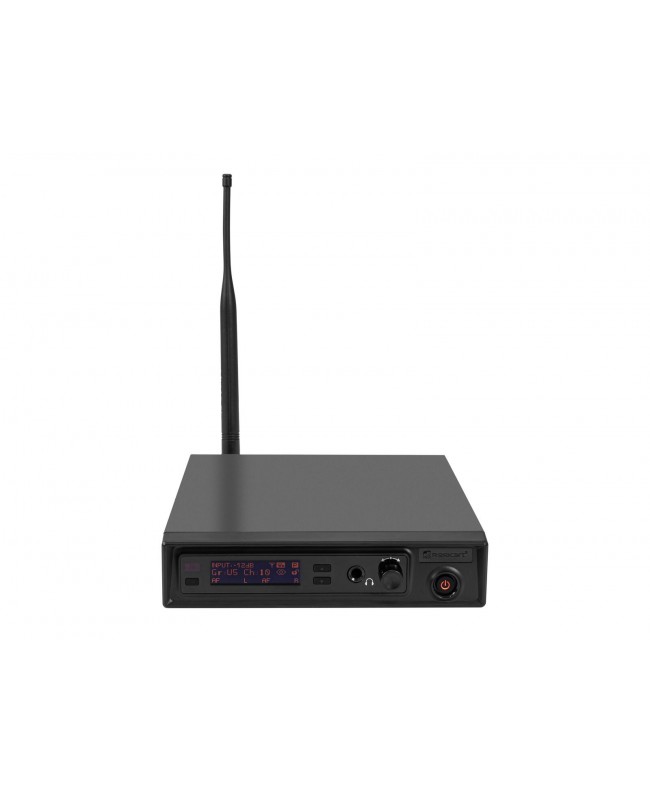

Relacart PM-320T In-Ear Stereo Transmitter 626-668 MHz



The PM-320 is a wireless in-ear monitoring system delivering outstanding sound for live performances, theater and voice applications. Diversity technology guarantees optimum reception quality without interference or dropouts. The system can be operated in mono and stereo mode. The bodypack receiver is 100 g light and offers perfect wearing comfort.

Scope of delivery

  • Wireless stereo transmitter wiht 317 preset channels and 5 user-defined channels for in-ear monitoring
  • Pilot frequency squelch technology delete wireless RF interference
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • Stereo or mono/mix mode
  • Lock function for prevents undesired changes to settings
  • RF output power Hi/Low adjustable
  • 2 line inputs via balanced combo mounting jacks XLR/6.3 mm
  • 2 feed-through outputs (loop)
  • Adjustable headphones output
  • Operating range up to 100m with line-of-sight
  • OLED display
  • Desktop console housing
  • (19) 48.3 cm rack installation possible 1 U

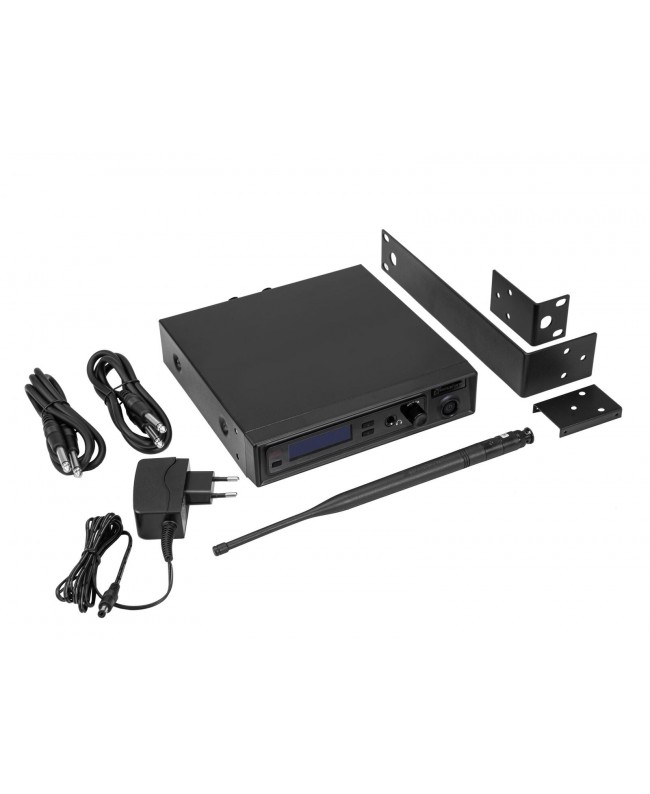

  • 1 x transmitter
  • 1 x antenna
  • 1 x external mains adapter
  • 3 x mounting bracket
  • 8 x screw
  • 2 x jack cable
  • 3 x user manual
  • 1 x declaration of conformity
  • Type: In-ear monitor
  • Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
  • Power consumption: 2 W
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
  • Frequency range: 25 - 15000 Hz
  • S/N ratio: 100 dB
  • THD: 0.9 % at 1 kHz
  • Range: Range up to 100m with line-of-sight
  • Frequency band: UHF 628 - 668 MHz
  • Switching bandwidth: 32 MHz
  • Frequency stability: +- 0.005 %
  • RF power output: 30 mW (LO); 50 mW (HI)
  • Modulation: FM, stereo
  • Frequency selection: 317 switchable frequencies, In 20 groups
  • Display type: OLED display

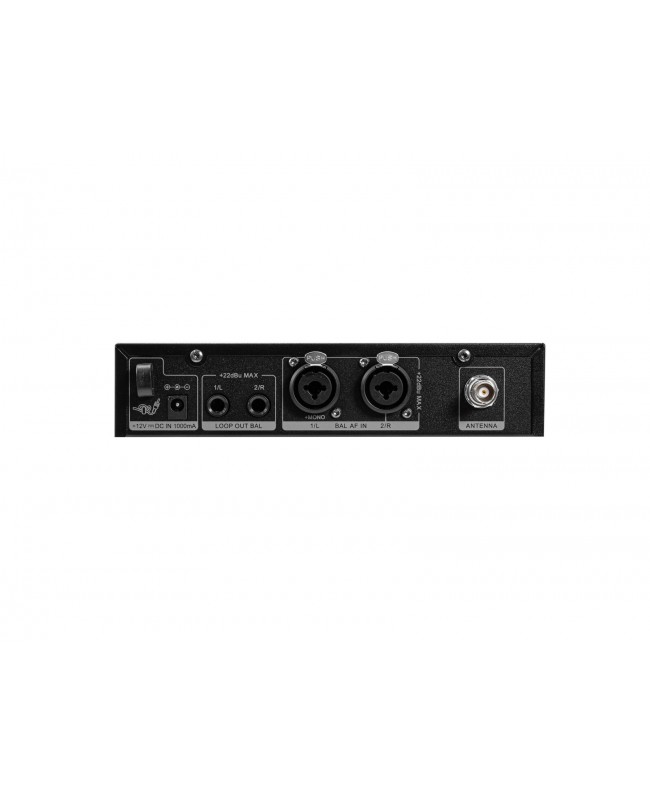

  • Connections: Antenna via 1 x BNC (F), Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 2 x 6.3 mm jack socket (stereo) mounting version, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
  • Material: Metal
  • Color: Black
  • Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
  • Dimensions: Width: 26 cm, Depth: 20 cm, Height: 4.4 cm
  • Weight: 1.51 kg
