Relacart PM-320 In-Ear System 626-668 MHz Home
  • New

Relacart PM-320 In-Ear System 626-668 MHz

€440.00
Tax included

In-ear stereo system with diversity technology, 626-668 MHz

Qty

Available upon request

Free shipping

Compare

wishlist

Relacart PM-320 In-Ear System 626-668 MHz



The PM-320 is a wireless in-ear monitoring system delivering outstanding sound for live performances, theater and voice applications. Diversity technology guarantees optimum reception quality without interference or dropouts. The system can be operated in mono and stereo mode. The bodypack receiver is 100 g light and offers perfect wearing comfort.

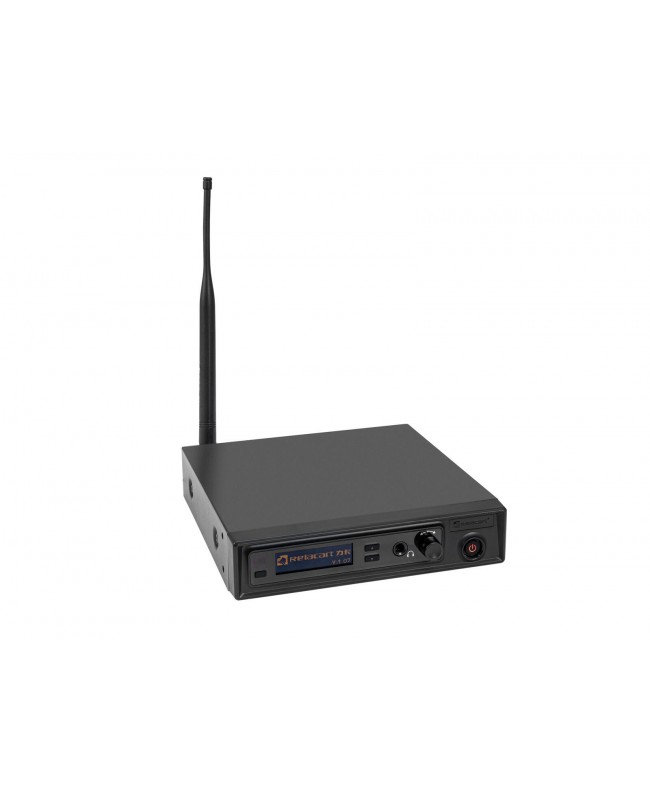

RELACART PM-320T In-Ear Stereo Transmitter 626-668 MHz

In-ear stereo wireless transmitter with pilot tone technology (PLL)

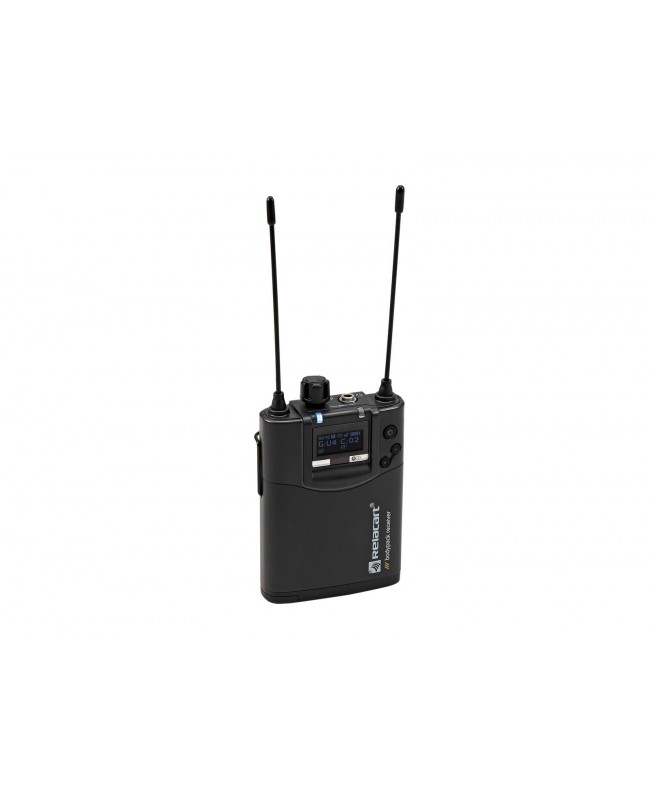

RELACART PM-320R In-Ear Bodypack Receiver 626-668 MHz

In-ear stereo wireless receiver with diversity technology



Scope of delivery

1 x RELACART PM-320T In-Ear Stereo Transmitter 626-668 MHz

1 x RELACART PM-320R In-Ear Bodypack Receiver 626-668 MHz

  • Transmitter and receiver also available separately
  • Can also be used as audio transmission system with extremely low latency
  • Wireless stereo transmitter wiht 317 preset channels and 5 user-defined channels for in-ear monitoring
  • Pilot frequency squelch technology delete wireless RF interference
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • Stereo or mono/mix mode
  • Lock function for prevents undesired changes to settings
  • RF output power Hi/Low adjustable
  • 2 line inputs via balanced combo mounting jacks XLR/6.3 mm
  • 2 feed-through outputs (loop)
  • Adjustable headphones output
  • Operating range up to 100m with line-of-sight
  • OLED display
  • Desktop console housing
  • (19) 48.3 cm rack installation possible 1 U
  • Stereo pocket receiver with 317 preset channels and 5 user-defined channels for in-ear monitoring
  • Sturdy all-metal housing with soft-touch controls, applicable for touring
  • Diversity technology for high reception quality
  • Pilot frequency squelch technology delete wireless RF interference
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • Stereo or mono/mix mode
  • Balance (left, right) adjustable
  • Limiter and high frequency boost
  • Lock function for prevents undesired changes to settings
  • Operating range up to 100m with line-of-sight
  • Up to 5 transmitters can be operated in parallel without interference
  • OLED display
  • Charge status indicator
  • 1 x transmitter
  • 1 x antenna
  • 1 x external mains adapter
  • 3 x mounting bracket
  • 8 x screw
  • 2 x jack cable
  • 3 x user manual
  • 1 x declaration of conformity
  • 1 x receiver
  • 1 x user manual
  • 1 x declaration of conformity
  • Weight: 1.62 kg
  • Type: In-ear monitor
  • Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
  • Power consumption: 2 W
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
  • Frequency range: 25 - 15000 Hz
  • S/N ratio: 100 dB
  • THD: 0.9 % at 1 kHz
  • Range: Range up to 100m with line-of-sight
  • Frequency band: UHF 628 - 668 MHz
  • Switching bandwidth: 32 MHz
  • Frequency stability: +- 0.005 %
  • RF power output: 30 mW (LO); 50 mW (HI)
  • Modulation: FM, stereo
  • Frequency selection: 317 switchable frequencies, In 20 groups
  • Display type: OLED display
  • Connections: Antenna via 1 x BNC (F), Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Output: line via 2 x 6.3 mm jack socket (stereo) mounting version, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
  • Material: Metal
  • Color: Black
  • Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
  • Dimensions: Width: 26 cm, Depth: 20 cm, Height: 4.4 cm
  • Weight: 1.51 kg
  • Type: In-ear monitor
  • Battery: 2 x Mignon (AA) (not included)
  • Frequency range: 25 - 15000 Hz
  • S/N ratio: 100 dB
  • THD: 0.9 % at 1 kHz
  • Range: Range up to 100m with line-of-sight
  • Frequency band: UHF 628 - 668 MHz
  • Diversity: Antenna diversity
  • Switching bandwidth: 32 MHz
  • Frequency stability: +- 0.005 %
  • Parallel mode: Max. 5 transmitter
  • Modulation: FM, stereo
  • Frequency selection: 317 switchable frequencies, In 20 groups
  • Display type: OLED display
  • Display: Charge status indicator , frequency , goup , channel; AF audio level , RF signal level
  • Status LED: Antenna A/B
  • Connections: Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
  • Material: Aluminum
  • Dimensions: Width: 6.5 cm, Depth: 2.3 cm, Height: 9 cm
  • Weight: 0.11 kg
