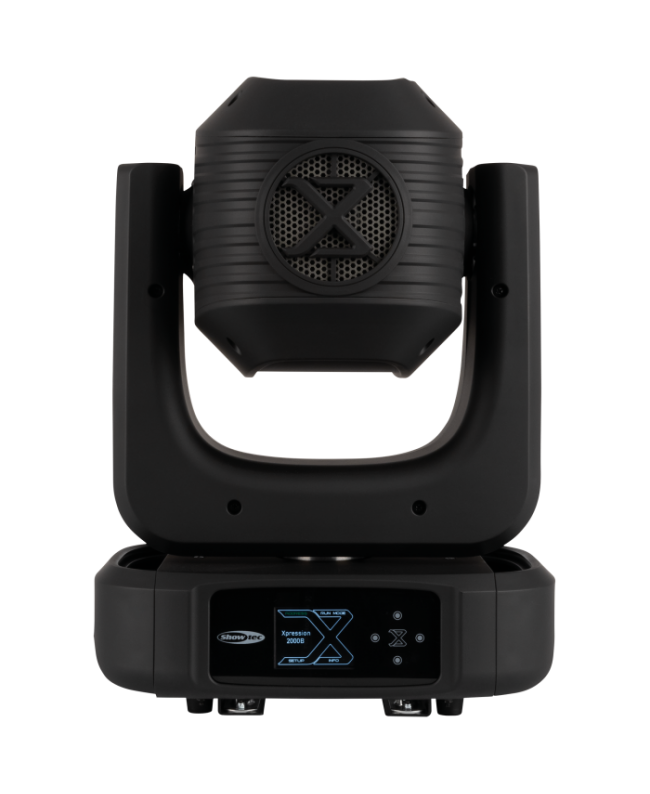

Showtec Xpression 2000B - Beam

Technical specifications

Source

• Light Source Type: LED
• Light Source Quantity: 1
• Light Source Power: 150 W
• Refresh Rate: 1200 Hz
• Refresh Rate (Max.): 15 kHz
• Illuminance @ 2 m: 686071 lx
• Illuminance @ 3 m: 304920 lx
• Illuminance @ 5 m: 109771 lx
• Luminous Flux (Total): 2392 lm
• CRI: 70

Optical

• Beam Angle Minimum (Circular): 2 °
• Frost: Yes
• Focus: Motorised
• Control and Programming
• Control Mode: Auto, Built-in Program, DMX, Manual, Master Slave, RDM, Stand Alone
• DMX Channels: 14, 18
• Protocols: DMX, RDM
• Display: LCD
• Fan mode: Yes
• Dim Curve: Linear, Square, I-Square, S-Curve

Dynamic Effects

• Dimmer: 0-100 %
• Shutter: Yes
• Prism 1: 8-facet Circular
• Prism 2: 48-facet Circular
• Prism Overlay: Yes
• Prism Index & Rotate: Yes
• Animation Wheel: No
• Framing Shutters: No
• Colour System: Colour Wheel
• Colour Wheel Index & Rotate: Yes
• Dichroic Colour Wheel 1: 14 + Open
• Gobo System: Metal
• Gobo Wheel Index & Rotate: No
• Gobo Wheel 1: 13 + Open

Movement

• Pan: 540 °
• Tilt: 360 °
• Pan/Tilt Resolution: 16-bit
• Continuous Movement: Yes

Electrical Specifications and Connections

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 152 W
• Fuse: 5 A
• Power Connector In: Power Pro Blue
• Power Connector Out: Power Pro Grey
• DMX Connector: XLR 3P In/Out
• DMX Connector In: XLR 3P
• DMX Connector Out: XLR 3P

Mechanical Specifications

• Length (mm): 198 mm (7.795″)
• Width (mm): 310 mm (12.205″)
• Height (mm): 446 mm (17.559″)
• Weight: 11.5 kg (25.353 lb)
• IP Rating: IP20 (indoor use only)
• Housing: Metal, Plastic
• Colour: Black

Product Properties

• Cooling: Convection/Axial fan

Rigging

• Mounting Options: Quick-Lock
• Safety Attachment: Yes

Thermal Specifications

• Maximum Ambient Temperature: 40 °C (104 °F)
• Maximum Surface Temperature: 70 °C (158 °F)

Included Items

• Included Cables: Power Pro Cable
• Included Rigging: Quick-Lock Bracket
