Eurolite LED IP TMH-B250 Moving Head Beam


€1,340.00
€1,021.00 -24%
Tax included
Lowest price within the last 30 days: €1,021.00

Weather-proof beam moving head (IP65) with 250W LED, gobo wheel and two combinable prisms


Out of Stock

Free shipping


wishlist

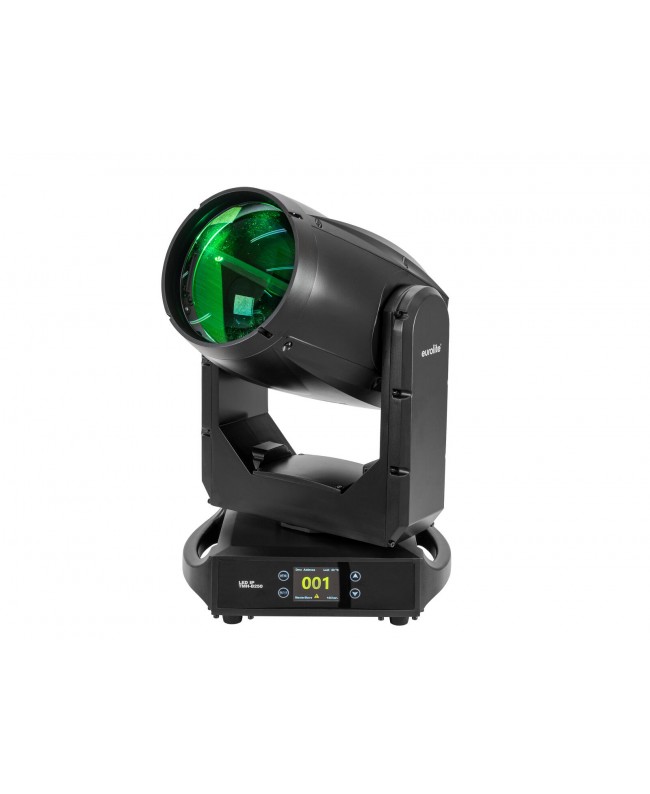

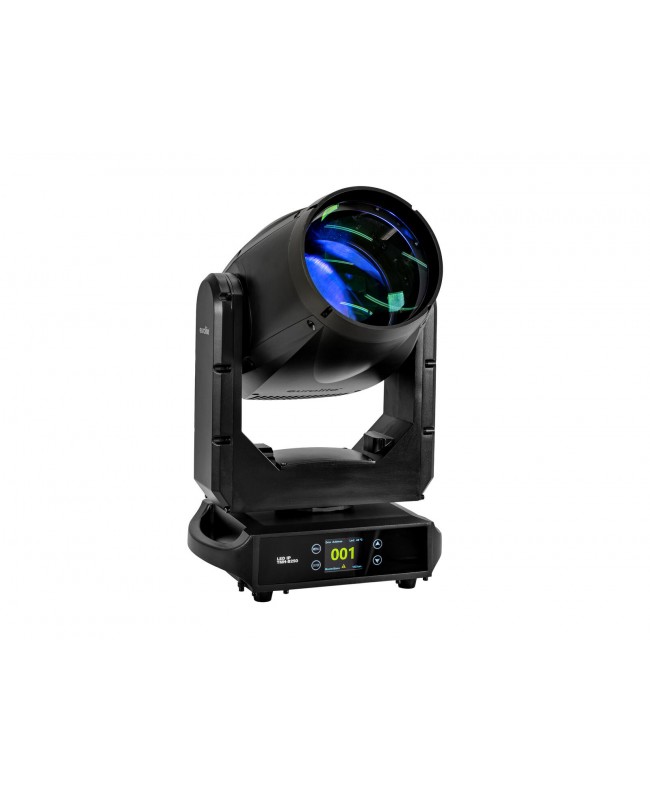

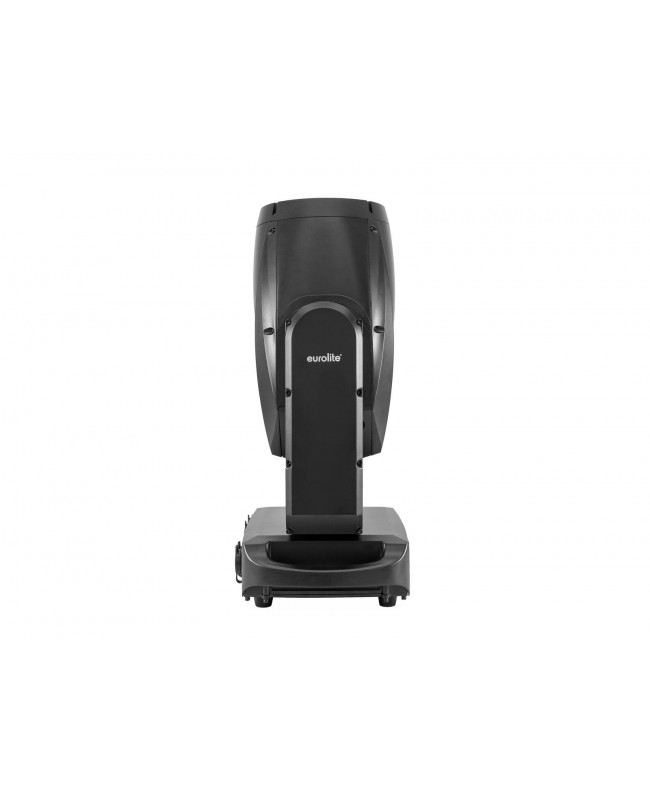

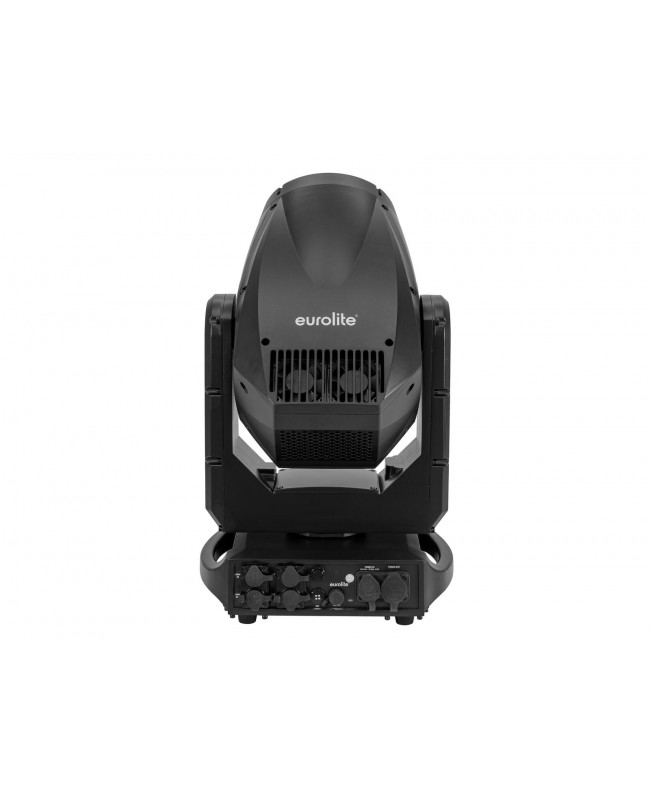

Eurolite LED IP TMH-B250 Moving Head Beam



This moving head is designed for use in any weather. With its IP65 rating, it can easily withstand heavy rain.With an extremely narrow beam angle of just 1°, it produces a precise and powerful beam, driven by a high-output 250 W LED.A gobo wheel with 13 patterns enables a wide range of projections, which can be further multiplied using two rotating prisms. These include an 8-facet and a 24-facet prism, which can also be used simultaneously.The color wheel provides 15 different colors. In addition, a multicolor filter is included, which creates particularly impressive effects, especially when combined with the prisms.

  • With a beam angle of 1°
  • 2 prisms, 24-fold and 8-fold, which can be combine
  • Gobo wheel with static gobos, 13 gobos und open
  • Color wheel with 14 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Multicolor effect filter; focus motor-driven; frost filter; color wheel; gobo wheel with static gobos; prism 24-fold rotating; prism 8-fold rotating
  • 1 LED 250 W COB (chip-on-board) cold white (CW)
  • Suitable for outdoor use IP65
  • Positioning within 540° PAN, 250° TILT
  • Auto position correction (feedback)
  • Exact positioning (16 bit resolution)
  • The device is cooled by low-noise cooling fan at the base; temperature-controlled fan at the head
  • Control via DMX; RDM; master/slave function; stand-alone; sound to light via microphone
  • Flicker-free
  • RDM For bidirectional communication over the DMX line
  • DMX fail mode (hold; blackout; auto)
  • With omega bracket

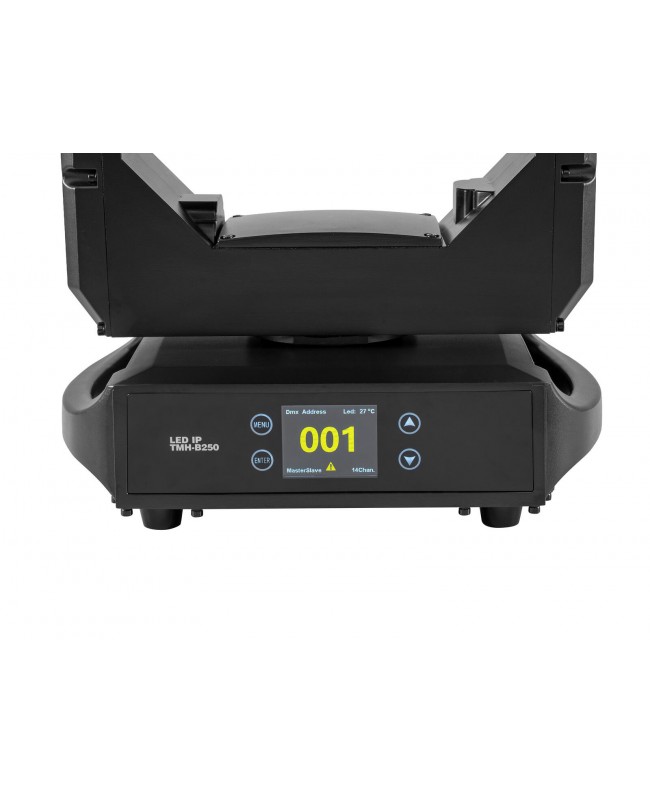

  • Multicolor LCD display
  • 2 Rugged carrying handles
  • Mains input and output for power linking up to 8 units
  • With pressure compensation membrane
  • For application areas such as: Stage; clubs/dancing school; wedding/gala/events; mobile djs / entertainer; rental
  • Application possibility: Standing; suspended
  • Fixtures available for Light Captain

Scope of delivery

  • 1 x moving light
  • 1 x user manual
  • 1 x power cord
  • 2 x omega bracket
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 310 W
  • IP classification: IP65
  • Protection class: Protection class I
  • Power connection: Mains input via IP T-Con (M) mounting version power supply cord with safety plug
  • Cable construction: 3 x 1.5 mm² H05RN-F
  • Power output: IP T-Con (F) mounting version
  • Fuse: 5 x 20 mm, T 4 A fuse replaceable
  • Lamp type: LED lamp
  • LED type: 1 x 250 W COB (chip-on-board) cold white (CW)
  • Max. TILT movement: 250° exact positioning (16 bit resolution) auto position correction (feedback)
  • Max. PAN movement: 540° exact positioning (16 bit resolution) auto position correction (feedback)
  • Flash rate: 1 - 20 Hz
  • Equipment: Multicolor effect filter; focus motor-driven; frost filter; color wheel; gobo wheel with static gobos; prism 24-fold rotating; prism 8-fold rotating
  • Color generation: Color wheel with 14 dichroic filters plus open, Half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobos: Gobo wheel with static gobos, 13 gobos und open
  • DMX channels: 14; 16
  • DMX input: 3-pin XLR (M) mounting version IP, 5-pin XLR (M) mounting version IP
  • DMX output: 3-pin XLR (F) mounting version IP, 5-pin XLR (F) mounting version IP
  • Cooling: 1 x low-noise cooling fan at the base, 5 x temperature-controlled fan at the head
  • Control: DMX; RDM; master/slave function; stand-alone; sound to light via microphone
  • Fixtures available for: Light Captain
  • Projection: Flicker-free
  • PWM frequency: 4000 Hz
  • DMX features: RDM For bidirectional communication over the DMX line
  • DMX fail mode: Hold; blackout; auto
  • Beam angle: 1°
  • Beam angle (1/2 peak): 1°
  • Beam angle (1/10 peak): 1°
  • Housing color: Black
  • Attachment system: 2x omega bracket
  • Display type: Multicolor LCD display
  • Carrying handle: 2 pc/pcs
  • Transport aid: 4 x rubber feet
  • Diameter mounting holes: 2 x Ø12mm
  • Use of brands: Built with SEETRONIC connector
  • Material: Aluminum casting
  • Dimensions: Width: 32.0 cm, Depth: 22.5 cm, Height: 52.0 cm
  • Weight: 16.35 kg
  • Noise classification: Class 2 (slight noise)
  • Special product: Not designed for household room illumination
  • Intended use: Show effect lighting
