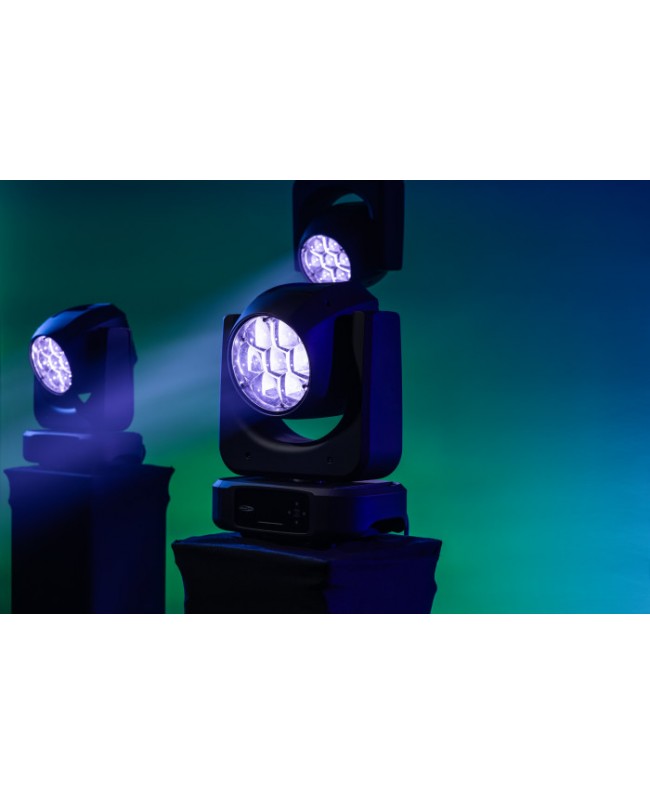

Showtec Xpression 2000W - WashBeam

Technical specifications

Source

• Type of light source LED
• Number of light sources 7
• Light source power 40 W
• LED color RGBW
• Refresh rate 1200 Hz
• Refresh rate (max) 15 kHz
• Brightness at 2 m 62931 lx
• Brightness at 3 m 27696 lx
• Brightness at 5 m 10069 lx
• Luminous flux (total) 3166 lm
• CRI 70

Optics

• Circular beam angle (min) 3.8 °
• Circular beam angle (max) 35 °
• Zoom type Motorized
• Frost No
• Focus No
• Iris No

Control and programming

• Control mode Auto, Built-in program, DMX, Manual, Master/Slave, Standalone
• DMX channels 13, 21
• DMX protocols, RDM
• LCD display
• Fan mode Yes
• Dimmer curve Linear, Square, I-Square, S-Curve

Dynamic effects

• Dimmer 0-100%

Movement

• Pan 540°
• Tilt 360 °
• Pan/Tilt resolution 16 bit
• Continuous rotation Yes

Electrical connections and characteristics

• Power supply 100-240 V AC 50/60 Hz
• Power consumption 282 W
• Fuse 5 A
• Power input connection Power Pro Blue
• Power connector Power output Power Pro Grey
• DMX connection XLR 3P In/Out
• DMX input connection XLR 3P
• DMX output connection XLR 3P

Mechanical characteristics

• Length (mm) 205 mm (8.071″)
• Width (mm) 310 mm (12.205″)
• Height (mm) 409 mm (16.102″)
• Weight 9.8 kg (21.605 lb)
• IP rating IP20 (indoor use only)
• Housing Metal, Plastic
• Color Black

Product features

• Cooling Convection/axial fan

Rigging

• Mounting options
• Quick lock
• Safety attachments
• Yes

Thermal characteristics

• Maximum ambient temperature
• 40 °C (104 °F)
• Maximum surface temperature
• 70 °C (158 °F)

Parts included

• Cables included Power Pro cable
• Fixings included Quick lock bracket
