Adam Hall Hardware 8780

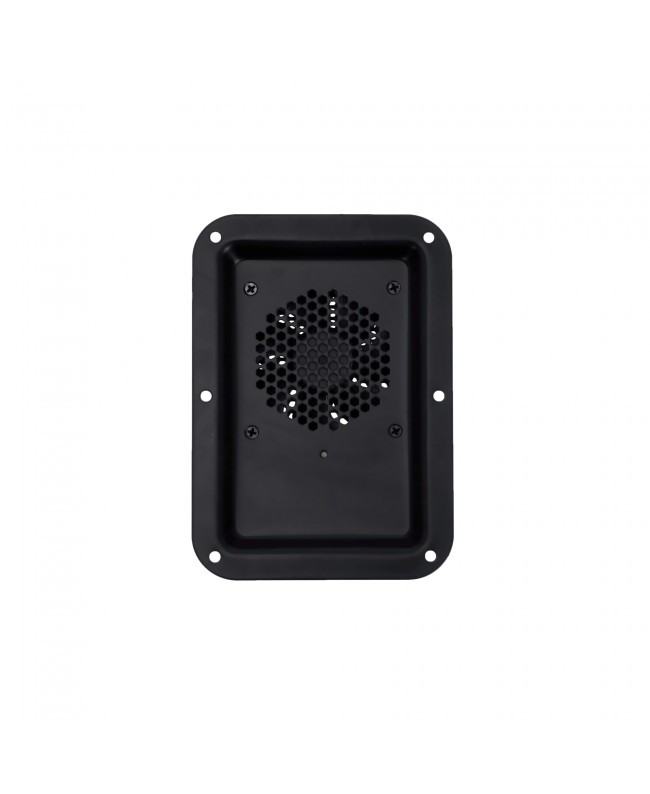

The 8780 active ventilation unit is used for effectively controlling the temperature in cases and 19 racks. It is operated via the supplied mains adapter and can be easily mounted in the corresponding housing cut-outs.

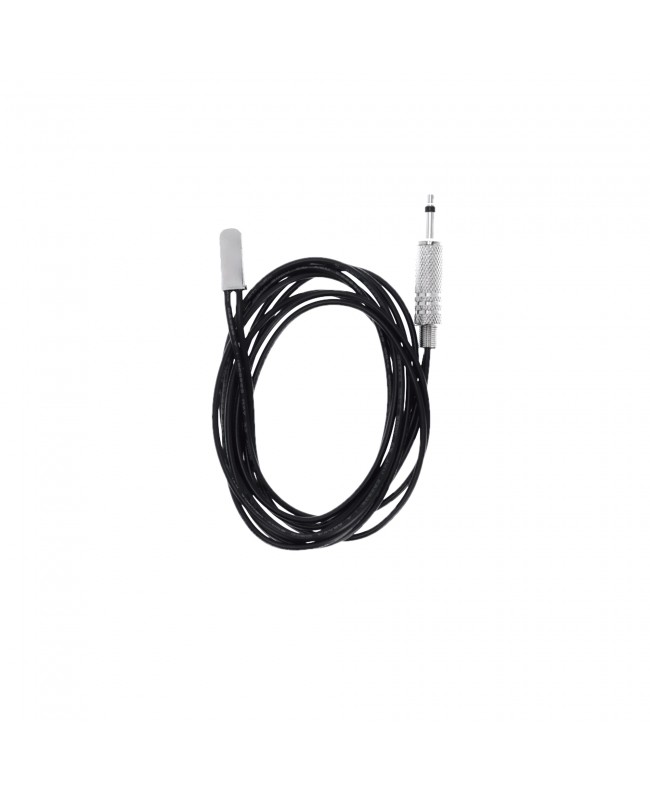

A temperature sensor, which automatically activates the unit at an ambient temperature of 40 °C, is included and can be connected via a 1 metre cable with a 3.5 mm jack plug if required. The airflow direction can be switched either to supply fresh air or to extract warm air. An LED indicates the current operating status.

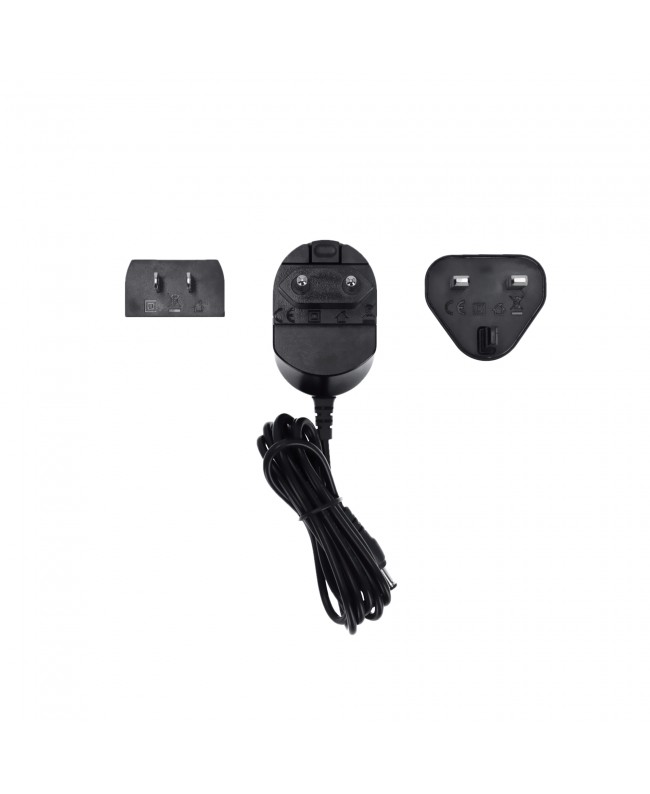

One mains adapter is sufficient to operate up to three ventilation units at the same time. The units can be connected in parallel with the optional 8780LC connection cable. Ideal for cases with active electronics or temperature-sensitive technology.

• Active ventilation unit for ventilating racks and cases
• Low-noise fan with switchable airflow direction (supply or extraction)
• Control LED for status display
• Parallel connection of up to three units possible (with optional 8780LC connection cable)
• Mains adapter and temperature sensor included
