Outline VEGAS24IP55
  • New

Outline VEGAS24IP55

€1,327.00
Tax included

Full-range loudspeaker, IP55. Components: 2 x 4, 1 x 1.5

Out of Stock

Free shipping

Compare

wishlist

Outline VEGAS24IP55

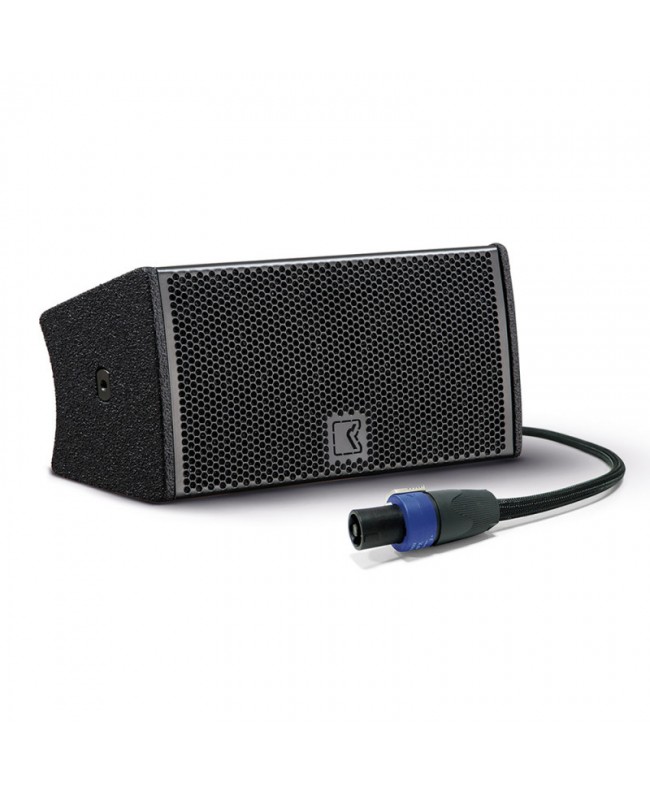

VEGAS 24 is ideal for wide coverage applications that require a small, low profile cabinet. IP55 certified, this loudspeaker adopts two 4 woofers and a high quality 1.5 voice coil compression driver coupled with a waveguide designed by Outline engineers. Excellent speech intelligibility. High sound pressure capability compared to size and weight: 122 d. BSPL at maximum power. The dispersion is 150° horizontal. VEGAS 24 is equipped with M6 installation points for different types of brackets; it can be used as front-fill and under balcony in theatres. Multi-connector design with NL4 and 4-pole Phoenix for both live and fixed installation connections. NL4 pass-through allows for the ability for multiple devices to connect in parallel. Custom RAL color repainting options. Weight 3.1 kg.

  • Frequency Response (-10 dB): 120 Hz - 22 kHz
  • Nominal Dispersion: 150° x 90° (H x V)
  • Impedance (Nom/Min): 16 ohm / 10.5 ohm
  • W AES (Continuous/Peak): 160 W / 640 W

Maximum SPL Output *

  • * Calculated using +10 dB Crest Factor signal at 1 m, Free Field: 122 dBSPL
  • Component Low: 2 x 4'' woofer
  • Component High: 1.5'' diaphragm compression driver
  • Loading Low: Band-pass
  • Loading High: Moulded horn

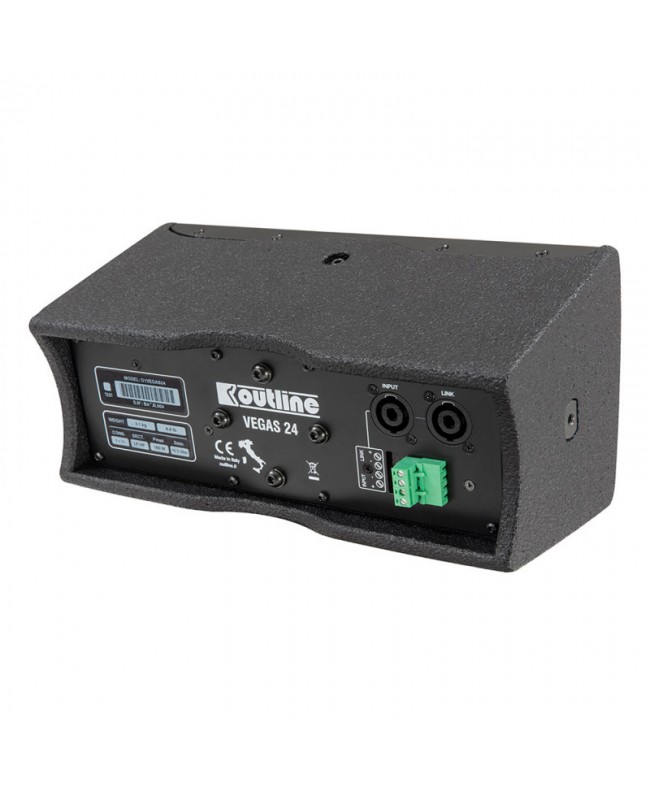

  • Connectors: 2 x NL4 PAR Pins 1+/1-, 4PIN PHX
  • Cabinet Material: Baltic birch plywood
  • Cabinet Finish: Black polyurea coating
  • Grill: Epoxy powder coated
  • Installation Points: 8 x M6 threaded points
  • Pole Mount: N/A
  • Dims.: Height 148 mm
  • Weight: 3.1 kg - 6.8 lb

OUT-O5VEGAS24
