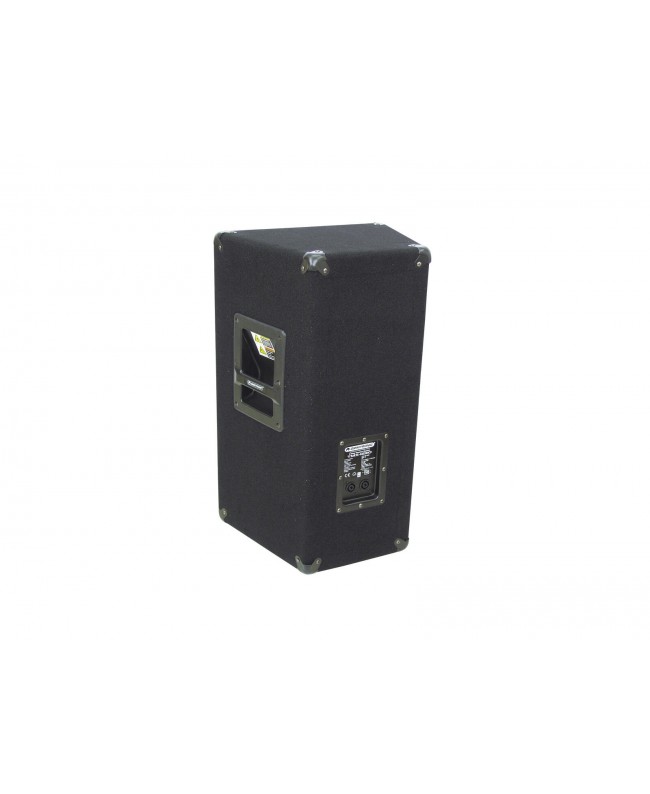

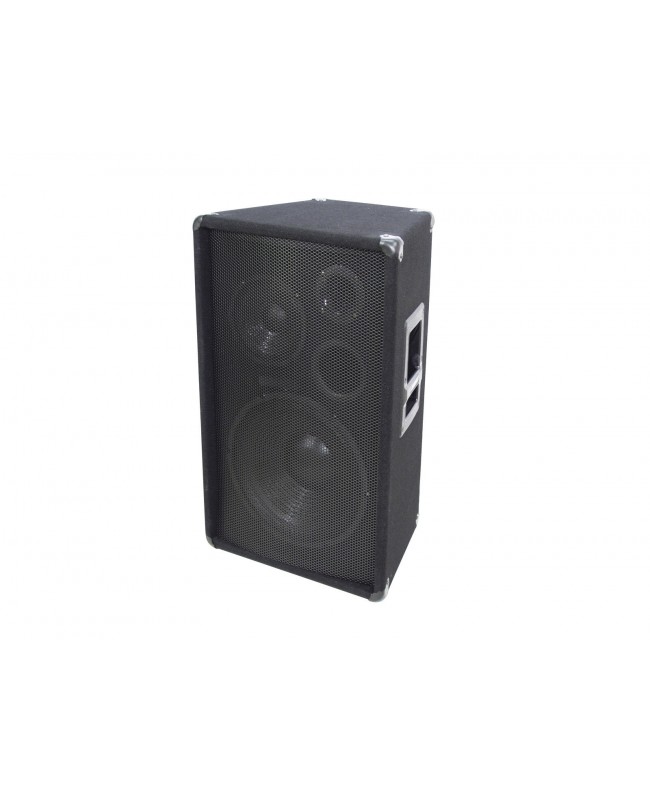

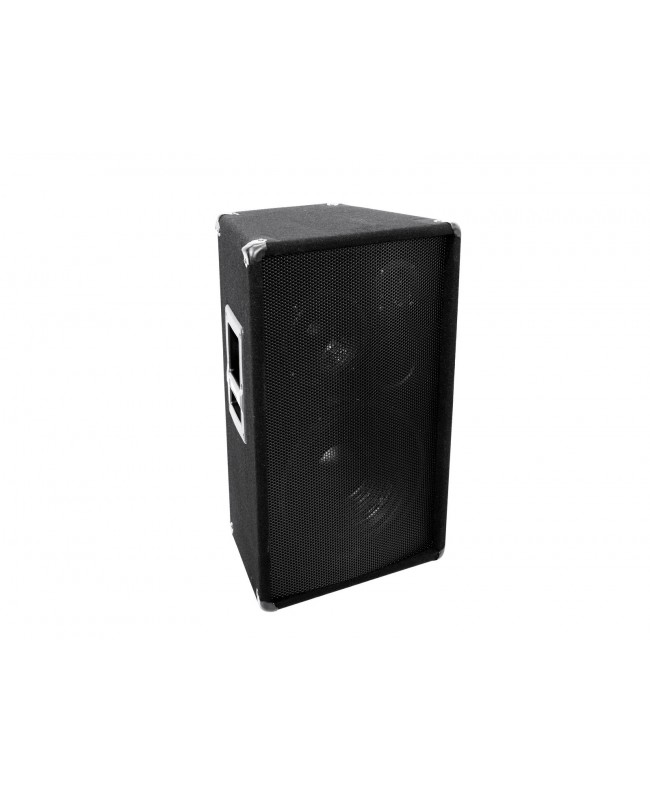

Omnitronic TMX-1230 3-way Speaker 800W

• Rugged full-range speaker-system in a stable wooden housing
• 30 cm woofer (12) with special, higly temperature resistant vibrating coil
• Tweeter with coil-driver for powerful treble
• Mid-range membrane loudspeaker for a smooth sound when reproducing speech or singing
• With passive 3-way crossover
• Powerful bass via voluminous housing and bass-reflex tube
• Very high durability
• Scratch-resistant, black felt-covering
• With stable protective steel corners
• Black metal grille
• 2 Rugged carrying handles
• Application possibility: Standing; on stand
• For application areas such as: Stage; band/rehearsal room; product presentations and lectures
• For further information about this product, please refer to the Data Sheet under Downloads

Scope of delivery

• 1 x user manual
• 1 x top
• 4 x foot
• 4 x screw

• Power: Program: 800W, Rated: 400W RMS
• Frequency range: 40 - 18000 Hz
• Sensitivity: 96 dB (1W/1m)
• Impedance: 8 ohms

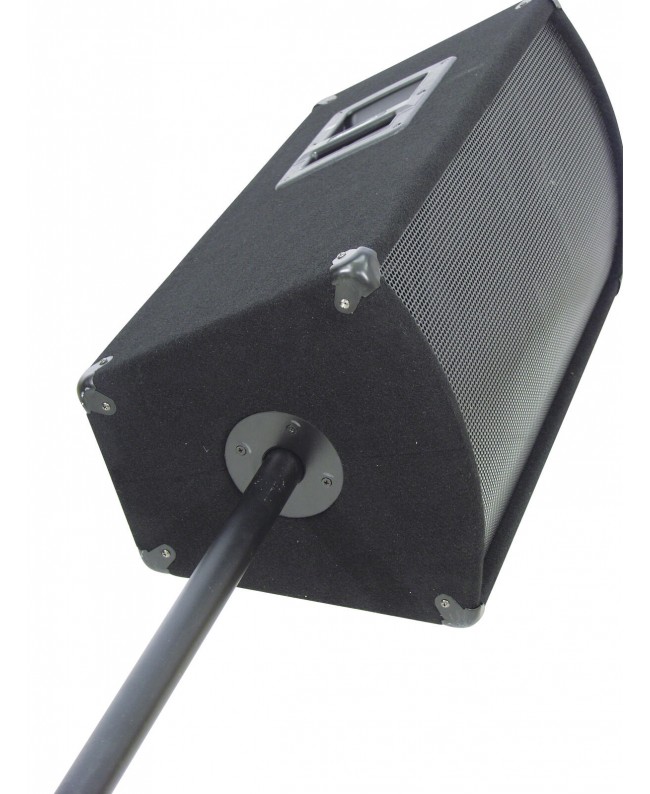

• Attachment system: Flange: Ø 35mm
• Connections: Input: speaker via 2 x speaker built-in socket (F)
• Speaker: 1 x woofer 12, Basket material: steel, Conematerial: cardboard/paper, 1 x midrange speaker 8, 1 x tweeter
• Type of speaker: Compact cabinet speaker
• Carrying handle: 2 pc/pcs
• Material: , 15 mm
• Color: Black
• Dimensions: Width: 40 cm, Depth: 31 cm, Height: 65.5 cm
• Weight: 13.70 kg
