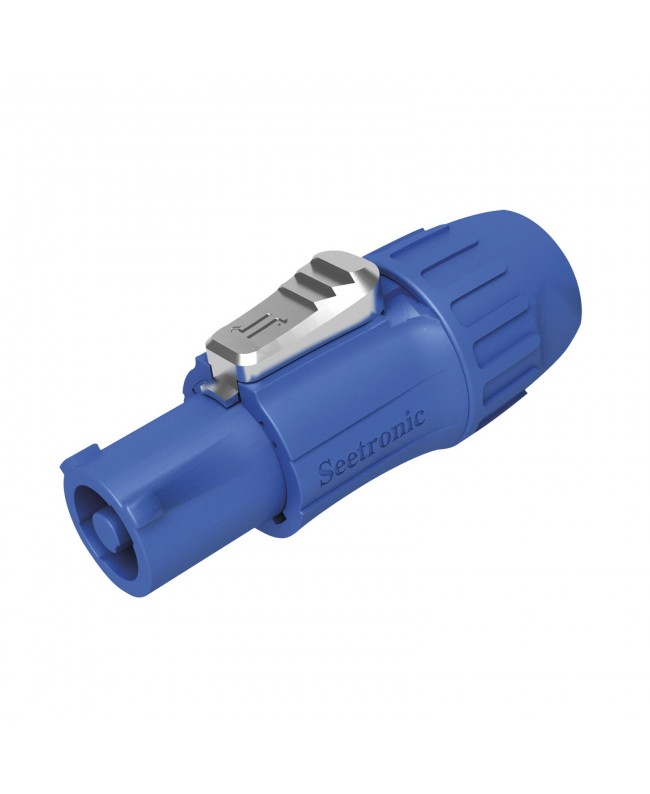

SEETRONIC Power Pro Cable Connector



The Power Pro Connector is a locking, AC cable connector with contacts for line, neutral, and pre-mating ground contact. It is used as an appliance coupler wherever a rugged solution in combination with a locking system is needed in order to guarantee a safe power connection. Two cable chucks are included for smaller and larger diameter cables.

  • Locking 20 A/250 V AC 3-way cable connector
  • Silver-plated contacts
  • UL94-V0 flame retardant
  • Rated Current (A): 20 A
  • Flashover Voltage: 4000 V
  • Cable Entry: 8-12 mm
  • Pins: 3
  • Minimum Wire Size: 0.75 mm²
  • Maximum Wire Size: 2.5 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Length (mm): 76.5 mm
  • Height (mm): 26 mm
  • Width (mm): 26 mm
  • Weight: 0.04 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Polyamide
  • Colour: Blue
  • Pin Connection: Screw Terminal
  • Locking Device: Latch
  • Contact Type: Silver plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

SAC3FCA

Data sheet
