NEUTRIK NAC3FXXA-W-L Power Twist Cable Connectors
  • -19%

NEUTRIK NAC3FXXA-W-L

€9.00
€7.40 -19%
Tax included
Lowest price within the last 30 days: €7.40

PowerCON blue PowerIn, Large

Qty

In Stock

Delivery

Do You want Your order by Monday, 22/06/2026? Order within 2 hours and 23 minutes

In Store Pick Up

Compare

wishlist

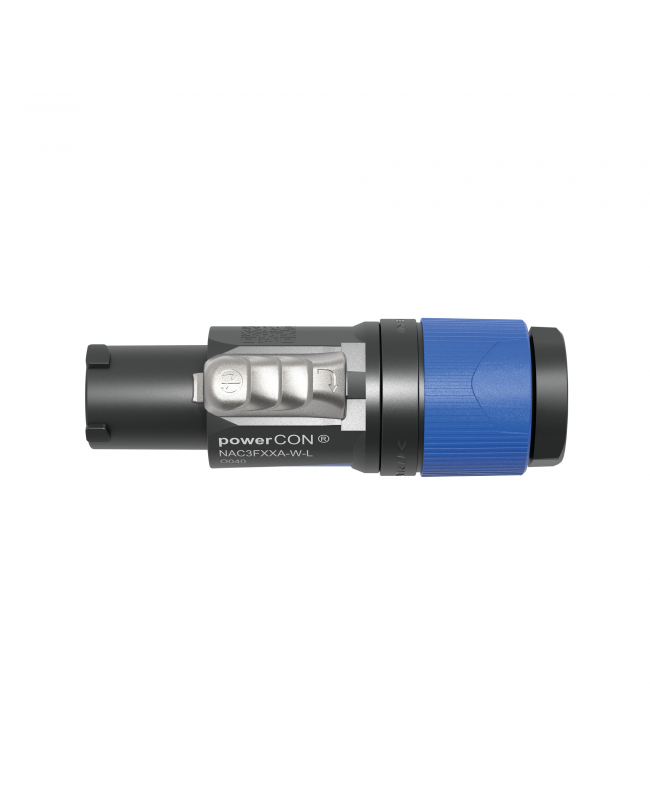

NEUTRIK NAC3FXXA-W-L



  • Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.
  • The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
  • It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
  • IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Improved kink protection by two-component bushing

Specifications

Electrical Specifications and Connections

  • Rated Current (A): 16 A
  • Cable Entry: 10-16 mm
  • Pins: 3
  • Minimum Wire Size: 1.5 mm²
  • Maximum Wire Size: 2.5 mm²
  • Maximum Wire Size AWG: 12 AWG

Mechanical Specifications

  • Length (mm): 83 mm
  • Height (mm): 30 mm
  • Width (mm): 26.5 mm
  • Diameter: 26.5 mm
  • Weight: 0.04 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: ABS
  • Colour: Black, Blue

Product Properties

  • Pin Connection: Screw Terminal
  • Locking Device: Latch
  • Contact Type: Copper

Thermal Specifications

  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -33 °C

NAC3FXXAWL

Data sheet
