SEETRONIC Power Pro Inlet/Outlet Combination Chassis

SEETRONIC Power Pro Inlet/Outlet Combination Chassis


€7.20
Tax included

Locking 20 A mains connector


Qty

In Stock

Delivery

Do You want Your order by Monday, 03/08/2026? Order within 9 hours and 43 minutes



wishlist

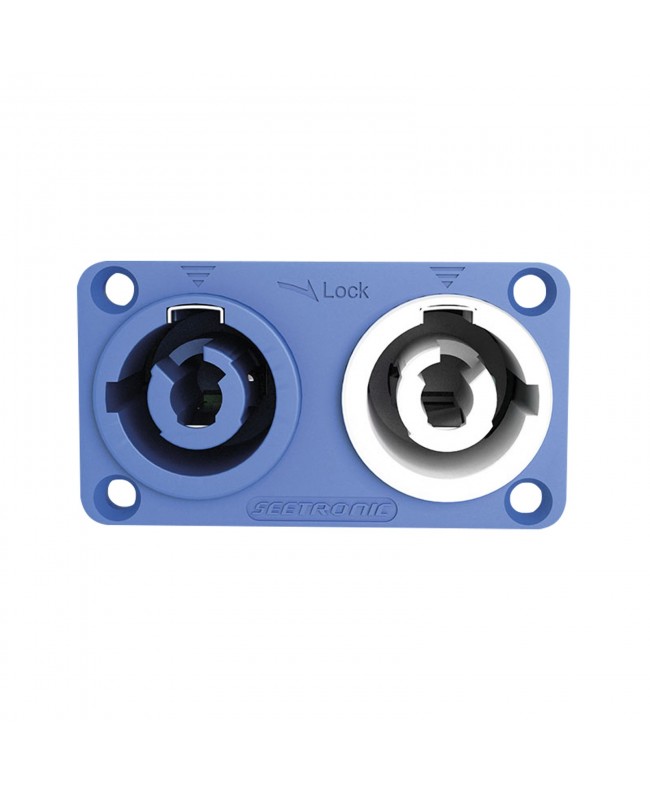

SEETRONIC Power Pro Inlet/Outlet Combination Chassis



The Power Pro Inlet/Outlet Combination Chassis is a locking true mains dual combination connector with silver-plated contacts. It is used as an appliance coupler wherever a rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. It is water and airtight.

  • Locking 20 A single phase in/output combination connector
  • Silver-plated contacts
  • UL94-V0 flame retardant
  • Rated Current (A): 20 A
  • Flashover Voltage: 250 V
  • Minimum Wire Size: 0.75 mm²
  • Maximum Wire Size: 2.5 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Width (mm): 56 mm
  • Weight: 0.01 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Polyamide
  • Colour: Blue
  • Pin Connection: Solder
  • Contact Type: Silver plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

SAC3MPA02

Data sheet

Color
Blue
