SEETRONIC Power Pro Chassis Connector

SEETRONIC Power Pro Chassis Connector


€3.10
Tax included

White - FASTON/soldering terminals


Qty

In Stock

Delivery

Do You want Your order by Monday, 03/08/2026? Order within 9 hours and 43 minutes



wishlist

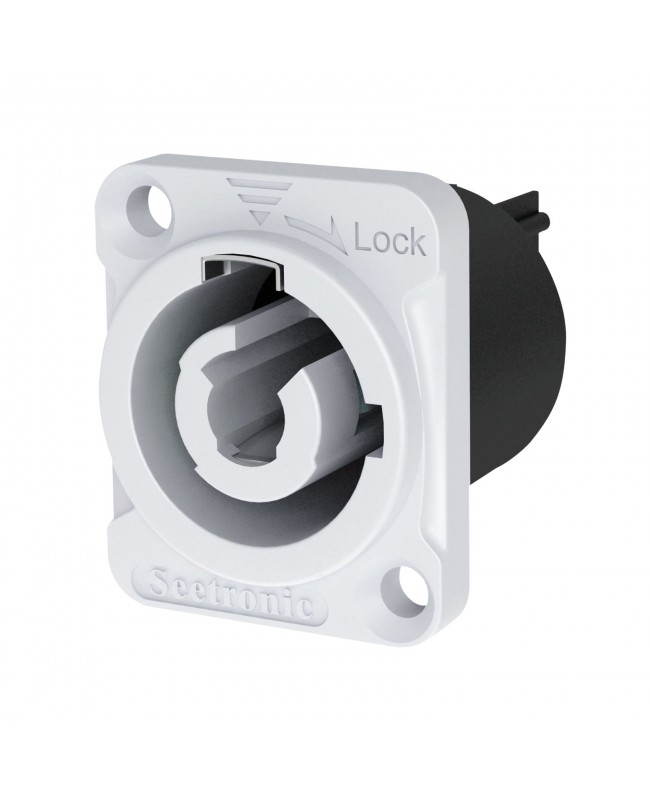

SEETRONIC Power Pro Chassis Connector



The Power Pro Chassis Connector is a locking true mains connector with silver-plated contacts. It is used as an appliance coupler wherever a rugged solution in combination with a locking device is needed, in order to guarantee a safe power connection. It is shaped to fit a D-size hole for easy instalment.

  • Locking 20 A single phase connector
  • Suitable for D-size holes
  • FASTON/solder cable connections
  • Silver-plated contacts
  • UL94-V0 flame retardant
  • Flashover Voltage: 4000 V
  • Pins: 3
  • Minimum Wire Size: 0.75 mm²
  • Maximum Wire Size: 2.5 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Height (mm): 31 mm
  • Width (mm): 26 mm
  • Weight: 0.01 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Polyamide
  • Colour: White
  • Pin Connection: Solder
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

SAC3MPB

Data sheet

Color
White
