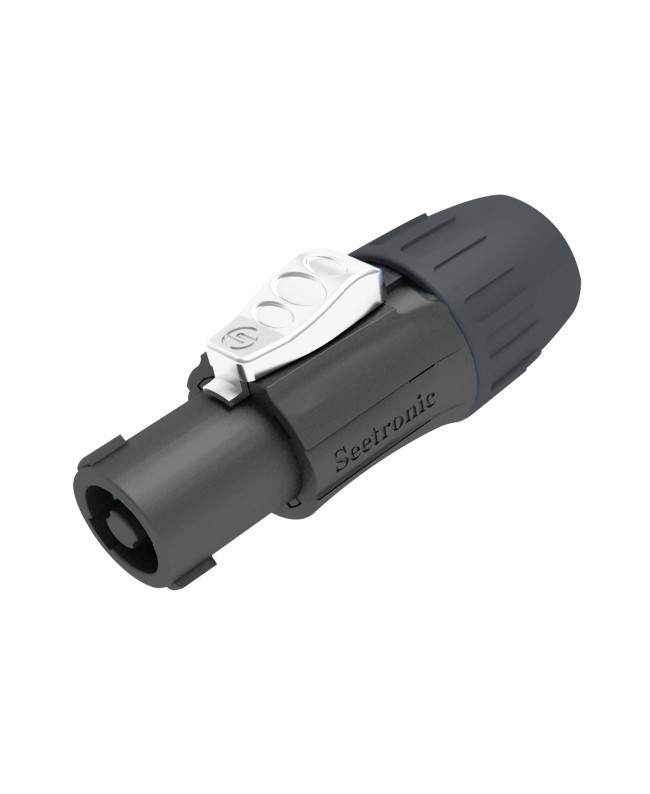

SEETRONIC Speaker 4P Connector - male Black housing - black end cap Power Twist TRUE Cable Connectors

SEETRONIC Speaker 4P Connector - male Black housing - black end cap

€3.10
Tax included

Black housing - black end cap

Out of Stock

Compare

wishlist

SEETRONIC Speaker 4P Connector - male Black housing - black end cap



This 4-way heavy duty connector is intended for reliable loudspeaker connections and uses a quick-lock system to securely lock the connector in place. It has silver-plated contacts and is rated for currents up to 30 A. It is suitable for cables with a surface area of up to 4 mm² and outer diameters from 7 to 14.5 mm.

  • Easy locking system
  • Silver-plated contacts
  • Suitable for cables with an outer diameter between 7 and 14.5 mm
  • Flashover Voltage: 4000 V
  • Impedance: 10000 Ω
  • Brand Connector 1: Seetronic
  • Pins: 4
  • Wire Connection: 4 mm²
  • Maximum Wire Size: 4 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Outer Cable Diameter: 15 mm
  • Length (mm): 69.7 mm
  • Height (mm): 31.4 mm
  • Width (mm): 27.1 mm
  • Diameter: 31.4 mm
  • Weight: 0.1 kg
  • IP Rating: IP20 (indoor use only)
  • Housing: Polyamide
  • Colour: Black
  • Contact Resistance: 3 mΩ
  • Locking Device: Latch
  • Contact Type: Silver plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

ML4FCX
