SEETRONIC Power Pro True Outlet Chassis Connector - Female
  • -13%

SEETRONIC Power Pro True Outlet Chassis Connector - Female


€5.50
€4.80 -13%
Tax included
Lowest price within the last 30 days: €4.80

Locking 16 A mains connector


Qty

In Stock

Delivery

Do You want Your order by Monday, 03/08/2026? Order within 8 hours and 26 minutes



wishlist

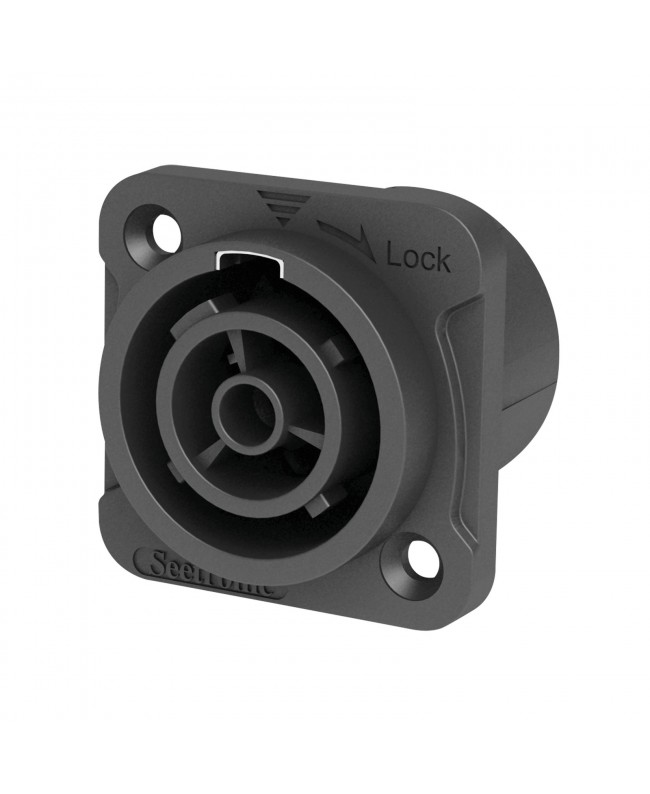

SEETRONIC Power Pro True Outlet Chassis Connector - Female



The Power Pro True Outlet Chassis Connector is a locking true mains connector with silver-plated contacts. It is used as an appliance coupler wherever a rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. It is IP65-rated, watertight and airtight.

  • Locking 16 A single phase connector
  • Silver-plated contacts
  • UL94-V0 flame retardant
  • Rated Current (A): 16 A
  • Flashover Voltage: 4000 V
  • Pins: 3
  • Maximum Wire Size: 2.5 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Length (mm): 43.3 mm
  • Height (mm): 35.5 mm
  • Width (mm): 35.5 mm
  • Diameter: 29 mm
  • Weight: 0.001 kg
  • IP Rating: IP65 Front
  • Material: Polyamide
  • Colour: Black
  • Pin Connection: FASTON Terminal
  • Locking Device: Latch
  • Contact Type: Silver plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

SAC3FPXLY

Data sheet

Miscellaneous
Suitable for outdoor use
Color
Black
Giorni di elaborazione
3
