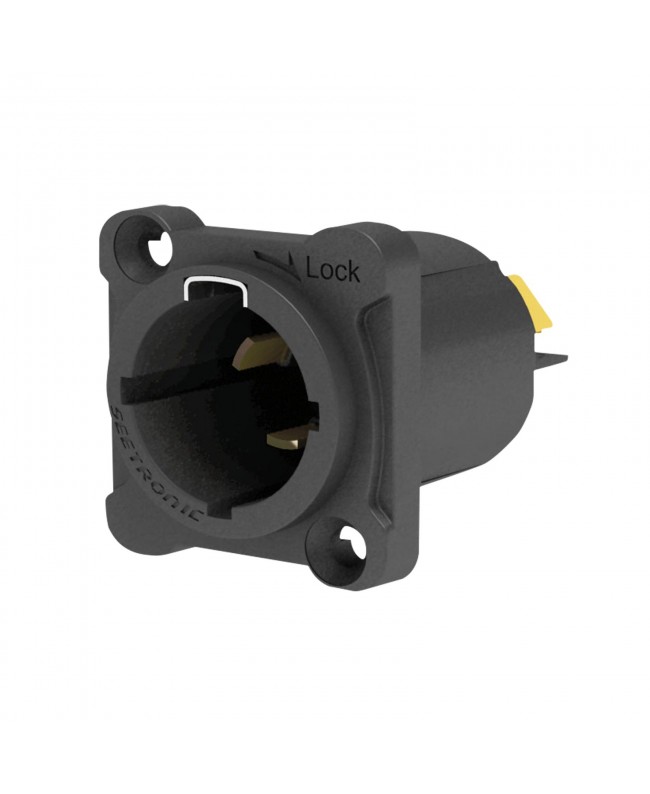

SEETRONIC Power Pro True Inlet Chassis Connector - Male - D- Size



The Power Pro True Chassis Connector is a locking true mains connector with gold-plated contacts. It is used as an appliance coupler wherever a rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. It is water and airtight, and shaped to fit a D-size hole for easy instalment.

  • Locking 20 A single phase connector
  • Suitable for D-size holes
  • Gold-plated contacts
  • UL94-V0 flame retardant
  • Rated Current (A): 16 A
  • Flashover Voltage: 4000 V
  • Pins: 3
  • Maximum Wire Size: 2.5 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Width (mm): 29 mm
  • Weight: 0.001 kg
  • IP Rating: IP65 Front
  • Material: Polyamide
  • Colour: Black
  • Pin Connection: FASTON Terminal
  • Locking Device: Latch
  • Contact Type: Silver plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

SAC3MPXLY

Data sheet

Miscellaneous
Suitable for outdoor use
Color
Black
Giorni di elaborazione
3
