SEETRONIC Power Pro True Inlet/Outlet Combination Chassis
  • -7%

SEETRONIC Power Pro True Inlet/Outlet Combination Chassis


€10.90
€10.10 -7%
Tax included
Lowest price within the last 30 days: €10.10

Locking 20 A mains connector


Qty

In Stock

Delivery

Do You want Your order by Monday, 03/08/2026? Order within 8 hours and 26 minutes



wishlist

SEETRONIC Power Pro True Inlet/Outlet Combination Chassis

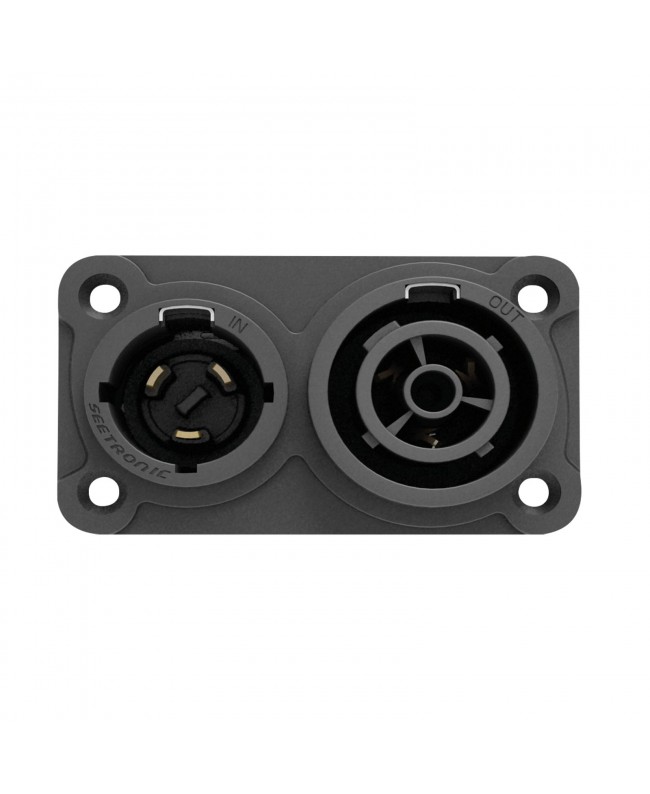

The Power Pro True Inlet/Outlet Combination Chassis is a locking true mains dual combination connector with gold-plated contacts. It is used as an appliance coupler wherever a rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. It is water and airtight.

  • Locking 20 A single phase in/output combination connector
  • Gold-plated contacts
  • UL94-V0 flame retardant
  • Flashover Voltage: 4000 V
  • Pins: 6
  • Minimum Wire Size: 0.75 mm²
  • Maximum Wire Size: 2.5 mm²
  • Maximum Wire Size AWG: 12 AWG
  • Length (mm): 43.55 mm
  • Height (mm): 35.5 mm
  • Width (mm): 61 mm
  • Weight: 0.046 kg
  • IP Rating: IP65 Front
  • Housing: Polyamide
  • Colour: Black
  • Pin Connection: Solder
  • Contact Type: Gold plated
  • Maximum Ambient Temperature: 80 °C
  • Minimum Ambient Temperature: -30 °C

SAC3PX

Data sheet

Miscellaneous
Suitable for outdoor use
Color
Black
Giorni di elaborazione
3
