Alutruss Truss set QUADLOCK 6082 L-Figure 7x4x3.5m (WxDxH) Pro-30 Square
  • -14%

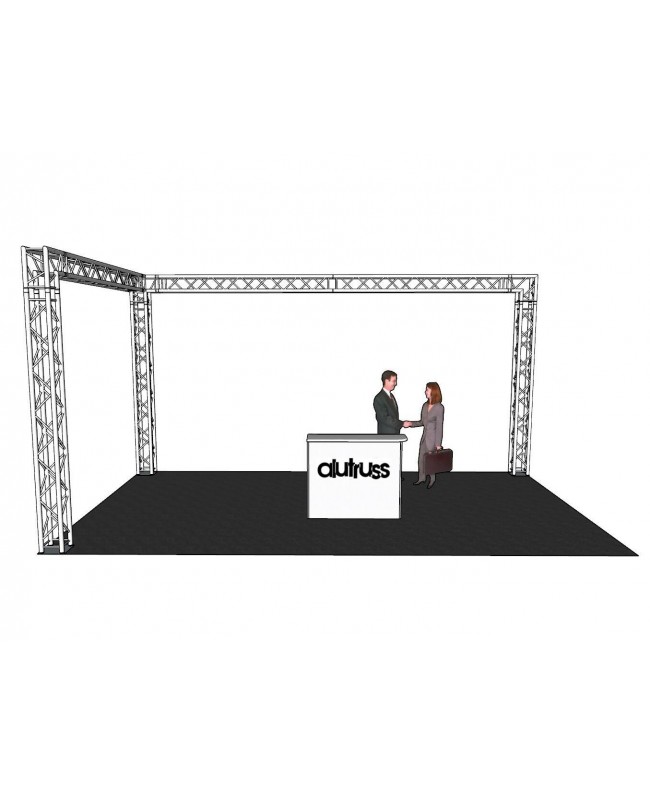

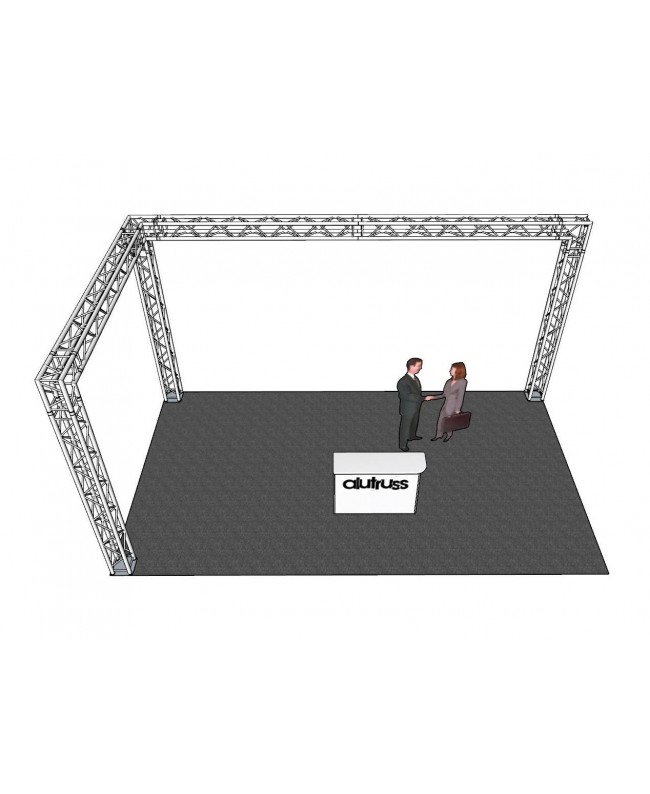

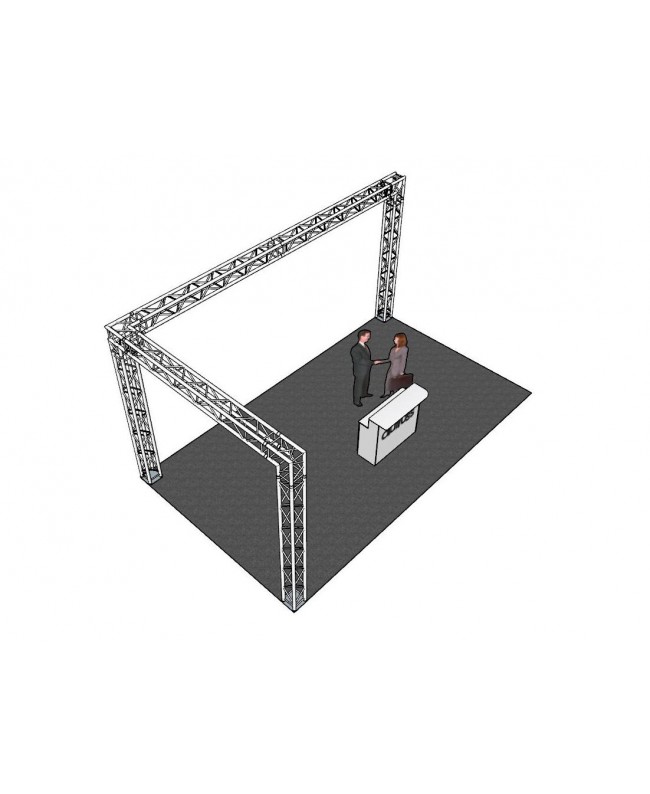

Alutruss Truss set QUADLOCK 6082 L-Figure 7x4x3.5m (WxDxH)

€4,556.00
€3,925.00 -14%
Tax included
Lowest price within the last 30 days: €3,925.00

4-Point truss system

Qty

In Stock

Delivery

Do You want Your order by Friday, 31/07/2026? Order within 5 hours and 3 minutes

Free shipping

Compare

wishlist

Alutruss Truss set QUADLOCK 6082 L-Figure 7x4x3.5m (WxDxH)

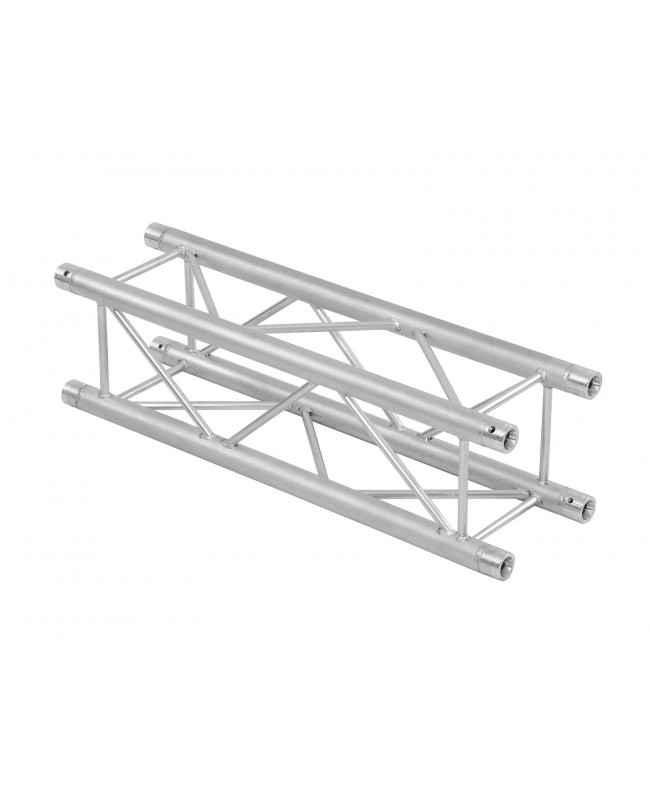

ALUTRUSS QUADLOCK 6082-3000 4-way Cross Beam

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Low weight
  • Distance center - center: 240 mm
  • Easy installation
  • Trusspipe: 50 mm
  • TÜV Süd certified
  • For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
  • For further information about this product, please refer to the Data Sheet under Downloads

ALUTRUSS QUADLOCK 6082C-21 2-way Corner 90°

4-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Low weight
  • Distance center - center: 240 mm
  • Easy installation
  • Trusspipe: 50 mm
  • Made in Europe
  • For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school

ALUTRUSS QUADLOCK 6082L-30 3-way Corner 90°

4-point truss system

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Low weight
  • Distance center - center: 240 mm
  • Easy installation
  • Trusspipe: 50 mm
  • Made in Europe
  • For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school

ALUTRUSS QUICK-LOCK Spare Pivot with Pin

QUICK-LOCK set

  • Accessories for the robust truss system with QUICK-LOCK
  • For use with TRI/QUAD system
  • Trusspipe: 50 mm
  • Made in Europe

ALUTRUSS QUADLOCK End Plate QQGP-Male M-10

Baseplate for mobile use (connectors 6082 included)

  • Easy installation
  • The article is delivered pre-assembled
  • Trusspipe: 50 mm
  • Made in Europe
  • Application possibility: Standing

half cone

  • M10 thread

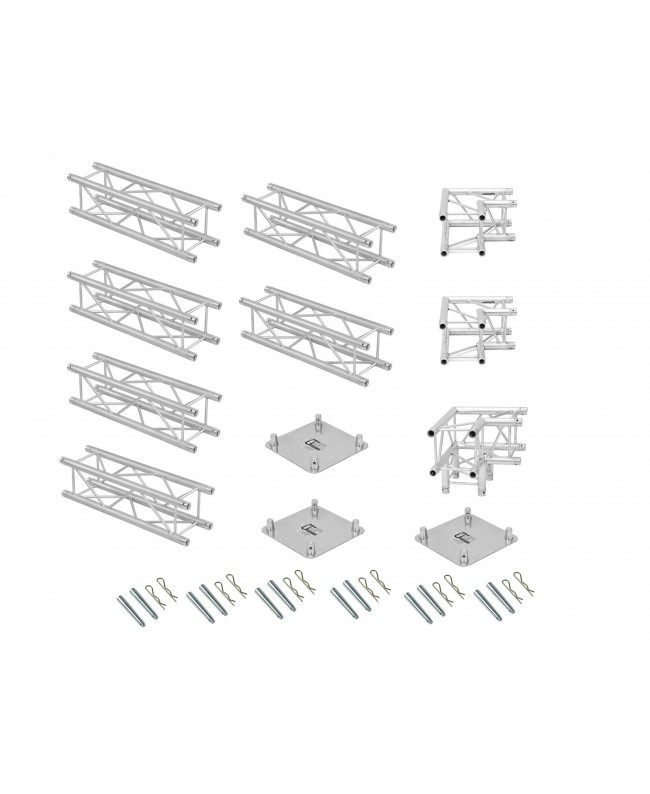

Scope of delivery

6 x ALUTRUSS QUADLOCK 6082-3000 4-way Cross Beam

  • 1 x connection set

2 x ALUTRUSS QUADLOCK 6082C-21 2-way Corner 90°

  • 1 x connection set

1 x ALUTRUSS QUADLOCK 6082L-30 3-way Corner 90°

  • 2 x connection set

6 x ALUTRUSS QUICK-LOCK Spare Pivot with Pin

  • 2 x splint
  • 2 x bolt

3 x ALUTRUSS QUADLOCK End Plate QQGP-Male M-10

  • 1 x plate
  • 4 x half cone
  • Weight: 109.36 kg
  • Setup: Easy installation
  • Trusspipe: 50 mm x 2 mm
  • Welding technique: TIG-welding
  • Welding material: AlMg 5
  • Alloy: AIMgSi1 T6
  • Color: Alu colored
  • Strut diameter x thickness: 16 x 2mm
  • Dimensions: Length: 300 cm, Width: 29 cm, Height: 29 cm
  • Weight: 14.2 kg
  • Setup: Easy installation
  • Trusspipe: 50 mm x 2 mm
  • Color: Alu colored
  • Strut diameter x thickness: 16 x 2mm
  • Dimensions: Length: 50 cm, Width: 50 cm, Height: 29 cm
  • Weight: 5.50 kg
  • Setup: Easy installation
  • Trusspipe: 50 mm x 2 mm
  • Color: Alu colored
  • Strut diameter x thickness: 16 x 2mm
  • Dimensions: Length: 50 cm, Width: 50 cm, Height: 50 cm
  • Weight: 7.95 kg
  • Trusspipe: 50 mm
  • Color: Alu colored
  • Weight: 0.09 kg
  • Setup: Easy installation
  • Trusspipe: 50 mm
  • Material: Aluminum
  • Color: Alu colored
  • Dimensions: Length: 30.7 cm, Width: 30.7 cm, Height: 5 cm
  • Weight: 1.55 kg
  • Thread: M10 thread

20000380
