Alutruss Set QUADLOCK QL-ET34-2000 + Truss Transport Board


€2,013.00
Tax included

4-Point truss system


Out of Stock

Free shipping


wishlist

Alutruss Set QUADLOCK QL-ET34-2000 + Truss Transport Board



ALUTRUSS QUADLOCK QL-ET34-2000 4-way Cross Beam

  • Strong EN-AW 6082 alloy for high loads
  • High-quality aluminum-tubes with 50 mm in diameter
  • Low weight
  • Distance center - center: 240 mm
  • Easy installation
  • Trusspipe: 50 mm
  • Made in Europe
  • For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
  • For further information about this product, please refer to the Data Sheet under Downloads

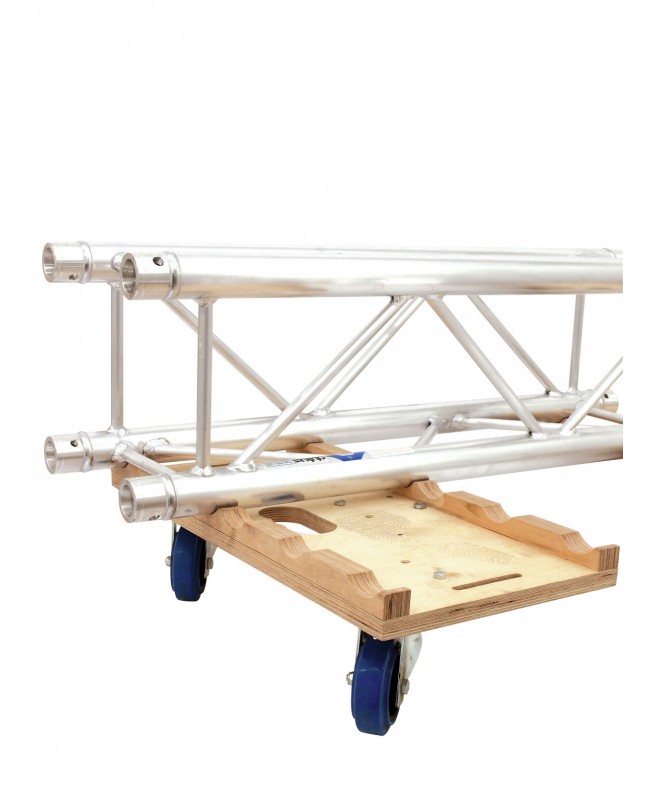

ALUTRUSS Truss Transport Board Combo for 3 Wheels

Transport cart for QUADLOCK and TRILOCK truss elements

  • Practical transport cart made of multiplex wood
  • Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
  • Quick and secure stacking with optional stacking ridges
  • Cut-outs for safety bands for safe transport of the truss elements
  • Grip hole
  • 12 borings for mounting castors (optional)

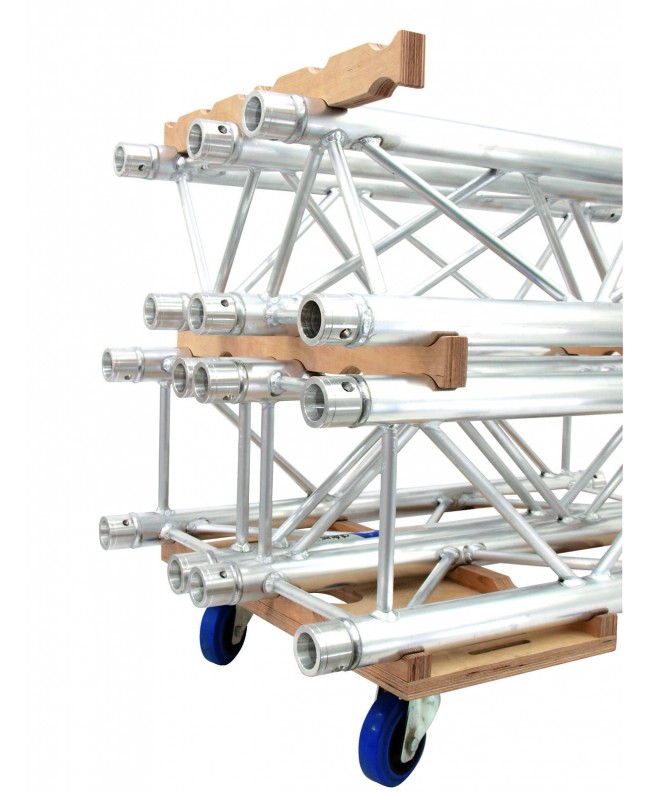

  • The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
  • Made in Germany

ROADINGER Swivel Castor 100mm BLUE WHEEL light blue

100 mm swivel castor

  • Double ball race
  • Housing made of steel, zinc-plated
  • Roller race hub bearing
  • Replaceable bolt-on wheel
  • Carrying capacity: 450 kg per set (4 castors)
  • Made in Germany
  • For further information about this product, please refer to the Data Sheet under Downloads

ROADINGER Swivel Castor 100mm BLUE WHEEL with brake

100 mm swivel castor

  • Double-action brake (wheel and swivel)
  • Double ball race
  • Housing made of steel, zinc-plated
  • Roller race hub bearing
  • Replaceable bolt-on wheel
  • Carrying capacity: 450 kg per set (4 castors)
  • Made in Germany
  • For further information about this product, please refer to the Data Sheet under Downloads

ROADINGER Bolt Set for Wheels

Complete set (4 x screw, 4 x nut, 4 x washer)

  • Screw: hexagon screw M8 x30 DIN933 galvanized
  • Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
  • Washer: size 8.4 DIN125 electrogalvanized

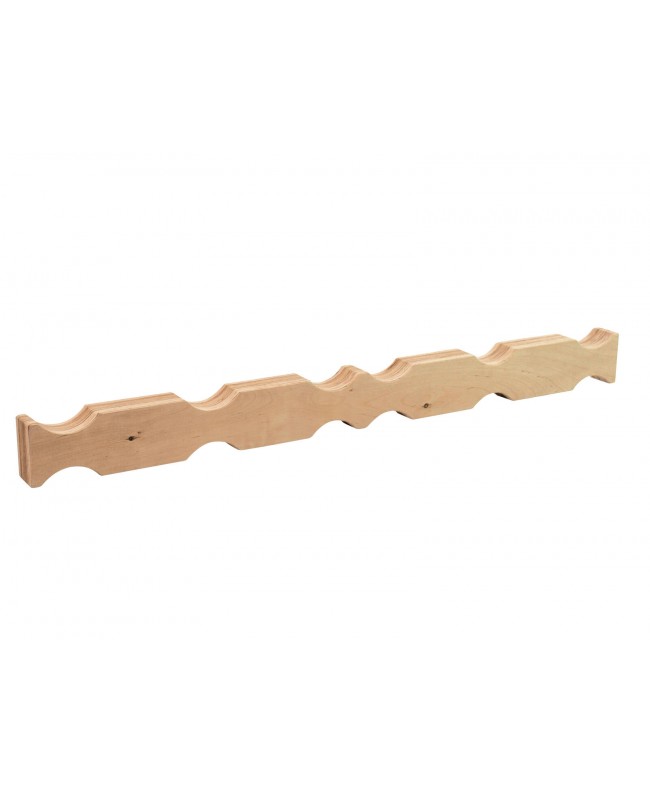

ALUTRUSS Truss Transport Ridge Combo

Stacking rail for QUADLOCK and TRILOCK truss elements

  • Stacking ridge for quick and secure stacking of truss elements on matching transport carts
  • Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
  • Made in Germany

SHZ Clamping Belt S400 Ratchet 5m/25mm black

Clamping belt

  • LC400/800daN surroundings
  • Complies with EN 12195-2
  • Ratchet lock


Scope of delivery

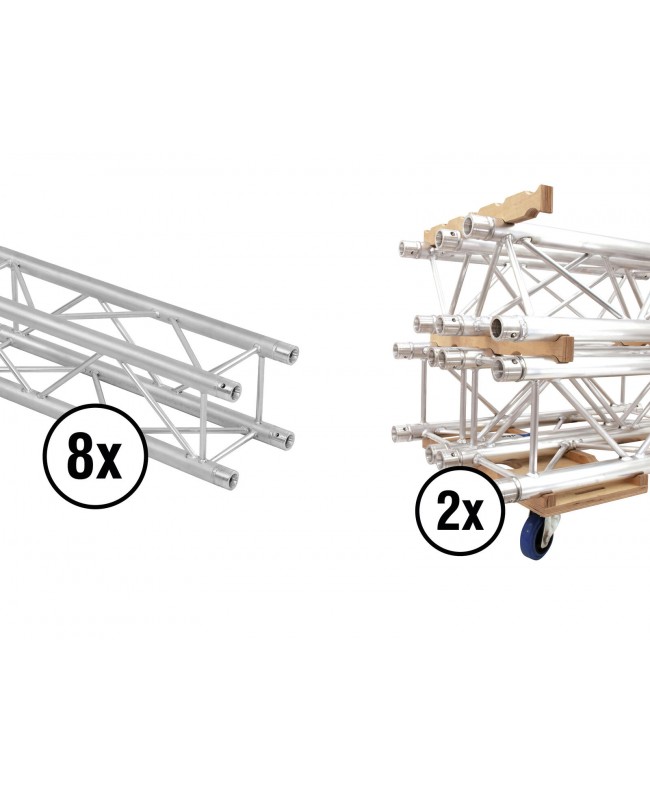

8 x ALUTRUSS QUADLOCK QL-ET34-2000 4-way Cross Beam

  • 1 x connection set
  • Weight: 103.58 kg
  • Setup: Easy installation
  • Trusspipe: 50 mm x 2 mm
  • Welding technique: TIG-welding
  • Welding material: AlMg 5
  • Alloy: AIMgSi1 T6
  • Color: Alu colored
  • Dimensions: Length: 200 cm, Width: 29 cm, Height: 29 cm
  • Weight: 11.2 kg
  • Maximum load: 6 truss systems vertical (height approx. 2.10 m)
  • Dimensions: Length: 60 cm, Width: 30 cm, Height: 4.10 cm
  • Weight: 2.19 kg
  • Color: Light blue
  • Dimensions: Height: 12.8 cm, Diameter: Ø 10 cm
  • Weight: 0.66 kg
  • Color: Light blue
  • Dimensions: Height: 12.8 cm, Diameter: Ø 10 cm
  • Weight: 0.93 kg
  • Weight: 0.09 kg
  • Material: Birch multiplex, 30 mm
  • Dimensions: Length: 60 cm, Width: 3 cm, Depth: 5 cm
  • Weight: 0.50 kg
  • Standard: EN 12195-2,
  • Lock: Ratchet lock
  • Color: Black
  • Dimensions: Length: 500 cm, Width: 2.50 cm
  • Weight: 0.30 kg
