Blackmagic Design ATEM 1 M/E Advanced Panel 20 Production Mixers & Switchers
  • -24%

Blackmagic Design ATEM 1 M/E Advanced Panel 20

€5,021.00
€3,798.00 -24%
Tax included
Lowest price within the last 30 days: €3,798.00

Larger 1 M/E hardware panel with 20 input buttons and 2 system control LCDs, plus buttons for control of 4 upstream keyers, 4 downstream keyers and 4 M/E rows. Includes a joystick and T‑bar fader.

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 21/10/2025? Order within 0 hours and 21 minutes

Free shipping

Compare

wishlist

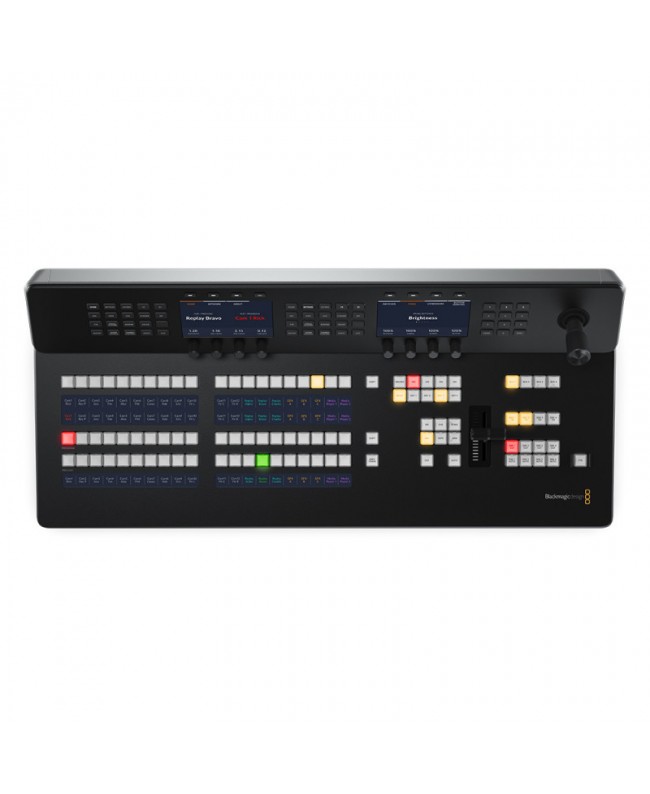

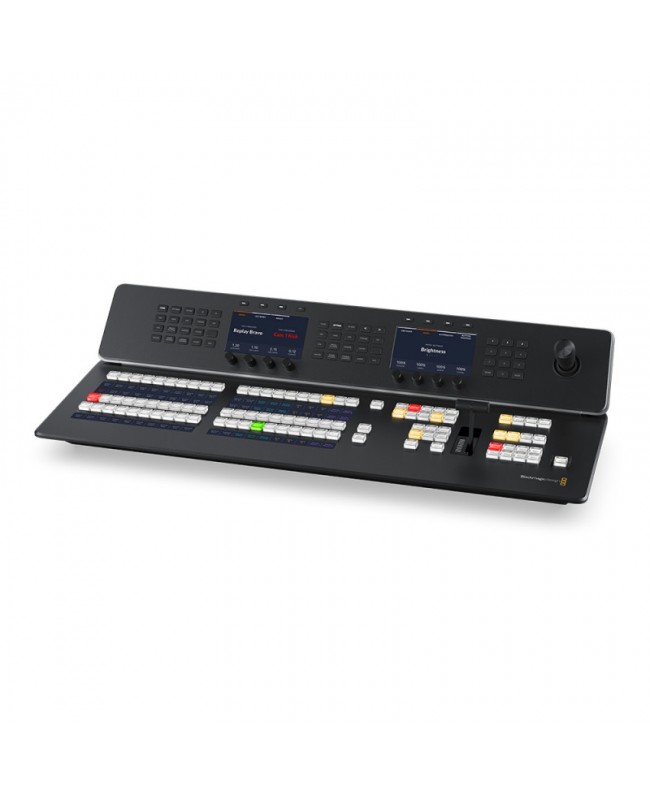

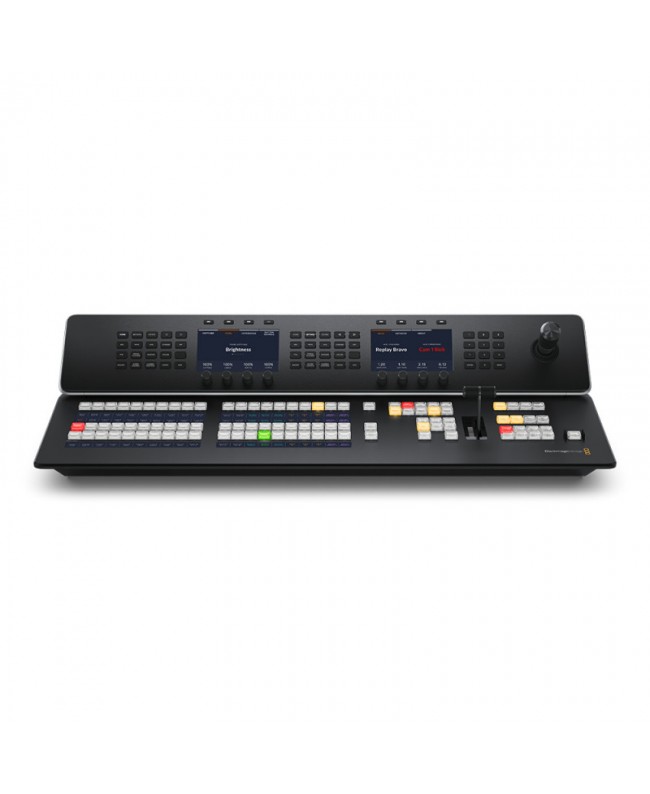

Blackmagic Design ATEM 1 M/E Advanced Panel 20



The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy and the built-in 4 port Ethernet switch means no additional network equipment is needed so it will fit even the most challenging live production spaces!

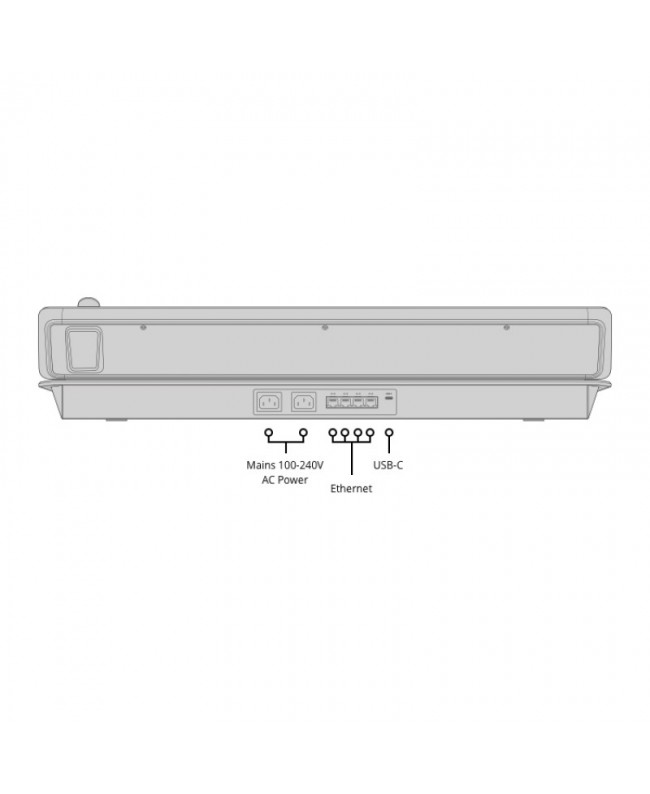

Connections

  • Ethernet
  • 4 x 10/100/1000 BASE-T with loop output
  • for additional control panels or computers.
  • Software Updates
  • 1 x USB-C for firmware updates.

Product Specifics

  • Number of Mix Effects Rows 1
  • Direct Cross Points 20
  • Shifted Cross Points 40
  • Crosspoint Button Type Tri-Color LED
  • Preview Transition 1
  • Transition Rate Displays Via main menu
  • LCD Menu Displays 2
  • Menu Control
  • 2 x 20 buttons
  • Dedicated Macro Buttons 1 x 20
  • Transport Control Buttons 8
  • Destination Bus 1
  • Source Select Bus 1
  • Fader Bar 1
  • 3 Axis Joystick 1
  • Numeric Keypad 1

Software

  • Software Applications
  • ATEM Software Control Panel.

Power Requirements

  • Input Voltage 2 x Internal 100 - 240V AC.
  • Redundant Power Yes
  • Power Usage 75W

Environmental Specifications

  • Operating Temperature 0° to 40° C (32° to 104° F)
  • Storage Temperature -20° to 60° C (-4° to 140° F)
  • Relative Humidity 0% to 95% non-condensing

What's Included

  • ATEM 1 M/E Advanced Panel 20
  • Welcome wallet with QR code for software download


SWPANELADV1ME20

Data sheet

Giorni di elaborazione
10

Specific References
