Datavideo iCast 10NDI MKII Production Mixers & Switchers
  • -26%
  • New

Datavideo iCast 10NDI MKII


€4,337.00
€3,223.00 -26%
Tax included
Lowest price within the last 30 days: €3,223.00

4-Channel all-in-one streaming switcher with SDI, HDMI and IP inputs, built-in encoder and recorder, multiview output, Web UI control


Out of Stock

Free shipping


wishlist

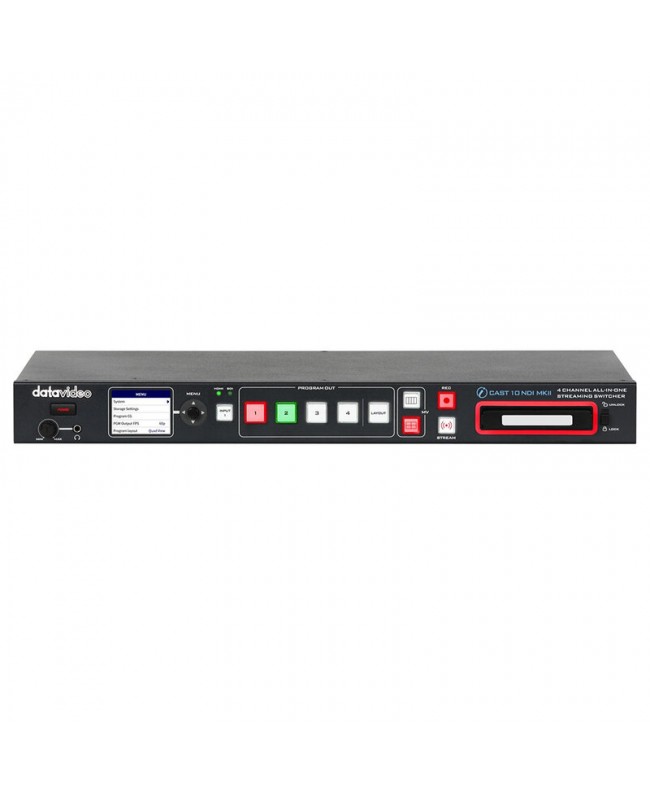

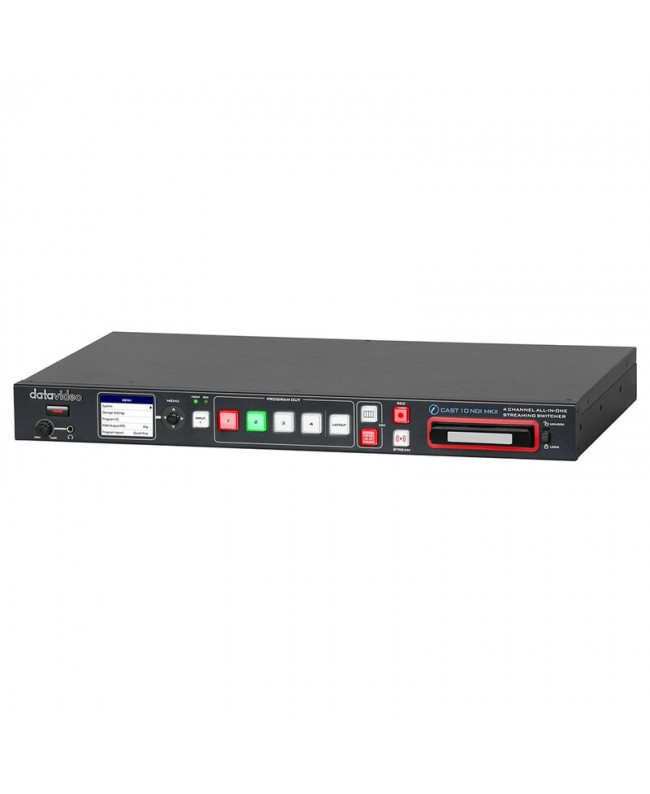

Datavideo iCast 10NDI MKII



I. CAST 10NDI MKII is an all-in-one switcher designed for hybrid production and streaming: it integrates a video switcher, controller, streaming encoder and recorder into a single device.

It allows you to simultaneously connect SDI, HDMI, IP (RTSP, SRT, NDI|HX), and computer sources, allowing you to easily and quickly manage presentations, PTZ cameras, and multimedia content. The built-in encoder allows you to stream the main program to multiple platforms and record directly to SSDs via the 2.5 and #34; SATA bay, ensuring efficient content storage and distribution.

The system supports HDMI multiview, picture-in-picture (PIP), logo insertion an internal audio mixer, and a wide range of streaming protocols, including RTMP/RTMPS, HLS, SRT, and Web. RTC, offering maximum operational flexibility. The 1U rack-mountable design and comprehensive Web UI management make the i. CAST 10NDI MKII an ideal solution for a variety of applications.

  • User benefits
  • An all-in-one device that integrates switching, streaming, and recording
  • Simultaneous support for SDI, HDMI, IP, and computers
  • Built-in encoder for cross-platform streaming
  • Direct recording to SSD via SATA bay
  • PIP, logo, and multiview management
  • Full control via Web UI
  • Areas of use
  • Hybrid events and conferences
  • Corporate and institutional productions
  • Classrooms and online training
  • Compact streaming studios
  • Houses of worship and live communities
  • Mobile control rooms for events and trade shows
  • Corporate
  • Technical characteristics
  • Video standard: HD and SD
  • Video format
  • Input: 1080p 60/59.94/50, 1080p 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50, 480i 59.94, 576i 50
  • Output: 1080p 60/59.94/50, 1080p 30/29.97/25/24/23.98, 1080p 30/29.97/25 (da 1080i), 720p 60/59.94/50, 480p 29.97, 576p 25 (non supporta interlacciato)

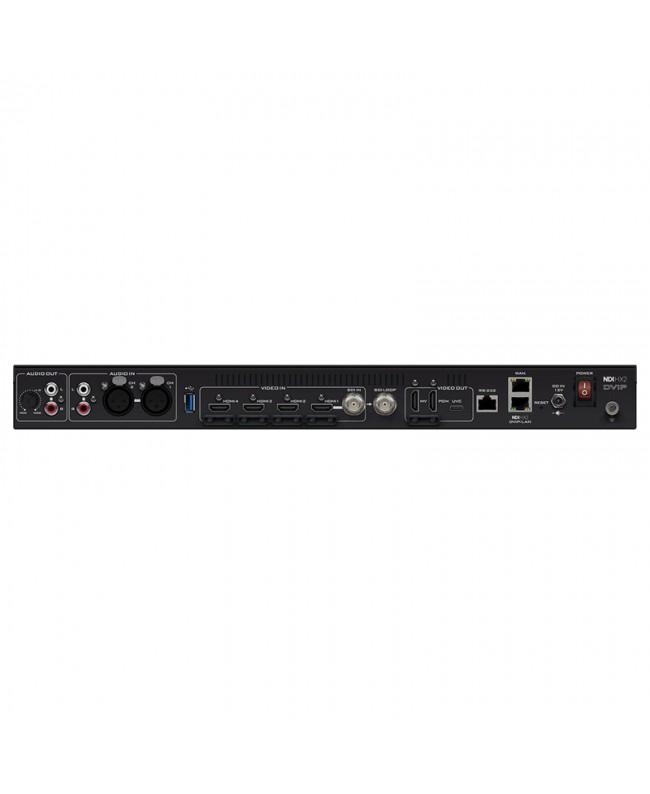

Video inputs

  • 1 x 3G/HD/SD-SDI (BNC 75 ohm)
  • 4 x HDMI 1.4 (CH1 selezionabile SDI/HDMI)
  • 3 x IP stream (RTSP/SRT/NDI|HX)
  • Mix HD and SD source: yes
  • Computer graphic interface: 4 via HDMI

Video outputs

  • 1 x SDI loop-through
  • 1 x HDMI 1.4
  • 1 x HDMI 1.4 Multiview
  • 1 x USB 3.0 UVC
  • 2 x RJ-45 (LAN and WAN, 10/100/1000M)
  • Down-converted output: 1080p
  • Built-in multiview monitoring out: 1 x HDMI
  • Analogue audio inputs: 2 x XLR balanced, 1 x RCA stereo, SDI embedded audio, HDMI embedded audio, IP audio (RTSP AAC-ADTS, PCM)
  • Analogue audio output: 1 x 3.5 mm headphone (PGM monitoring)
  • Audio delay calibration: 0 - 3000 ms per channel
  • Picture in picture: yes (PGM)
  • Logo insertion: yes
  • Effects: cut
  • PC remote control: Web UI, RS-232 (RJ-45)
  • Built-in audio mixer: yes
  • Storage: SATA 6 Gb/s
  • Recording file system: FAT, exFAT
  • Recording file format: MP4
  • Video encode: H.264
  • Audio encode: AAC-LC, 48 kHz 16 bit, bitrate 128K/256K/384K
  • Streaming protocol: DHCP client, TS over UDP (unicast and multicast), RTSP over HTTP/TCP/UDP, RTMP/RTMPS, HLS, SRT Caller/Listener, WebRTC (encode/decode), NDI|HX
  • Firmware update: Web UI, USB 3.0
  • Special features: vertical video crop/rotate, vertical video multiview
  • Power: 12 VDC 2 A (24 W)
  • Operating temperature: 0 to 40 °C
  • Chassis: 1U rack mount
  • Dimensions (w/o rack mount ear): 44 x 28.4 x 4.4 cm
  • Dimensions (with rack mount ear): 48.4 x 28.4 x 4.4 cm
  • Weight: 2.926 kg

What's in the box

  • ICAST 10NDI MKII
  • 1 x ICAST 10NDI MKII main unit
  • 1 x 12 VDC power adaptor
  • 2 x 1U rack mount ears
  • 6 x M4 screws
  • 1 x 2.5 Removable HDD/SSD enclosure
  • 4 x Screws for enclosure
  • 1 x Blank label
  • 1 x SATA to USB 3.0 cable

DTV-2200-4009
