Datavideo SE-500HD


€2,084.00
€1,550.00 -26%
Tax included
Lowest price within the last 30 days: €1,550.00

4-Channel 1080p HDMI video presentation switcher


Out of Stock

Free shipping


wishlist

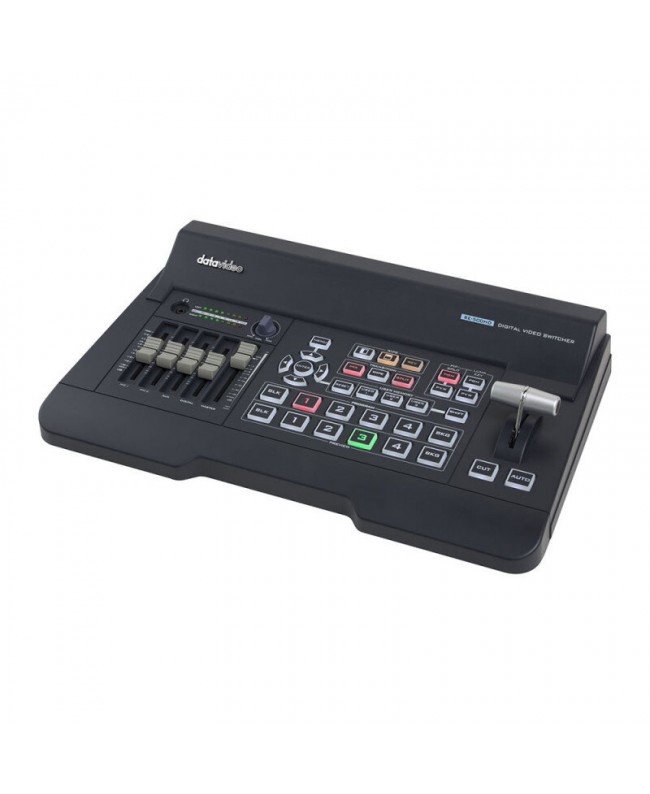

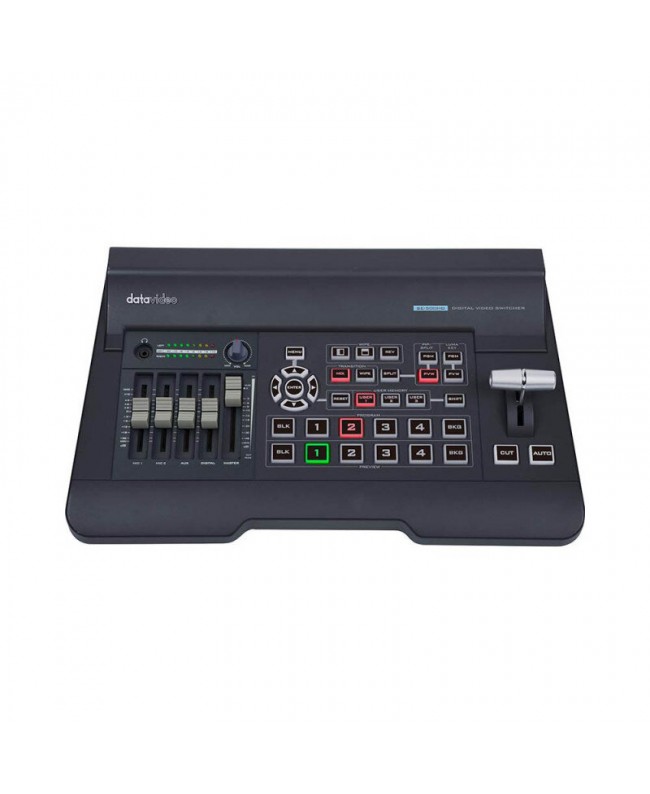

Datavideo SE-500HD



The SE-500HD is a small and affordable HD / SD video switcher with professional features and easy-to-use functionality.

It offers 4 HDMI inputs and 2 HDMI outputs, supports video formats up to Full HD 1080p, an audio mixer with microphone and unbalanced RCA audio inputs, RCA audio outputs, and other features including a Luma keyer, PIP, WIPE generator, and Tally.

  • Video standards: Full HD and SD
  • Video formats: 1080p 50 / 59.94 / 60 1080i 50 / 59.94 / 60 720p 50 / 59.94 / 60 576i 50 480i 59.94
  • Video processing: HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4

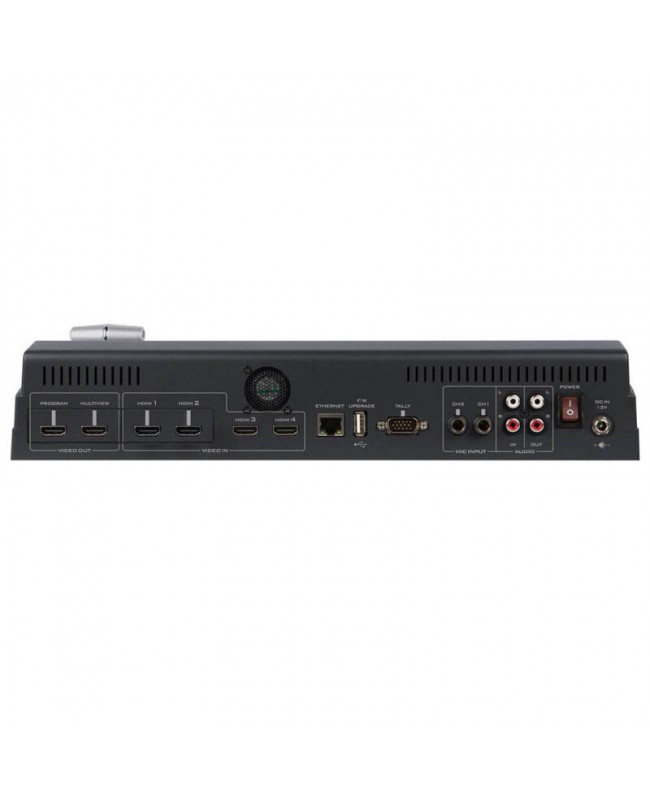

  • Video input: 4 x HDMI
  • Mix. hd and sd source: yes
  • Computer graphic interface: 4 via HDMI
  • Video output: 2 x HDMI (1 is MV, 1 is PGM)
  • Down-converted output: yes
  • Built-in multi-view monitoring out: HDMI
  • Analogue audio input: 1 x stereo RCA (L/R)2 x mono microphone
  • Analogue audio output: 1 x stereo RCA (L/R)1 x stereo headphone (mini-jack with volume control)
  • Embedded audio support: input 2 channels, output 2 channels
  • A+V switching: yes
  • USK: lumakey
  • Picture in picture: 1
  • Effects: FTB, cut, wipe with border
  • Sync / reference IN/OUT: Built-in genlock (internal)
  • Tally output: 1 x D-sub 15-pin, dual color
  • Built-in audio mixer: yes, 4 channels
  • Special features: built-in video scaler for mixed resolution inputs
  • Chassis: unibody
  • Power: 12 VDC 29 W
  • Operating temp. range: 0 - 40 °C
  • Options: CB-46 / 47 / 60 / 61 / 62
  • What's in the box: 1 x SE-500HD product1 x AD switch DC 12 V with AC cord1 x thank you card
  • Dimension (L x W x H): 40 x 25 x 8.2 cm
  • Weight: 1.7 kg

DTV-2200-5101
