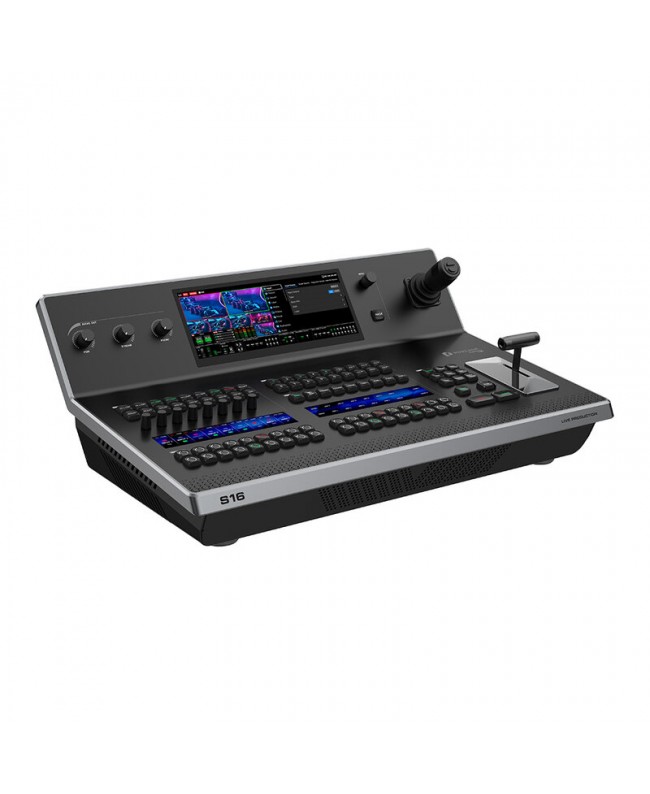

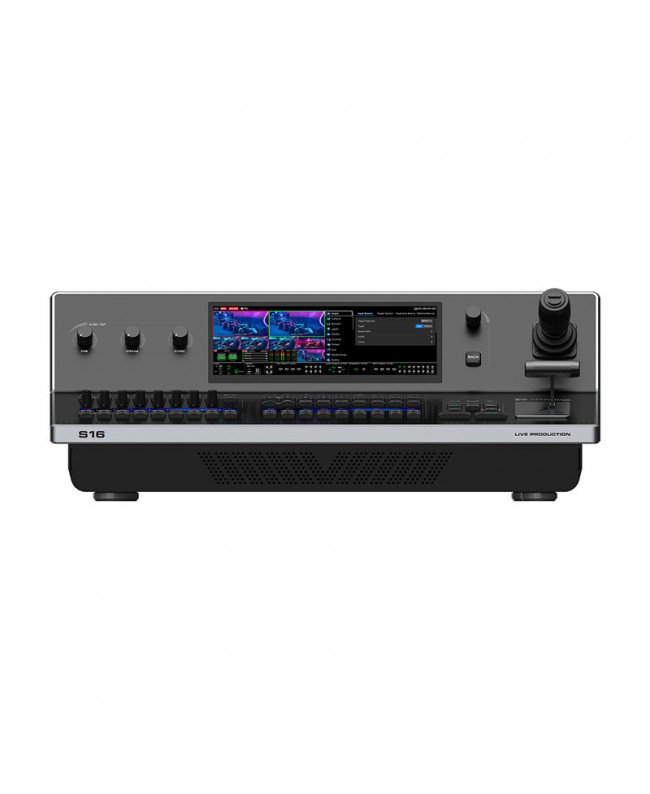

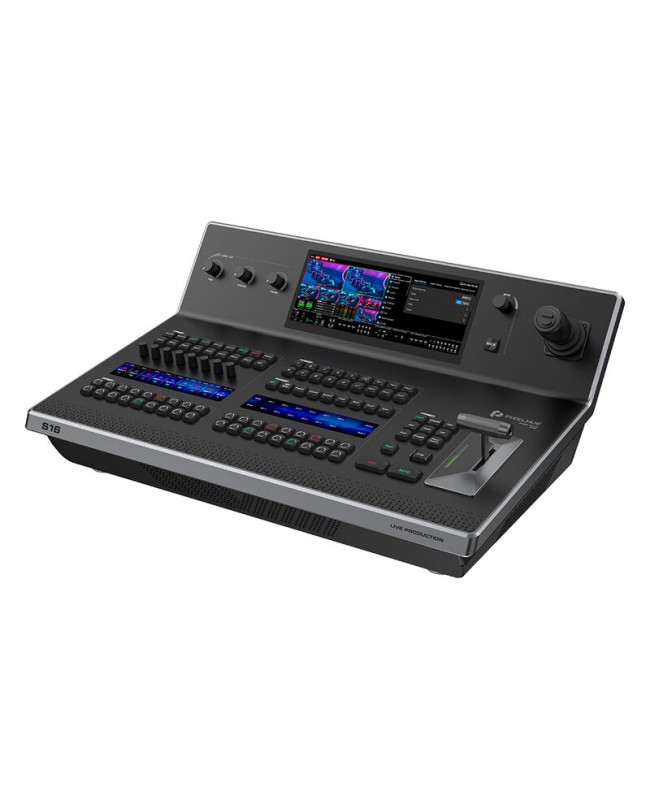

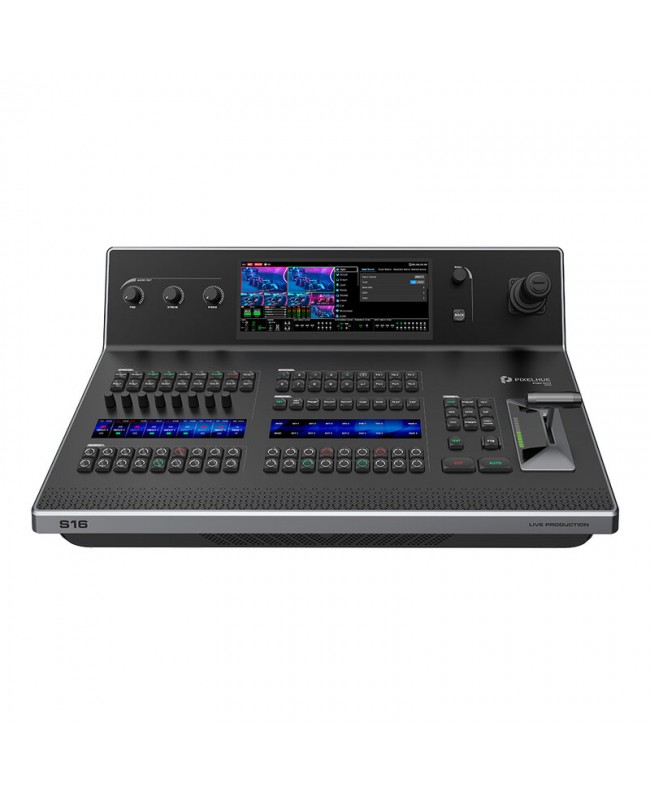

PIXELHUE S16 Live Production Switcher Mainframe

The S16 is a high-performance 4K live production switcher designed for broadcast and multimedia events. It supports inputs and outputs up to 4K, ensuring crisp images and flexible signal management with compatibility for UHD, FHD and custom resolutions. It features a 10.25 and #34; LCD display and a joystick for intuitive and precise real-time adjustments.

The advanced layering system includes 1 background, 4 upstream keyers, 2 downstream keyers, and 1 Super. Source, offering extensive creative options. The built-in streaming module allows up to 4 simultaneous RTMP streams and includes 1080p and #64; 60 Hz UVC output. Professional transitions such as MIX, DIP, and WIPE are also included, as well as a full audio department with XLR / jack, Dante, and dedicated monitoring inputs.

With its robust architecture, redundancy, and genlock compatibility, the S16 is designed for continuous operational stability and live production.

Added to these features is an extremely comprehensive connectivity system, with up to 16 12G-SDI and 4 selectable HDMI 2.0 inputs, SDI / HDMI main outputs, 8 SDI aux inputs, and 4 HDMI aux outputs, as well as dual multiviewer outputs. The unit also features streaming and recording functions, a full-featured audio mixer, and a control panel with numerous buttons, encoders, T-bars, and status indicators for smooth, professional management of live productions.

• User benefits
• Intuitive control via LCD Multiviewer and joystick
• Integrated streaming of up to 4 channels of RTMP without additional hardware
• Full compatibility with 4K signals and custom resolutions
• Professional audio with XLR / jack, Dante, and dedicated monitoring
• Customizable presets for faster workflows
• Stable system with redundancy and Genlock support
• Flight case included
• Areas of use
• Manage complex productions with 16 SDI inputs and advanced keying system
• Corporate
• Conferences
• Mobile productions
• Broadcast VAN
• Cultural and creative events
• Sports and competitions
• Education
• Temporary installations
