PROLIGHTS Astra Profile900 Profile Spots

PROLIGHTS Astra Profile900

€10,381.00
Tax included

900W high output Profile Moving head, with 185mm optics and 5° - 52° zoom

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 26/03/2025? Order within 1 hours and 11 minutes

Free shipping

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

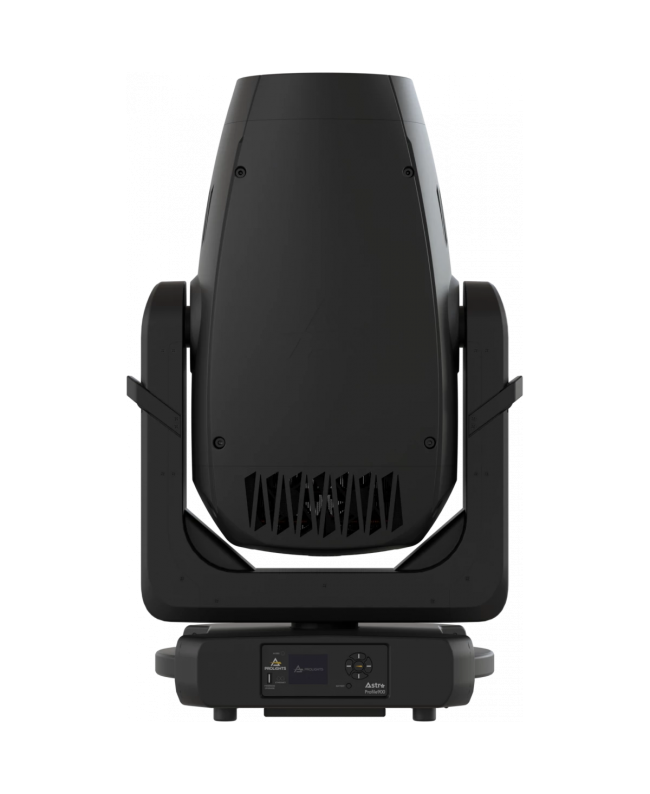

PROLIGHTS Astra Profile900







The Astra Profile900 is a flagship, high-power profile moving head designed for large-scale live productions, studios, and theaters. Powered by a 900W LED source, it delivers an impressive 43,000-lumen output (as measured by photogoniometer), making it an exceptional key light for any major production.

Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.

For precise color control, the Astra Profile900 features linear CMY+CTO mixing and a color wheel with a high-CRI filter, delivering vibrant tones and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs.

Main features:

  • 900W 7000K White LED source, featuring 43.000 fixture lumen output (goniometer)
  • 185mm front lens with a 5°-52° zoom
  • MotiOs enhances motion speed, precision, and responsiveness across motorized features
  • CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris

Main features:

  • 3.200 K (TU) and 5.600 K (DY) versions available.
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30).
  • Silent operation and compatible with industry standard accessories.

TECHNICAL SPECIFICATIONS

LIGHT SOURCE

  • Source: 91x3W high-power white LED
  • CCT: (TU) 3.200 K - (DY) 5.600K
  • Luminous flux: (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670lm @full
  • Luminous flux: (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
  • Lux: (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419lx @5 m full
  • Lux: (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494lx @5 m full
  • CRI: (TU) >98; (DY) >97
  • R9: (TU) >91; (DY) >97
  • TLCI: (TU) >98; (DY) >98
  • TM30 Rf: (TU) >94; (DY) >91
  • TM30 Rg: (TU) >99; (DY) >99
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories

COLOUR SYSTEM

  • Colour mixing: static white

DYNAMIC EFFECTS

  • Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Output (at 230V): 11 units on a single power line
  • Power factor: 0,97

PHYSICAL

  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 265x259x540mm / 10.43''x10.2''x21.26''
  • Weight: 7,3kg / 16.09lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ECLFW
  • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
  • User Manual

ASTRAPROFILE900
