PROLIGHTS EclProfile CT+HP Profile Spots

PROLIGHTS EclProfile CT+HP

€1,886.00
Tax included

6-color 450 W LED shaper, compatible with PRL and PRLZ lenses

Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 6 hours and 52 minutes

Free shipping

Compare

wishlist

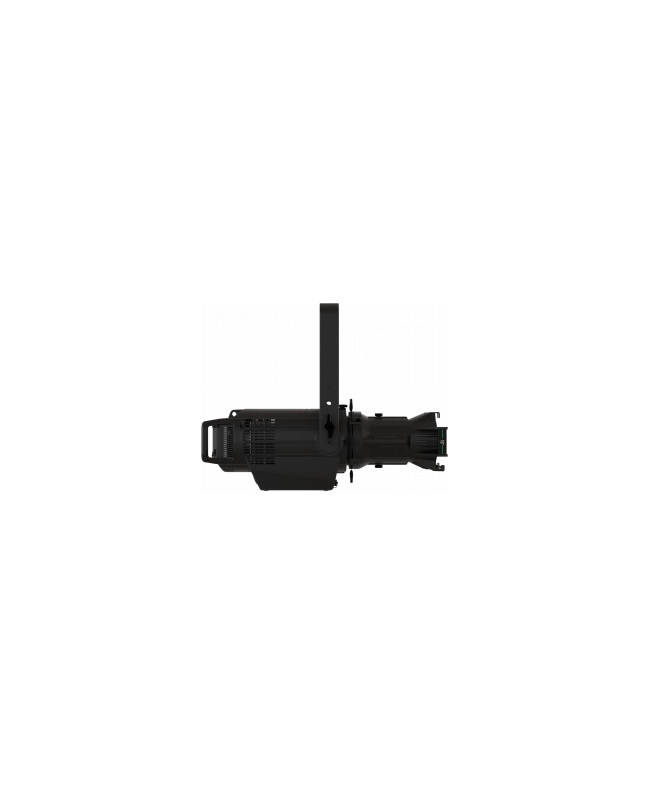

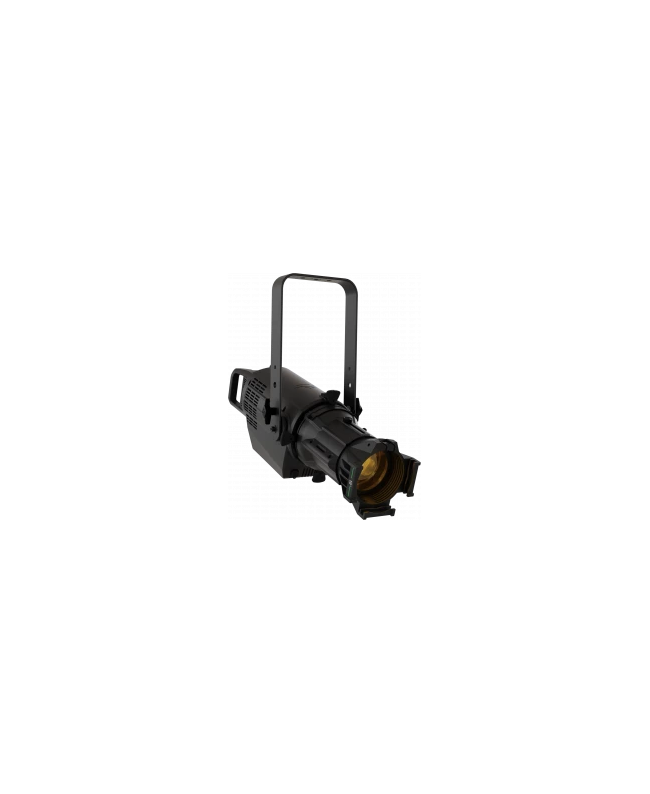

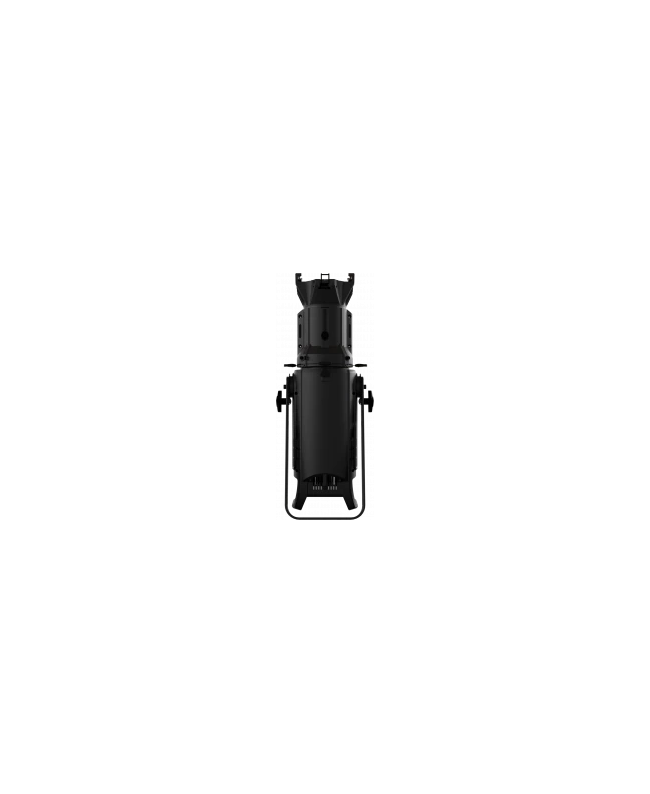

PROLIGHTS EclProfile CT+HP







EclProfile CT+HP is the high-performance version of the legendary PROLIGHTS LED shapers, developed in an IP65 version for indoor and outdoor use. With 450W of power, this luminaire doubles the light output to 14,000 lumens and further improves the color rendering, while maintaining the proven 6-color LED source of the CT+ series.

Designed for longer throws and high-altitude locations, the EclProfile CT+HP is the ideal replacement for traditional 750W HPL and 2kW tungsten lamps. It is ideal for theaters, TV studios, auditoriums and large venues. The fixture integrates the latest generation of Spectra OS, offering advanced color mixing capabilities, precise CCT reproduction and an advanced user interface. The new 2.4-inch display, combined with four backlit and pressure-sensitive encoders, guarantees smooth operation in multiple operating modes.

Despite the increased performance, the luminaire retains compact dimensions and full compatibility with industry-standard optics and accessories, including PRL and PRLZ lenses (both fixed and zoomable). This ensures smooth integration into existing inventories and makes EclProfile CT+HP a versatile and cost-effective solution for a wide range of lighting needs.

Key features:

  • 450 W IP65 LED shape light, 6-color LED source
  • Spektra OS for high-quality CCT reproduction and advanced color control

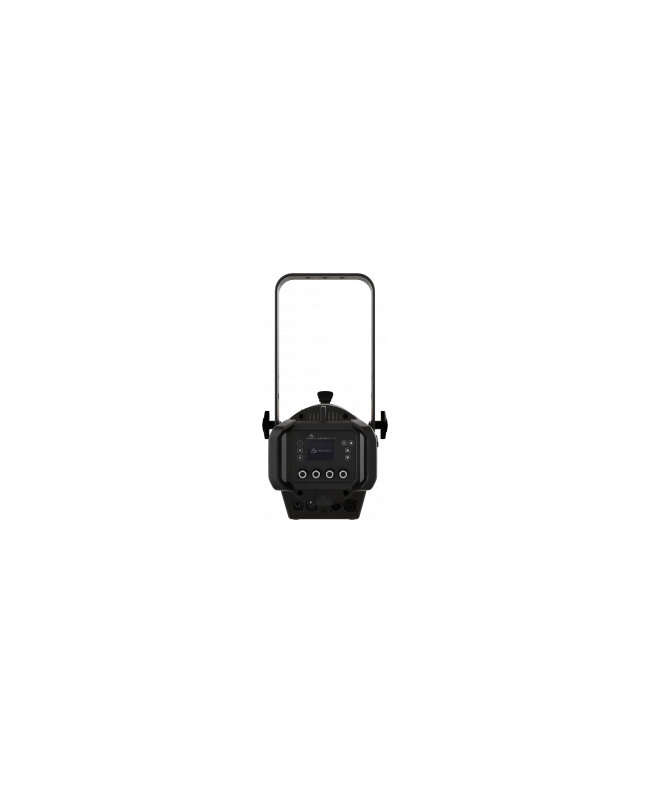

  • Advanced user interface with 2.4” display and 4 backlit, pressure-sensitive encoders
  • Compatibility with PRL and PRLZ lenses (fixed and zoom)

Technical specifications

LIGHT SOURCE

  • Source: 450W 6-color LED source
  • Luminous flux: 14000 lm
  • CRI: 96
  • R9: 97
  • Average source life: > 50,000 h

OPTICS

  • Lens type: optical unit composed of HQ glass lens
  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories

COLOR SYSTEM

  • Color control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
  • CCT: CCT control range from 1,800K to 20,000K, +/- green correction, tungsten emulation
  • Color wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable

DYNAMIC EFFECTS

  • Rotating gobos: optional, see available accessories
  • Gobo sizes: B, outer: 86 mm - image: 64.5 mm - thickness: 1.1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel for fading from any white macro to any color; virtual CTO on colors

BODY

  • Body: Weatherproof IP65 construction in die-cast magnesium alloy
  • Color: RAL 9004

CONTROL

  • Protocols: DMX512, RDM, CRMX
  • Stand Alone: 4 RGB backlit encoders with button
  • DMX channels: from 1 channel to 30channel
  • Wireless control: integrated, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth supported
  • RDM: RDM for remote control and settings of the fixture
  • Display: Graphic User Interface
  • Firmware update: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) via dedicated software
  • Master/Slave: for controlling multiple units connected in a chain

ELECTRONICS

  • Dimmer: 0 ~ 100% linear, electronic
  • Dimmer curves: 4 selectable dimmer curves
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° C / +45° C (-4° F / + 113° F) Ta
  • LED control: flicker-free operation
  • Selectable PWM: 600 ~ 40,000 Hz

POWER SUPPLY

  • Power supply: 100-240V - 50/60Hz
  • Maximum power consumption: 470W
  • Standby power: 11.3 W
  • Output (at 230V): 7 units connected in series
  • Power factor: > 0.94

PHYSICAL CHARACTERISTICS

  • IP Rating: 65 for temporary outdoor installations, not fixed
  • Cooling: heat pipe and silent fan dissipation system
  • Suspension and mounting: bracket for suspension and positioning
  • Signal connection: Seetronic XLR 5p IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN/OUT
  • Dimensions (WxHxD): 292x267x628mm / 11.5''x10.51''x24.72''
  • Weight: 8.5kg / 18.74lbs

CERTIFICATIONS / APPROVALS

  • certifications / Approvals: CE, RCM

BOX CONTENT

  • 1 x ECLCTPLUSHPIPBK
  • 1 x 1.5 meters 3G1.5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector
  • 1 x User Manual

ECLCTPLUSHPBK

Data sheet
