Prolights Astra Profile 1200IP


€10,902.00
Tax included

1200W White LED source 7000K, 54.000 lumen output


Qty

In Stock

Delivery

Do You want Your order by Tuesday, 20/01/2026? Order within 4 hours and 57 minutes

Free shipping


wishlist

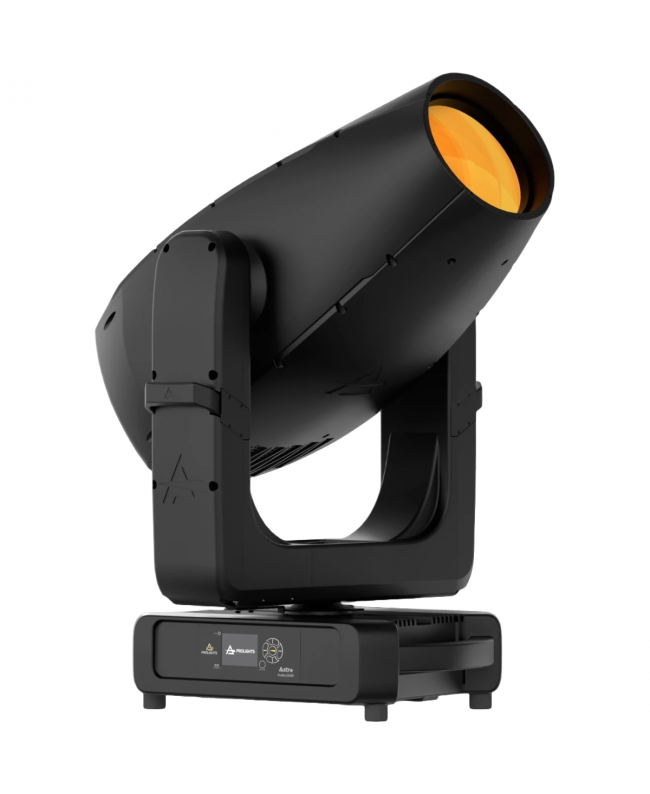

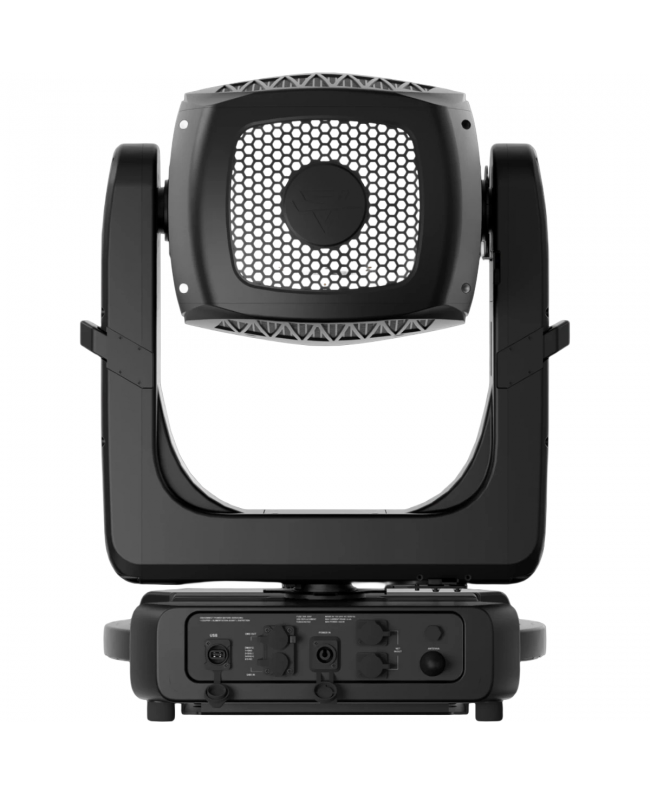

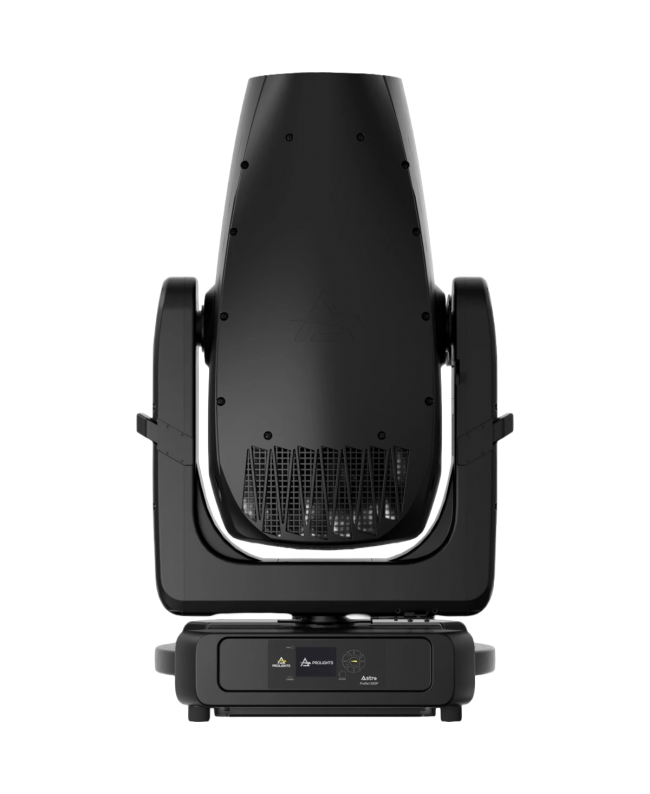

Prolights Astra Profile 1200IP







The Astra Profile1200IP is an advanced, large format IP65 LED moving profile, engineered to be bright and offer robust performance under any indoor and outdoor conditions. This unit boasts a stunning 54.000 lumen (fixture output with goniometer), ensuring exceptional brightness. The large 185 mm front lens projects a full and consistent beam of light, adjustable from 5° to 50° via its motorized zoom system and precision internal optics being an ideal for use as key light. The Astra Profile1200IP's comprehensive features include linear CMY+CTO color mixing and a dedicated color wheel, dual rotating gobo wheels and a 4-layer framing shutter system on individual planes and capable of producing a curtain effect. Additionally the effect section includes an animation wheel, dual frost filters, dual prism, and a motorized iris, enhancing its flexibility and creative potential. For seamless integration and user convenience, the Astra Profile1200IP is equipped with CRMX wireless connectivity and supports multiple ethernet protocols, making it a versatile and user-friendly choice for various settings.

  • CCT: 7.000K
  • CRI: > 70 (CRI > 90 with High CRI filter on color wheel)
  • Zoom range: 5,4° - 51° Motorised linear zoom
  • Lens diameter: 185 mm / 7.28''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: Motorised
  • Colour mixing: Linear CMY
  • CCT: Linear CTO correction 2.700 K ~ 7.000 K
  • Colour wheel: Open + High CRI filter + 5 colour filters
  • Control Resolution: 16-Bit dimmer
  • Shutter system: 4 Shutter blades with position and 30° angle adjustment, 45° rotation of the complete framing system
  • Animation wheel: Animation wheel with CW and CCW rotation
  • Rotating gobos: 6 Rotating gobos + open, interchangeable, indexing
  • Gobo size: Preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
  • Rotating gobos: 6 Rotating gobos + open, interchangeable, indexing
  • Gobo size: Preliminary data: outer: 30 mm - image: 25 mm - thickness: 1,1 mm
  • FX generator: Prisms overlap for spectacular aerial effects
  • Circular prism: 4F with bi-directional rotation, indexing
  • Linear prism: 6F with bi-directional rotation, indexing
  • Frost: Dual frost filter, soft-edge and heavy (one interchangeable)
  • Iris: 5 - 100% Motorised iris
  • Hardware on-board: Ancor points on the front for accessory mounting
  • Pan range: 540°
  • Tilt range: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: Automatic repositioning after accidental movement
  • Body: Weatherproof IP65 construction
  • Body colour: Black
  • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
  • DMX channels: 45Channel
  • Wireless Control: Included LumenRadio Timo Fx DMX/RDM receiver compatible with CRMX (Lumen Radio) and W-DMX (Wireless DMX)
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: Via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
  • Dimmer: Linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 Selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: Self-charging battery backup
  • Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
  • LED Control: Flicker free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 50.000 Hz
  • Mains power supply: 100-240 V - 50/60Hz
  • Max power consumption: 1843W
  • Standby power: 170 W
  • Output (at 230 V): 1 Units on a single power line
  • Power factor: > 0,96
  • IP rating: IP65 for temporary outdoor use (*)
  • Cooling: Combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: Any position with quick-lock omega brackets
  • Pan / tilt lock: For transportation and maintenance
  • Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
  • Data connection: IP65 Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Dimensions (WxHxD): 490 X 877 x 310 mm / 19.29''x34.53''x12.2''
  • Weight: 55 kg / 121.25lbs
  • NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
  • Certifications / Approvals: CE, RCM
  • BOX CONTENT: 1 X ASTRAPROF1200IP
  • 1 X 1,5 meters 3G2,5mmq power cable (BARE END: SEETRONIC POWERCON TRUE1 IP65 power connector)

ASTRAPROF1200IP

Data sheet

Miscellaneous
Suitable for outdoor use
Giorni di elaborazione
2

Specific References
