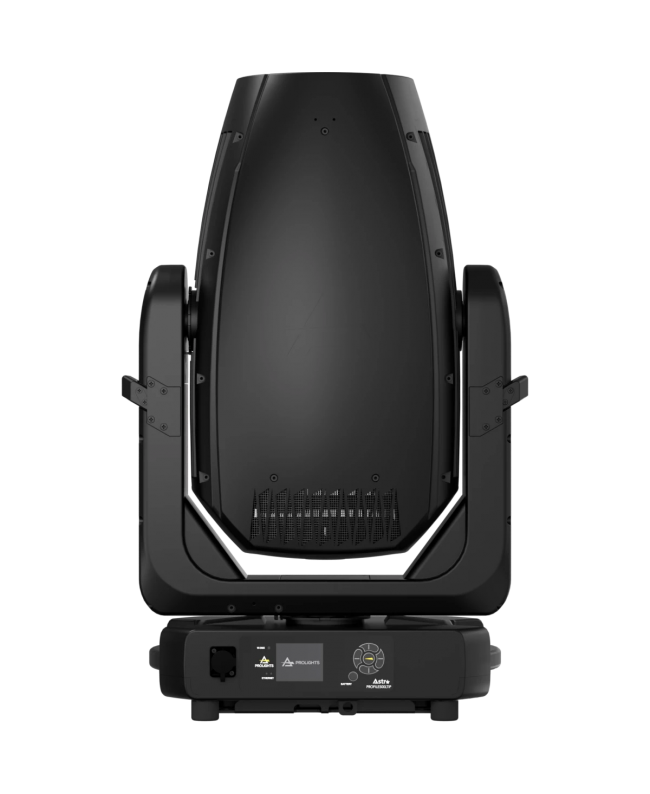

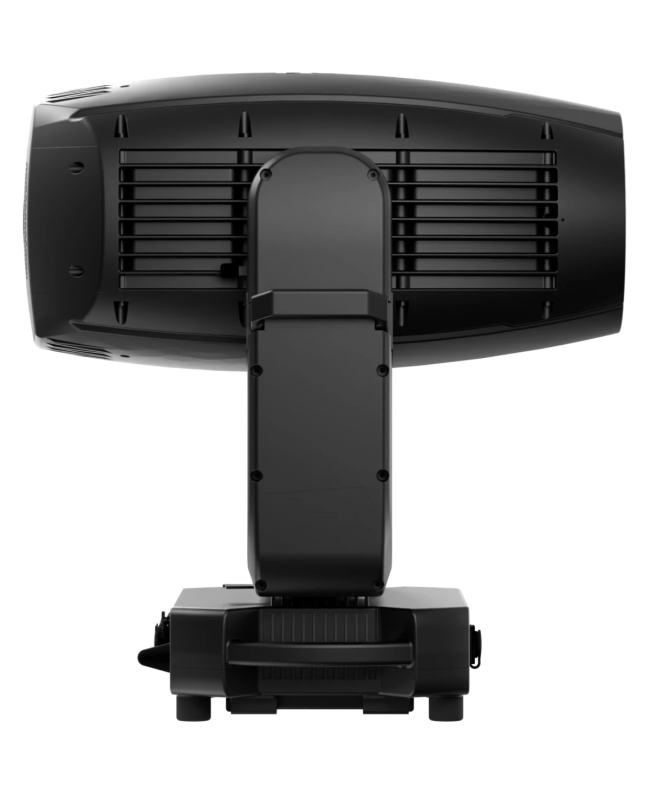

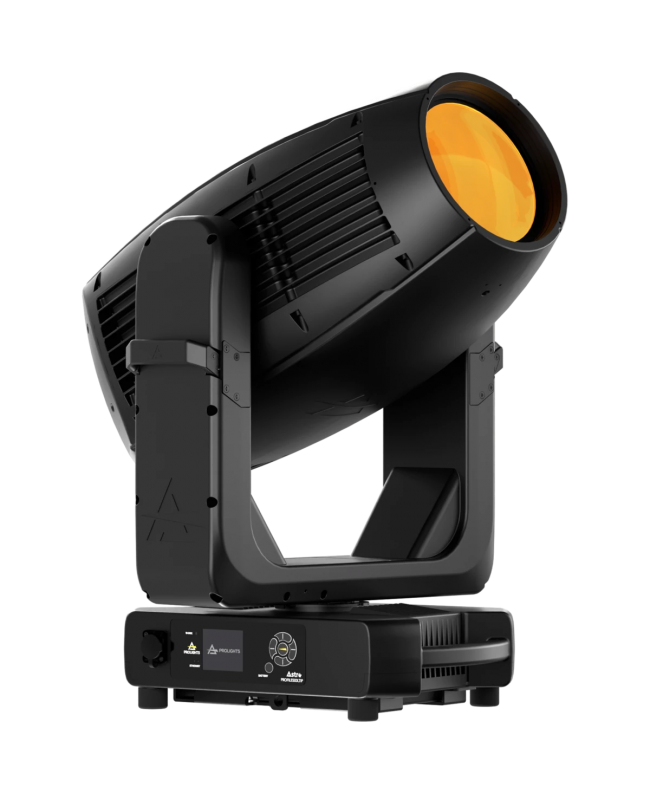

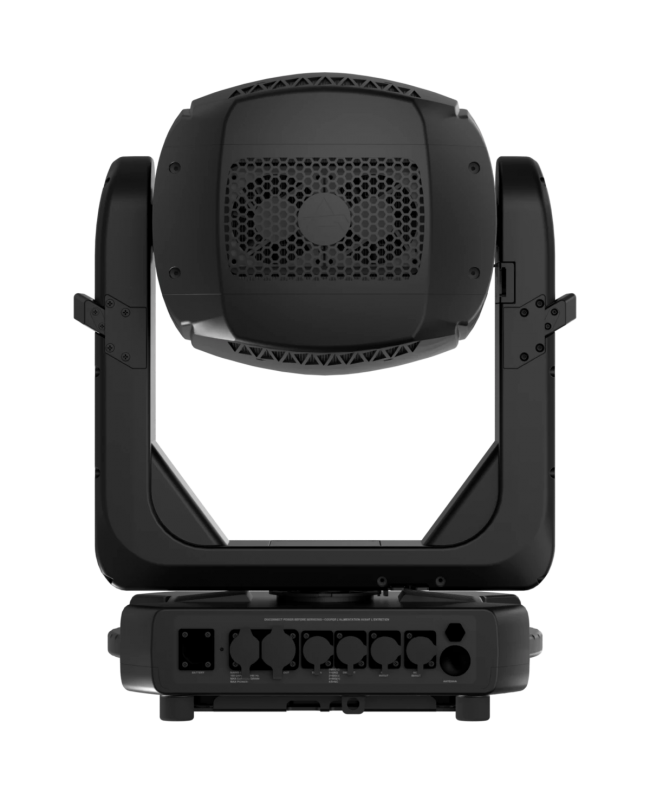

PROLIGHTS Astra Profile500LTIP


€6,722.00
Tax included

1000W 6-colour LED source with additive mixing, delivering >21,000 lm


Qty

In Stock

Delivery

Do You want Your order by Thursday, 23/04/2026? Order within 6 hours and 39 minutes

Free shipping


wishlist

PROLIGHTS Astra Profile500LTIP







Jet Beam120IP is a budget-friendly, high-power, laser-based IP65 beam moving head built to deliver impressive, powerful looks without breaking the budget. Designed for long-throw aerial effects, it delivers extreme intensity and razor-sharp definition for professional indoor and outdoor productions. A 120W phosphor-laser source (7.000 K) produces a tight 0.6° beam for maximum reach and contrast. Delivering over 200'000 lx at 15 m through a 143 mm front lens, Jet Beam120IP maintains a dense, parallel beam that stays clean and impactful over distance, with motorised focus for crisp output along the entire beam path. Its effects package is optimised for speed and clarity: a 24-filter colour wheel (including CTB/CTO), 29 fixed gobos, an animation wheel, dual frost, and a prism system with six prisms across two independent wheels for layered aerial textures. Built on a die-cast magnesium-alloy chassis with full IP65 construction, it's ready for demanding environments. Control is flexible via DMX/RDM, with optional CRMX wireless connectivity for large indoor and outdoor stage applications.

  • Source: 1000W 6 colour LEDs source with adjustable high color rendering
  • Zoom range: 5,9°- 49,7° Motorised linear zoom
  • Lens diameter: 150 mm / 5.91''
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: Motorised 16-bit
  • Spektra OS: Unmatched color precision and consistency
  • Colour control: XY, CCT, RGB, CMY, Gel Filters
  • Colour mixing: RGB / CMY / RAW
  • CCT: Linear control from 2.200K to 15.000K with color-to-CCT linear crossfade
  • Tungsten Emulation: Dimming with warm color shift simulation
  • Tint correction: Green correction adjustment
  • Colour wheel: Open+5 colour filters
  • Control Resolution: 16-Bit dimmer and color control
  • Shutter system: 4 Shutter blades with position and 35° angle adjustment, 60° rotation of the complete framing system
  • Animation wheel: Animation wheel with CW and CCW rotation
  • Circular prism: 4-F with bi-directional rotation, indexing
  • Frost: Linear 0-100% from soft-edge to heavy diffusion
  • Iris: 5 - 100% Motorised iris
  • Rotating gobos: 6 Rotating gobos + open, interchangeable, indexing
  • Gobo size: 26,9 mm outer / 20 mm image / up to 3 mm thickness
  • Rotating gobos: 6 Rotating gobos + open, interchangeable, indexing
  • Gobo size: 26,9 mm outer / 20 mm image / up to 3 mm thickness
  • Supported Protocols: DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX
  • DMX channels: 43 / 48 / 49 / 53Ch
  • RDM: For remote addressing and parameter configuration
  • Display: 2.4'' Color display
  • Pan: 540° - 16-Bit resolution
  • Tilt: 270° - 16-Bit resolution
  • Absolute position: Stationary reset without calibration movement
  • Position feedback: Automatic repositioning after external movement
  • Pan / tilt lock: For transport and maintenance
  • Dimmer: Linear 0 - 100% electronic dimmer
  • Dimmer curves: 5 Selectable dimming modes available
  • Strobe / shutter: 1-30 Hz, electronic
  • Display battery: Optional, self-charging battery backup
  • Selectable PWM: 600 To 50000 Hz (selectable steps)
  • Firmware upgrade: Via DMX with UPBOXPRO (not included) or via Ethernet with DMX-Workshop
  • Power connection: Neutrik powerCON TRUE1 IN connector
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Wireless Connection: Integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
  • Data connection: Amphenol RJ45 IN/OUT
  • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
  • Mains power supply: 100-240 V - 50/60Hz
  • Max power consumption (230 V): 1400W
  • Standby power: 154,5 W
  • Power factor: > 0.95
  • IP rating: IP20
  • Cooling: Heat pipe with low-noise fan
  • Housing: Aluminium structure with high-resistance polycarbonate cover
  • Finish: Black
  • Operating temperature: Ta -10 to +45 °C (+14 to +113 °F)
  • Dimensions (WxHxD): 416 X 730 x 331 mm / 16.38''x28.74''x13.03''
  • Weight: 34 kg / 74.96lbs
  • Suspension and fixing: Any position with quick-lock omega brackets
  • Hardware on-board: Ancor points on the front for accessory mounting
  • Other: Handle on the top of the arm for easy transportation
  • Compliance: CE, RCM, FCC, cTUVus
  • BOX CONTENT: 1 X MUSEP70CTP
  • 1 X 1,5 meters 3G1,5mmq power cable (BARE END: NEUTRIK POWERCON TRUE1 IP65)

ASTRAPROF500LTIP
