Datavideo PTR-10TMKII PTZ Cameras
  • -26%
  • New

Datavideo PTR-10TMKII

€4,666.00
€3,471.00 -26%
Tax included
Lowest price within the last 30 days: €3,471.00

HDBaseT robotic Pan / Tilt head

Out of Stock

Free shipping

Compare

wishlist

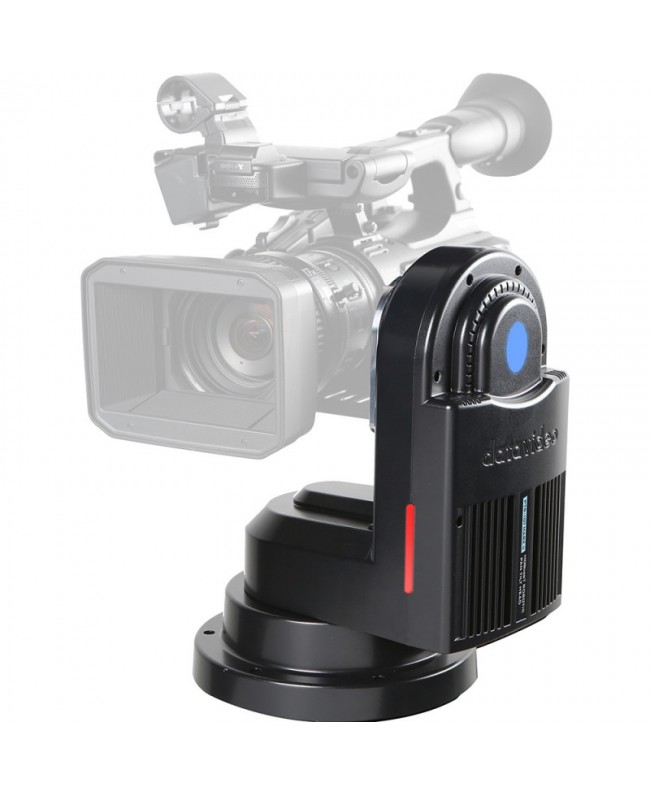

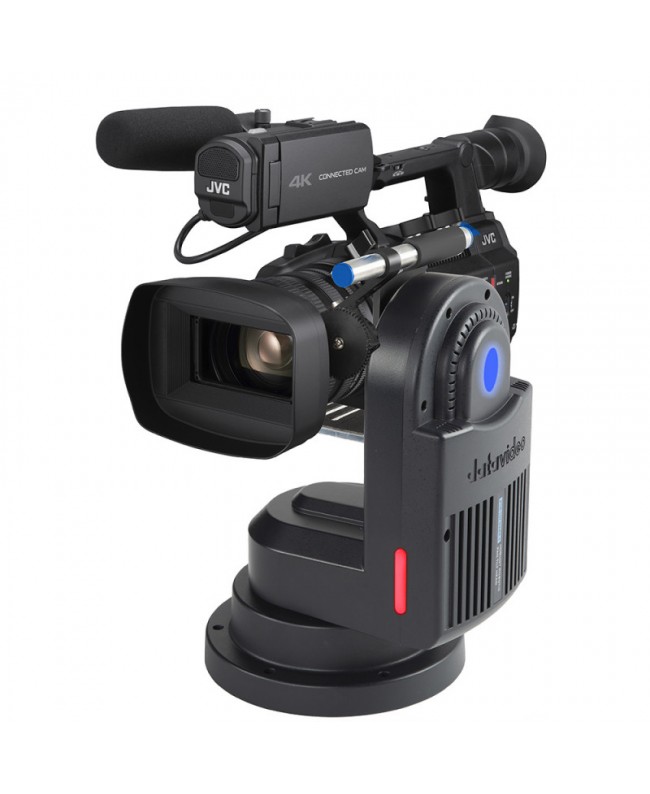

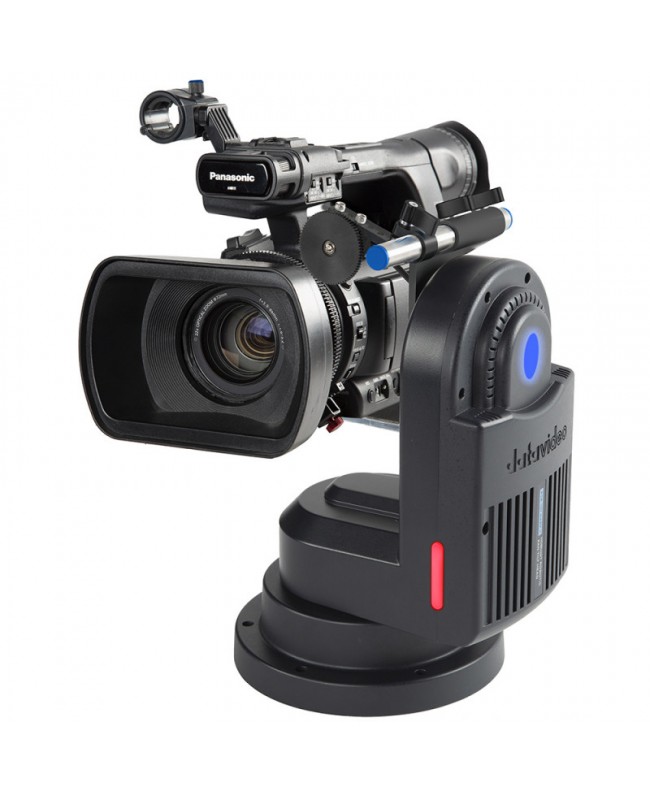

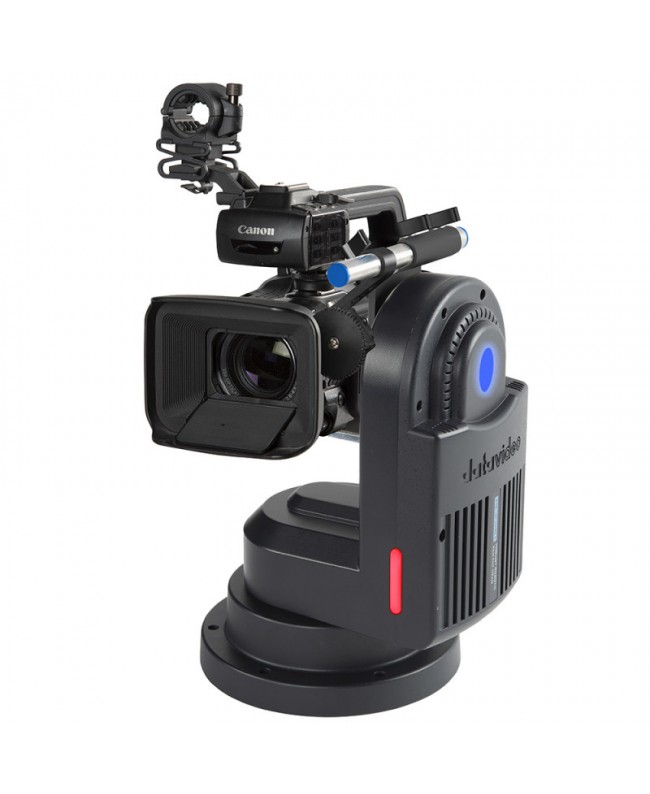

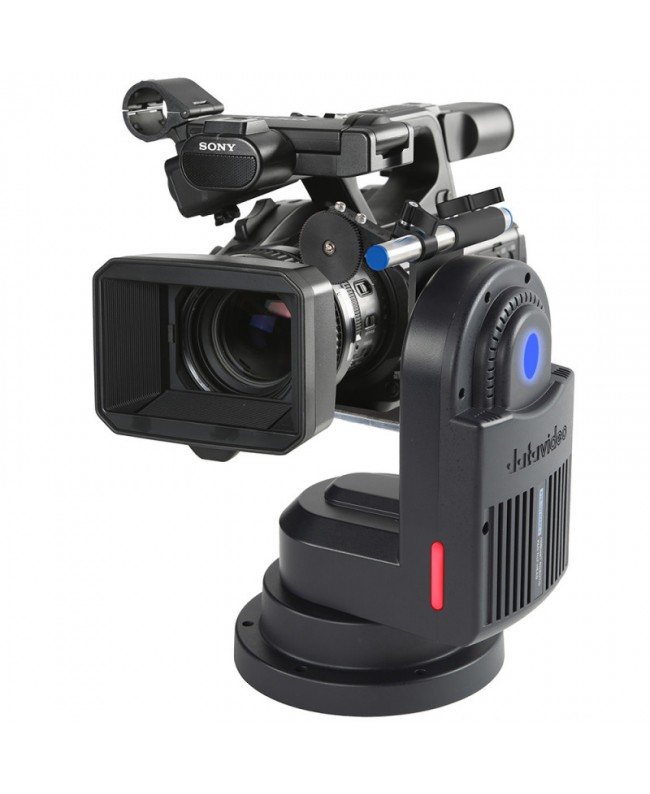

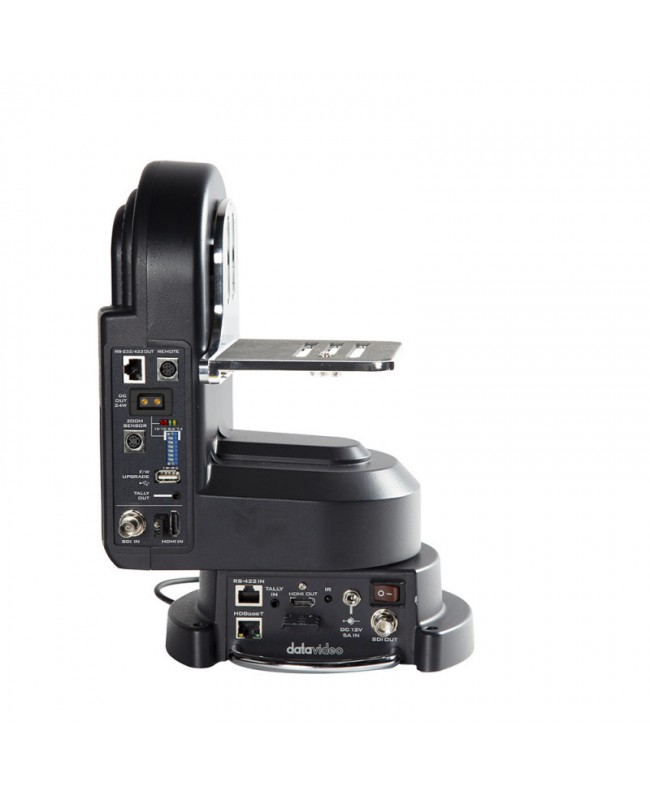

Datavideo PTR-10TMKII



The PTR-10T MARK II has the same features as the PTR-10 MARK II but with an HDBase. T interface. The usefulness of this model is especially evident in more complex installations, as with a single network cable the HDMI video signal is brought out of the camera, the power supply, the USB, the serial control cable and the net.

  • Video interface: HDMI x 1
  • SDI x 1
  • RJ45 x 1 (HDBaseT)
  • Video output: 2160p 29.97/25
  • 1080P 59.94/50
  • 1080I 59.94/50
  • 720P 59.94/50
  • Control unit: RMC-180
  • HS-1600T
  • HS-1600T Mark II
  • RMC-300A
  • VISCA Protocol Controller
  • IP Control
  • IR remote
  • Panning / Tilting range: Pan: 340°
  • Tilt: +-45°
  • Panning / Tilting speed: Pan: 0.2~15° / s
  • Tilt: 0.1~10° / s
  • Preset: Pan/Tilt position 50
  • Control distance: 1,200 m by RS422
  • 100 m by DVIP
  • Control Protocal: Sony VISCA
  • DVIP
  • Control input: RS-422
  • HDBaseT
  • Maximum load: 4 kg max.
  • Control output: RS-232
  • RS-422
  • BX-Lens
  • LanC
  • Power requirement: DC 12 V~ 18 V, 3 A (without camera)
  • DC 12 V~ 18 V, 5 A (with camera)
  • Power supply: DC 12 / 10 / 8.4 / 7.4 V, 24 W max.
  • Operating temp. range: 0~40 C°
  • Operating humidity range: 10~80%
  • Storage temp. range: -10~60 C°
  • Storage humidity range: 5~80%
  • Weight: 3.4 kg
  • Dimensions (L x W x H): 230 x 190 x 300 mm
  • What's in the box: PTR-10T Mark II main unit x 1
  • DC 12 V power adaptor x 1
  • AC cord x 1
  • IR remote control x 1
  • DC with lock to D-Tap cable x 1
  • HDMI cable x 1
  • SDI cable x 1
  • Remote cable (2.5 mm phone-jack to mini-DIN 8 pin) x 1
  • 1/4 Screw (14 mm) x 2
  • 1/4 Screw (10 mm) x 1
  • 1/4 To 3/8 screw adaptor x 1
  • PTR-10T Mark II Thank You Card x 1

DTV-7000-2056
