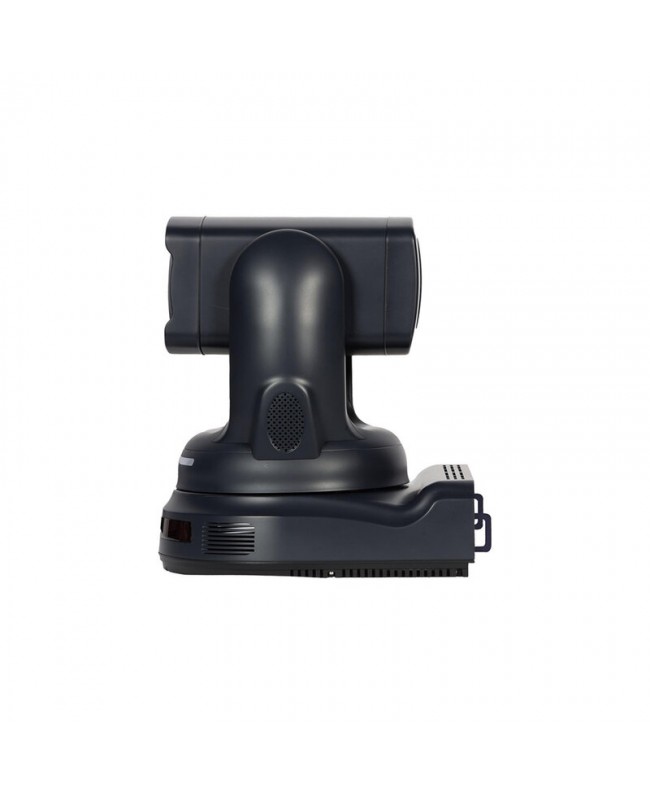

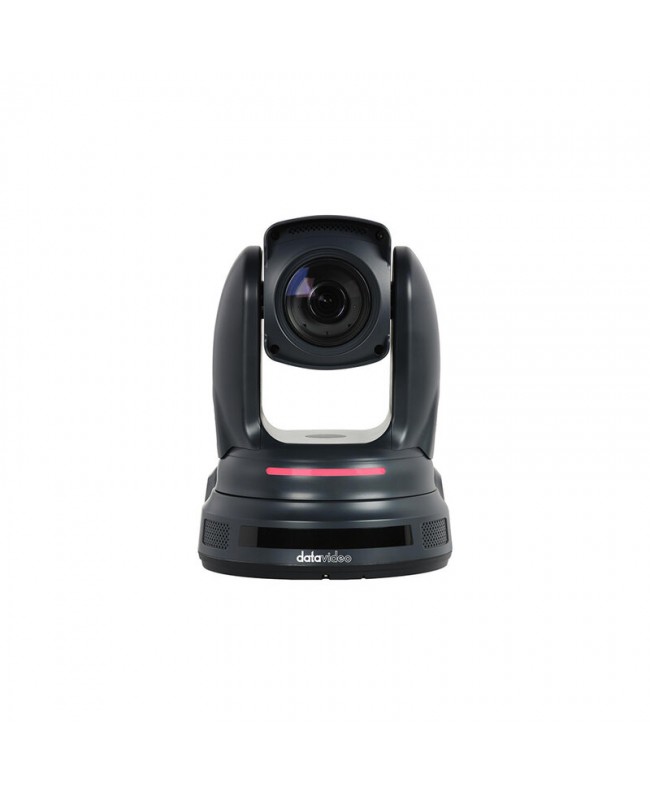

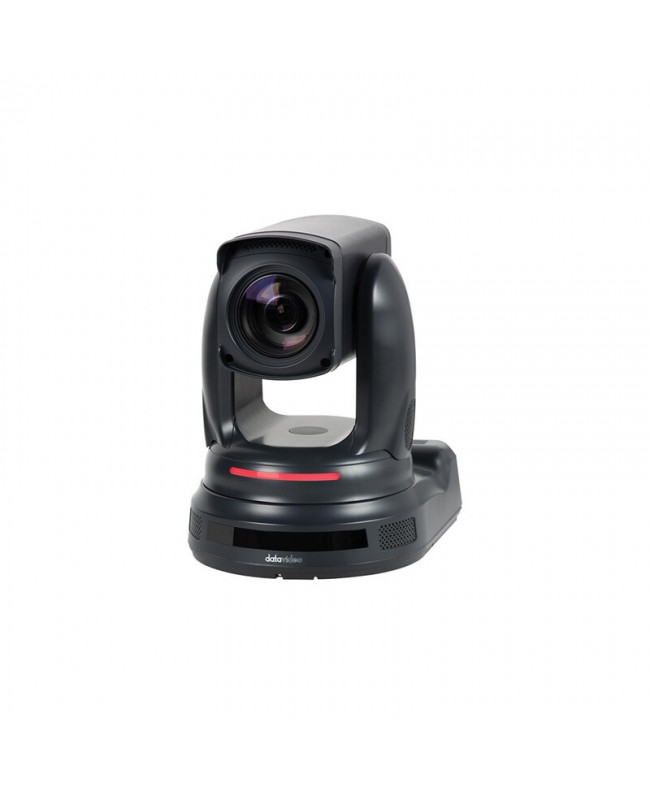

Datavideo PTC-600G


€5,940.00
€4,420.00 -26%
Tax included
Lowest price within the last 30 days: €4,420.00

4K 60 AI auto-tracking PTZ camera, 30x optical zoom, Sony 1/1.8 sensor, 12G-SDI/HDMI/NDI|HX3 outputs, PoE++


Out of Stock

Free shipping


wishlist

Datavideo PTC-600G



The Datavideo PTC-600G is a high-end 4K PTZ camera designed to ensure top-notch performance in even the most complex situations.

It is a solution designed for premium productions, where image quality, reliability, and advanced automation are essential. With superior build quality and an imaging system based on a 1/1.8 and #34; Sony sensor, the PTC-600G delivers excellent color rendition, low-light handling, and flawless definition even in challenging lighting conditions.

The powerful 30x optical zoom captures crisp detail even from long distances, while 4K 60 recording via 12G-SDI ensures a broadcast-quality video stream, ideal for multi-camera productions, live events, and high-end AV installations. The camera also features an AI auto-tracking system that automatically recognizes and follows the speaker or performer, maintaining a natural and stable shot without the need for a dedicated operator.

The PTC-600G offers a comprehensive set of connections: 12G-SDI, 3G-SDI, HDMI 2.0, NDI|HX3, USB-C UVC, and IP streaming, allowing integration into any workflow. From traditional broadcast to streaming on digital platforms. Po. E and #43; and #43; support simplifies installation, allowing power, control, and video transport over a single network cable.

The camera supports advanced protocols such as VISCA, VISCA over IP, DVIP, NDI, Free. D, and ONVIF, making it compatible with Datavideo controllers (RMC-2P, RMC-180, RMC-300) and third-party control systems.

With the combination of 4K image quality, intelligent tracking, extensive connectivity, and rugged construction, the PTC-600G represents a complete solution for high-end productions.

  • User benefits
  • Advanced AI auto-tracking for unmanned shooting
  • 30x Optical zoom with 4K 60 quality via 12G-SDI
  • 1/1.8 and #34; Sony sensor with excellent low-light performance
  • Outputs Simultaneous HDMI, 3G-SDI, 12G-SDI, NDI|HX3, USB-C UVC, and IP
  • Simplified installation via Po. E and #43; and #43;
  • Compatibility with Datavideo controllers and professional protocols
  • Simultaneous recording with main and wide-angle lenses
  • Remote management via Web UI and Datavideo software
  • Available in black or white
  • Areas of use
  • Auditoriums
  • Theaters
  • Stadiums and large venues
  • Conference rooms
  • Universities and large classrooms
  • Broadcast studios and 4K multi-camera productions
  • Houses of worship
  • Live events and professional streaming
  • Technical characteristics

Video formats

  • HDMI/12G-SDI: 2160p 60/59.94/50/30/29.97/25 (2160p 60/59.94/50 YUV 4:2:2), 1080p 60/59.94/50/30/29.97/25, 1080i 60/59.94/50, 720p 60/59.94/50
  • SDI: 1080p 60/59.94/50/30/29.97/25, 720p 60/59.94/50
  • Image sensor: Sony 1/1.8 CMOS, 8.42 Mpixel
  • S/N ratio: min. 55 dB
  • Min. illumination: 0.5 lux at F1.8 AGC ON
  • Electronic shutter: 1/30 s - 1/10,000 s
  • Zoom: 30x optical, 4x digital
  • Focal length: 6.91 - 214.64 mm, F1.35 - F4.6
  • Field of view: horizontal 60° (wide)
  • Gamma control: OFF/normal
  • Iris control: auto/manual
  • Noise reduction: 2D/3D
  • White balance: auto, indoor, outdoor, one push, manual
  • Focus mode: auto/manual/one push
  • Pan range: 340°
  • Tilt range: -20° - +105°
  • Pan speed: 0.1°/s - 100°/s
  • Tilt speed: 0.1°/s - 80°/s
  • Presets: 255

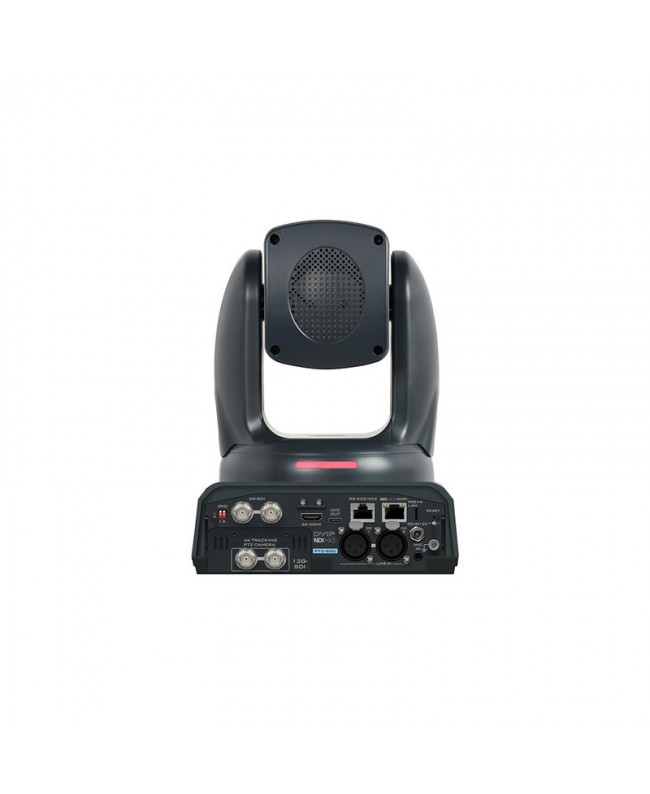

  • Video outputs: 1 x HDMI 2.0, 1 x 3G-SDI, 1 x 12G-SDI, 1 x RJ45 (NDI|HX3, PoE++), 1 x USB-C UVC
  • Audio inputs: 2 x XLR line IN, 1 x 3.5 mm mic IN
  • Audio compression: AAC (96/128/256 Kbps)
  • Tally: yes
  • Control protocols: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI, FreeD
  • Remote control: IR, Web GUI, RS-422/RS-232, DVIP, NDI
  • Video compression: H.264, H.265, MJPEG
  • Streaming protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|HX3
  • First stream resolutions: 3840 x 2160, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
  • Second stream resolutions: 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 720 x 408, 640 x 360, 480 x 270, 320 x 240
  • Video bitrate: 32 kbps - 50 Mbps
  • Bitrate mode: VBR, CBR
  • Encoding frame rate: 1 - 50 fps (50 Hz), 1 - 60 fps (60 Hz)
  • Network interface: 1 x RJ45 10/100/1000M (PoE++)
  • PoE: PoE++
  • Firmware update: via Web UI or USB-C
  • Tripod mount: 1/4-20 UNC
  • Color: black or white
  • Operating temperature: 0 to 40 °C
  • Operating humidity: 20% - 80%
  • Storage temperature: -20 to 60 °C
  • Power: 12 VDC 5 A (37.4 W)
  • Dimensions: 18.7 x 25.3 x 23.3 cm
  • Weight: 3.0 kg

DTV-7000-3112
