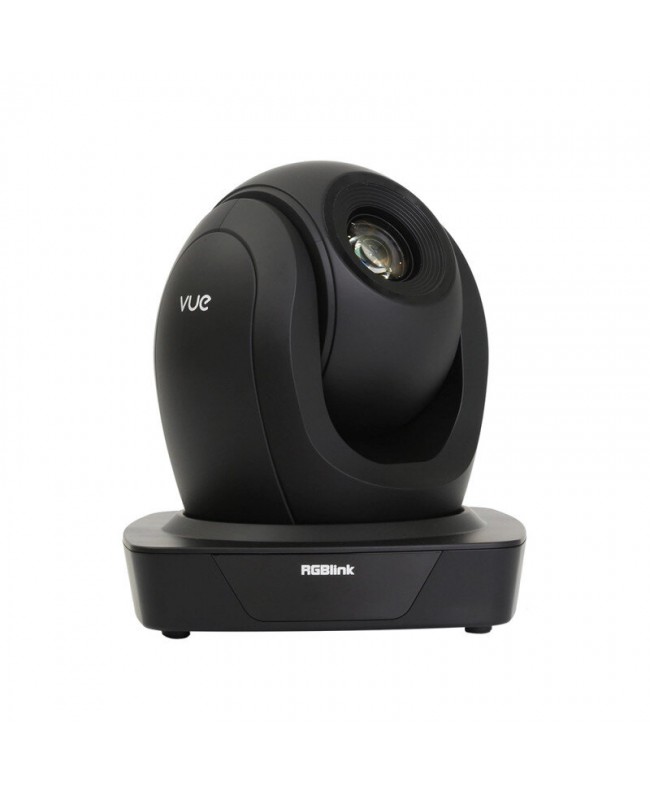

RGBlink RGB30X-POE-TLY



Full HD (up to 60 fps) PTZ camera with Po. E power supply, 30x optical zoom (10x digital) and HDMI / 3G-SDI / LAN interfaces. It features an advanced ISP image processor and a 2.07 Mpixel image sensor. Focus is automatic or manual. Dynamic level adjustment (WDR) and dynamic noise reduction 2D/3D (DNR) up to 60 fps are present.

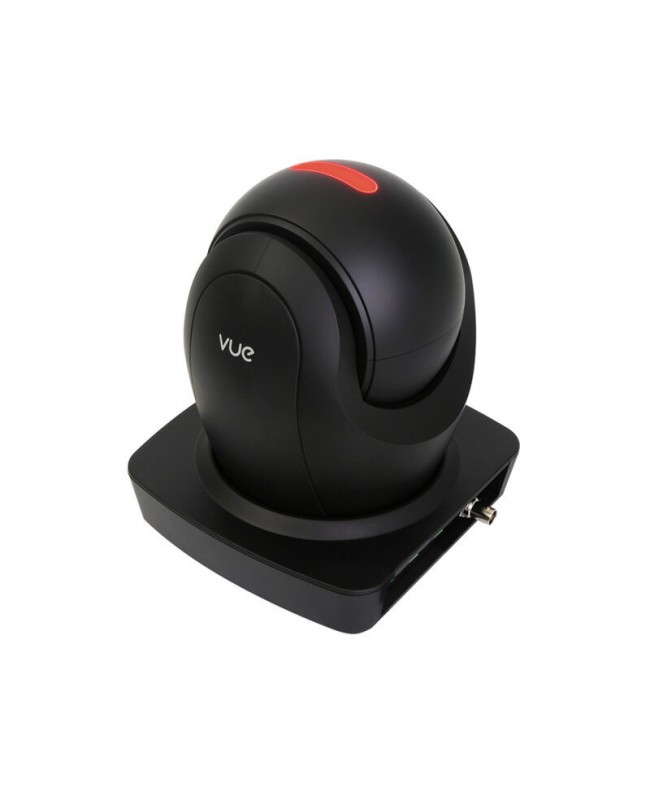

RGB30X-POE-TLY is equipped with the exclusive Tally light indicator, integrated directly into the housing for a 360° view. The innovative and patented RGBlink vue camera design is at home in any environment.

  • Main features
  • High-speed optical zoom
  • High performance in low-light scenarios thanks to Wide Dynamic Range
  • Full HD 1920 x 1080p resolution up to 60 fps
  • H.265 / H.264 dual stream output adapted to different network environment
  • Pan and amp; Tilt controls
  • Optional interface
  • 30X optical zoom
  • Low consumption sleep function
  • LAN Po. E support
  • Technical characteristics
  • Interfaces

Output

  • 3G SDI: 1 x BNC
  • HDMI: 1 x HDMI-A
  • USB: 1 x USB-A
  • LAN: 1 x RJ45
  • Audio IN: 1 x 3.5 mm stereo jack

Control

  • RS232 IN/OUT: 2 x DIN8
  • RS485: 1 x 4 pin terminal
  • Power: 1 x 12 VDC jack
  • Performance

Camera

  • Optical zoom: 30x (f=5.2 - 148.4 mm)
  • View angle: 2.14° - 58.1°
  • AV: F1.3 - F4.8
  • Digital zoom: 10x
  • Minimum illumination: 0.5 Lux (F1.8, AGC ON)
  • DNR: 2D and 3D DNR
  • White balance: Auto / Manual / One Push / 3000 K / 3500 K /4000 K / 4500 K / 5000 K / 5500 K / 6000 K / 6500 K / 7000 K
  • Focus: auto / manual
  • Aperture / electronic shutter: auto / manual
  • BLC: ON/OFF
  • WDR: OFF / dynamic level adjustment
  • Video adjustment: brightness / color / saturation / contrast / sharpness / B and W mode / gamma curve
  • SNR: 55 dB
  • Effective pixels: 2.07 Mpixel, 16:9

Pan and Tilt parameter

  • Pan / Tilt movement: -170° to 170°, -30° to 90°
  • Pan/Tilt control speed: 0.1 - 60°/s; 0.1 - 30°/s
  • Preset speed/quantity: Pan 60°/s, Tilt 30°/s; up to 255 preset positions (10 remote control)
  • 360° Tally: full 360° view of Tally
  • Audio compression format: AAC | MP3 | G.711A
  • Video compression format: H.264 | H.265 | dual streaming output
  • Output resolutions: 720p 50 / 59.94 /60 | 1080p 25 / 29.97 / 30 / 50 / 59.94 / 60 | 1080i 50 / 59.94 / 60
  • Control protocol: VISCA | Pelco-D | Pelco-P | ONVIF
  • Baud rate (bps): 115,200 | 9600 | 4800 | 2400 bps
  • Network protocol: RTSP | RTMP | SRT | ONVIF
  • Supported standards SDI: SMPTE 425M (Level A and B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI
  • Power
  • Input voltage: 12 VDC / 1.5 A
  • Max power: 12 W
  • Environment
  • Temperature: -10 to 50 ℃
  • Humidity: 20% to 80%
  • Physical
  • Net weight: 1.7 kg
  • Dimension: 180 x 188 x 198 mm

RGB-981-0011-33-0
