Relacart UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz Home
  • New

Relacart UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz

€249.00
Tax included

Diversity wireless receiver with DSP for microphone modeling and PC software

Qty

Available upon request

Free shipping

Compare

wishlist

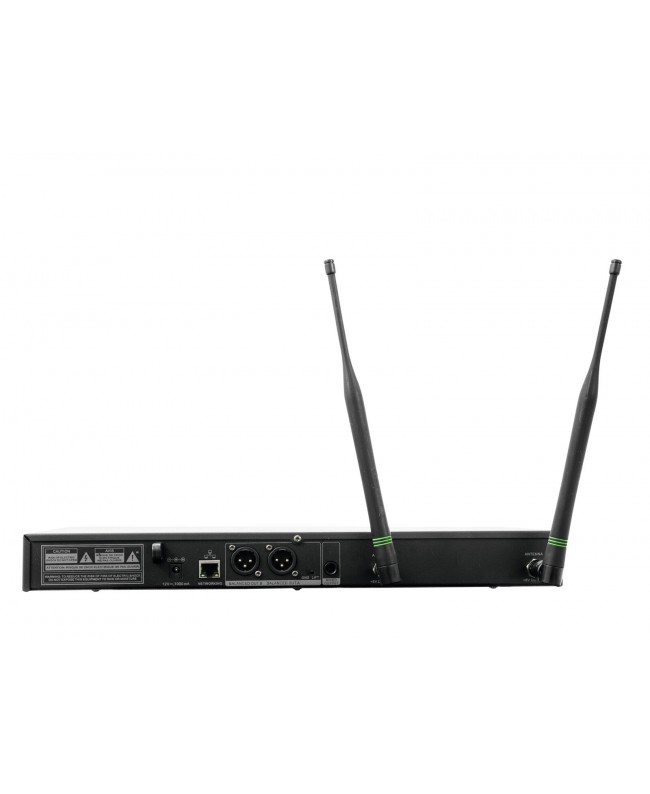

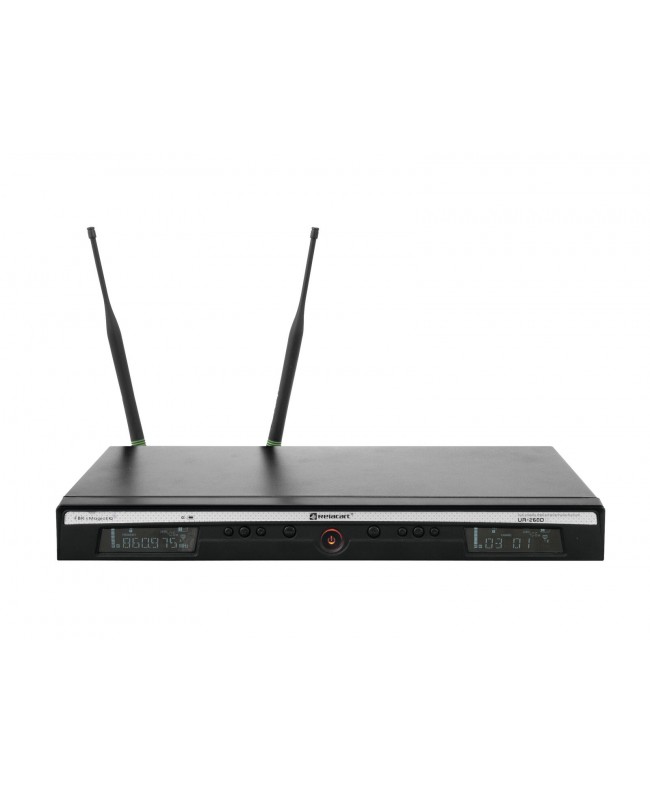

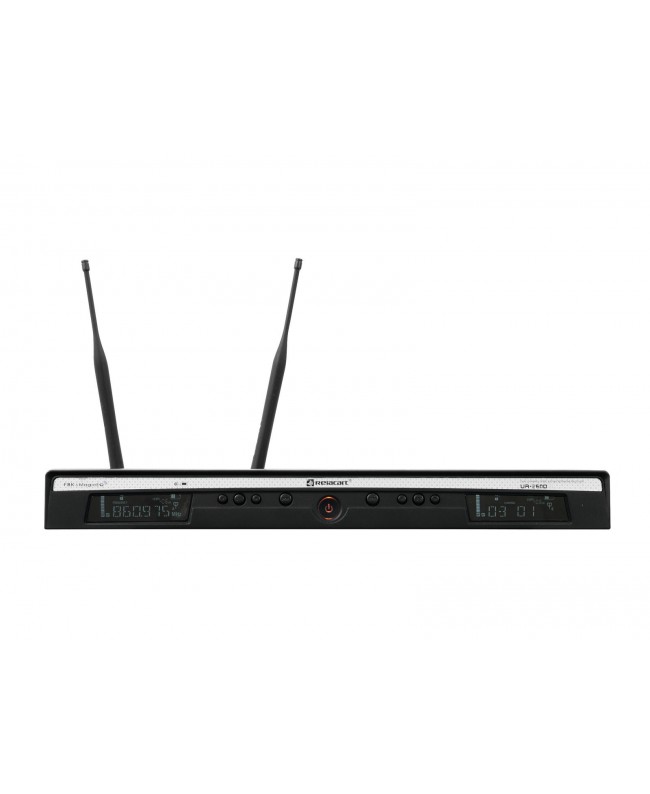

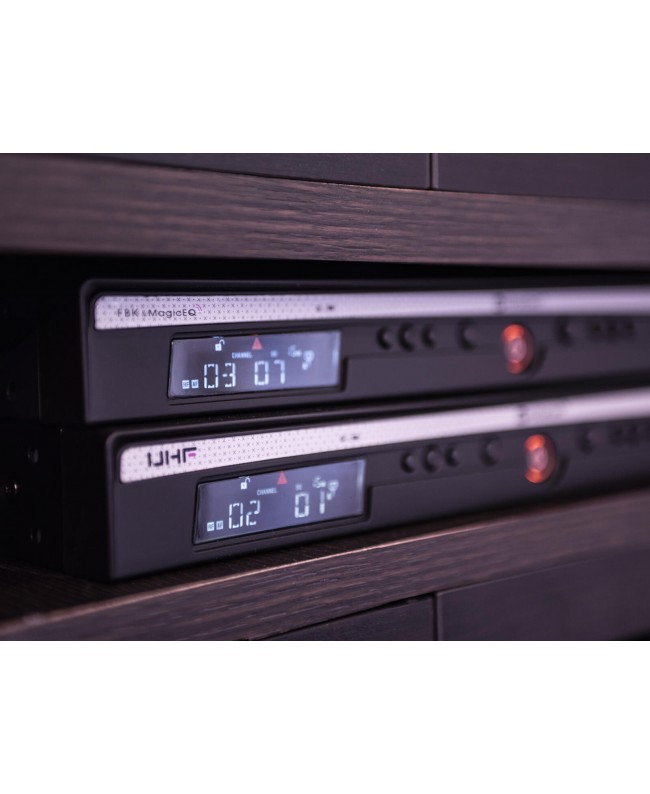

Relacart UR-260D 2-channel UHF Receiver 823-832 + 863-865 MHz



The UR-260D is a dual-channel true diversity UHF system with a host of innovative features. In addition to automatic frequency scanning for interference-free transmission, one also finds an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-known microphone capsules can be emulated or created yourself. The presets can be changed from a computer via software - even during live operation.

Scope of delivery

  • 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
  • Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
  • Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
  • Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
  • DSP programming and management via Ethernet port and intuitively operated PC software
  • High-quality antenna diversity reception
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Pilot frequency squelch technology delete wireless RF interference
  • Automatic frequency scan (AFS) finds interference-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • Multiple units can be linked with network cables
  • Lock function for prevents undesired changes to settings
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Rugged metal housing
  • (19) 48.3 cm rack installation possible 1 U
  • Digital signal processor 96kHz, 24 bit
  • Operating range up to 80m
  • UHF 863 - 865 MHz License-free and approved in Europe
  • UHF 823 - 832 MHz License-free and approved in large parts of Europe
  • Up to 9 transmitters can be operated in parallel without interference
  • Multicolor LCD display
  • The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
  • Desktop console housing
  • 1 x receiver
  • 2 x antenna
  • 1 x external mains adapter
  • 1 x jack cable
  • 2 x mounting bracket
  • 6 x screw
  • 1 x user manual
  • 1 x declaration of conformity
  • Type: Receiver
  • Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
  • Power consumption: Max. 9 W
  • Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
  • Number of channels: 2
  • Frequency range: 45 - 18000 Hz
  • S/N ratio: 100 dB
  • THD: 0.5 % at 1 kHz
  • Network connection: Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version
  • DSP: Digital signal processor 96kHz, 24 bit
  • Range: Range up to 80m
  • Frequency band: UHF 863 - 865 MHz; UHF 823 - 832 MHz
  • Diversity: Antenna diversity
  • Switching bandwidth: 11 MHz
  • Frequency stability: +- 0.005 %
  • Parallel mode: Max. 9 transmitter
  • Modulation: FM
  • Frequency selection: 90 switchable frequencies, In 10 groups with up to 10 preset frequencies each
  • Display type: Multicolor LCD display
  • Control elements: Power switch, groundlift selector, menu, navigation keys
  • Connections: Antenna via 2 x BNC (F) 8 V, Output: microphone via 2 x 3-pin XLR (M) mounting version, Output: line via 1 x 6.3 mm plug (unbal.)
  • Material: Metal
  • Color: Black
  • PC connect: RELACART Magic EQ software via RJ-45 (F) mounting version
  • Housing design: Desktop console housing, (19) 48.3 cm rack installation possible 1 U
  • Dimensions: Width: 41 cm, Depth: 26 cm, Height: 4.3 cm
  • Weight: 2.50 kg

13055210

Data sheet

Channels
2 channels
Color
Black
