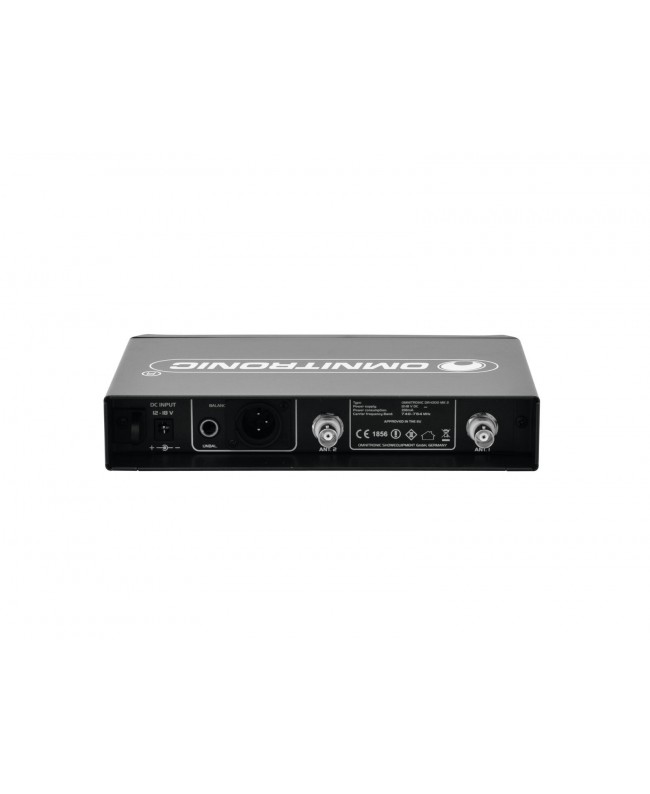

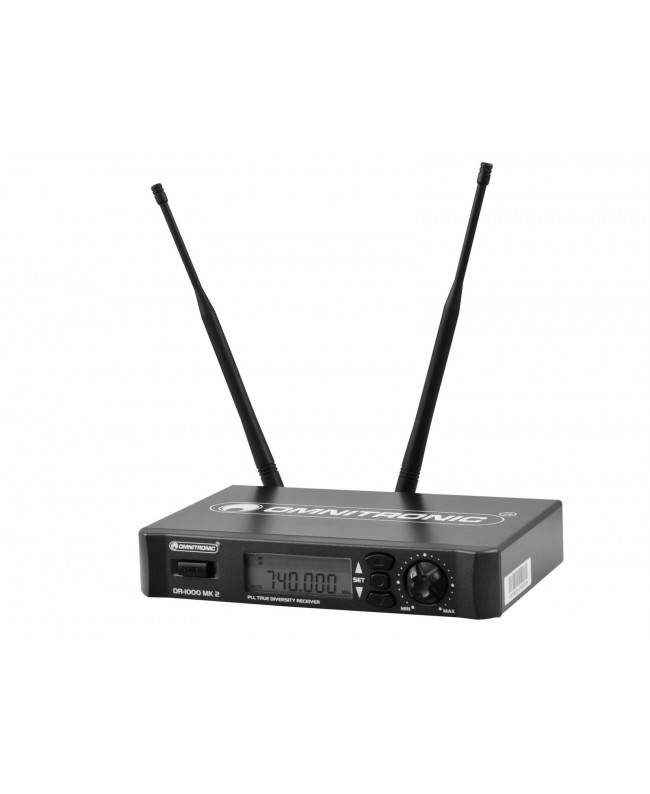

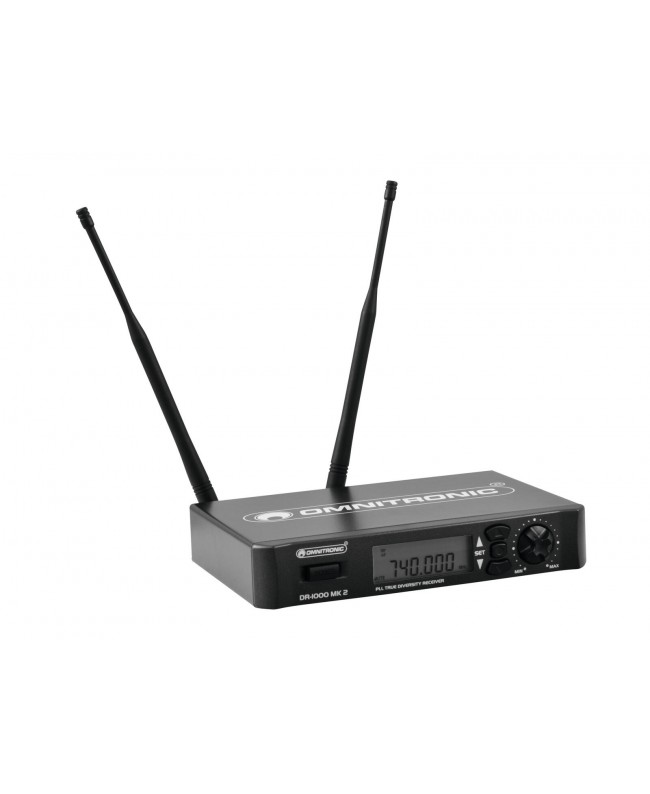

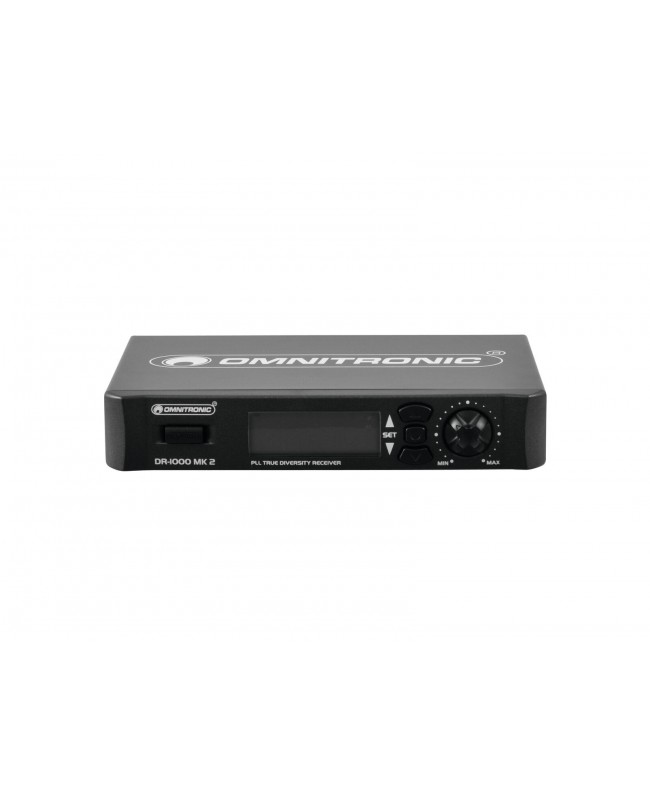

Omnitronic DR-1000 MK2 Wireless Receiver

A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

• Multifrequency wireless receiver with UHF pilot tone technology (PLL)
• High-quality true diversity reception
• Operation in the low-interference UHF band
• 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
• System expandable to up to 16 receivers with 16 microphones
• Automatic frequency scan
• Output level control
• Lock function for prevents undesired changes to settings
• Mute mode when signal is absent or too weak
• Rugged metal housing
• Optional antenna boosters and antenna distributor for easy setup of several receivers
• Operating range up to 100m with line-of-sight
• UHF 740 - 764 MHz License-free and approved in large parts of Europe
• Charge status indicator
• Desktop console housing
• (19) 48.3 cm rack installation possible

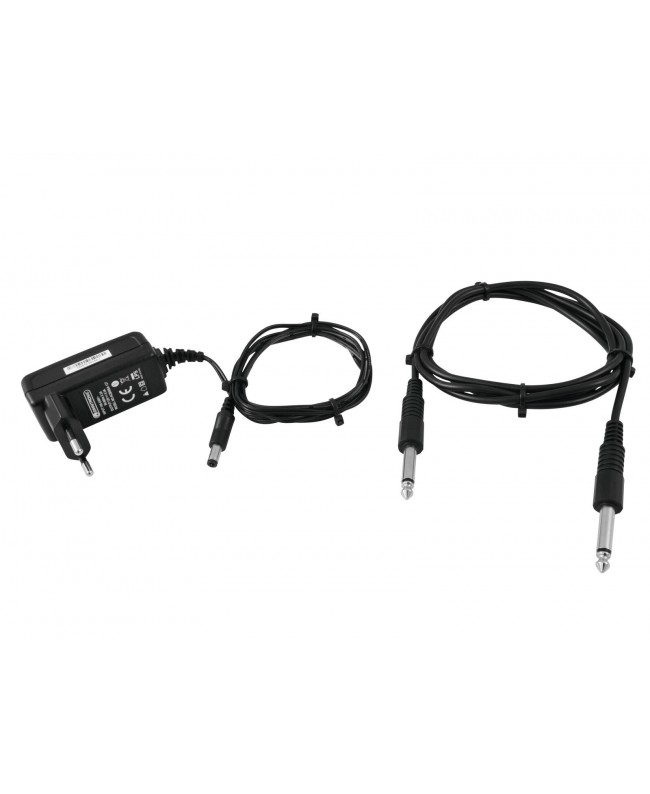

Scope of delivery
