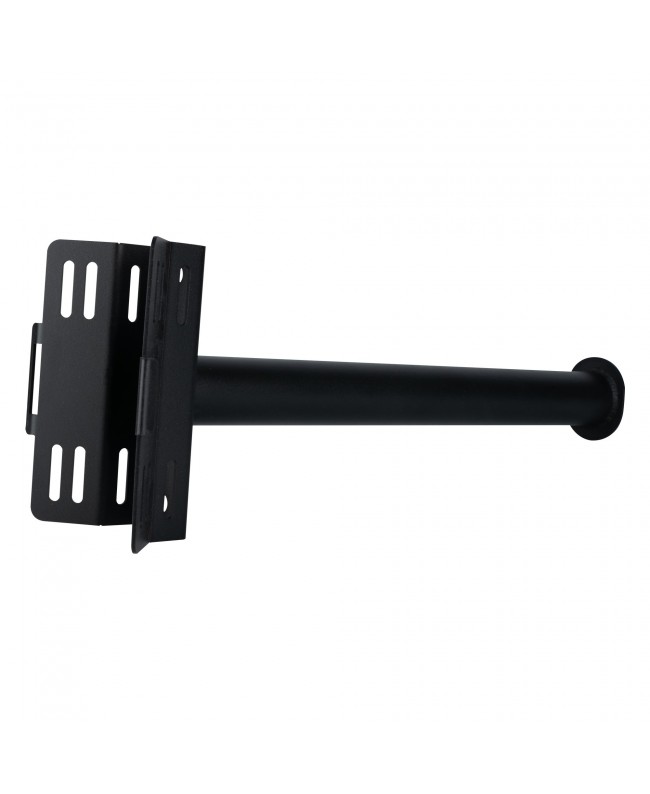

SHOWGEAR Mast and Pole Mounting Bracket Mast/Pole mounting bracket with ø 50 mm tube


€41.50
Tax included

Mast/Pole mounting bracket with ø 50 mm tube


Qty

Available upon request



wishlist

SHOWGEAR Mast and Pole Mounting Bracket Mast/Pole mounting bracket with ø 50 mm tube

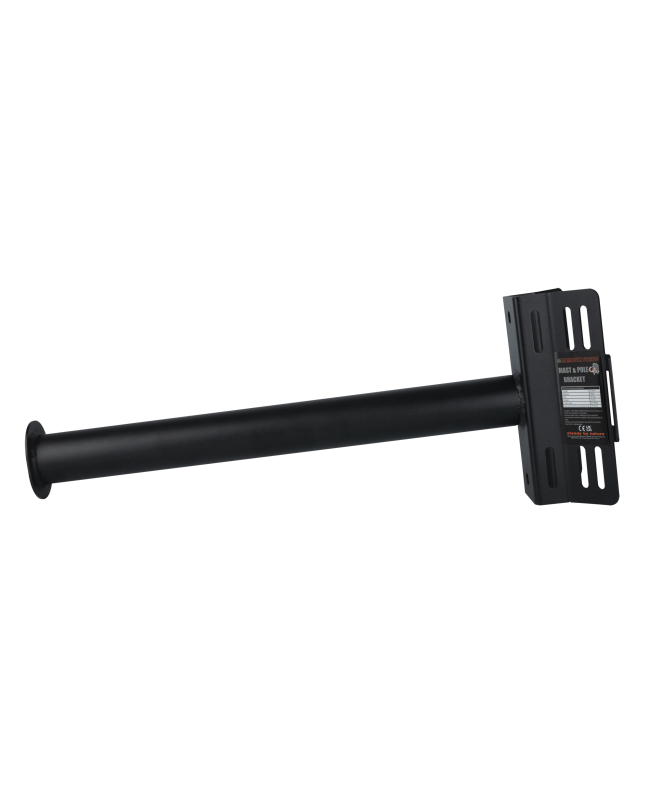

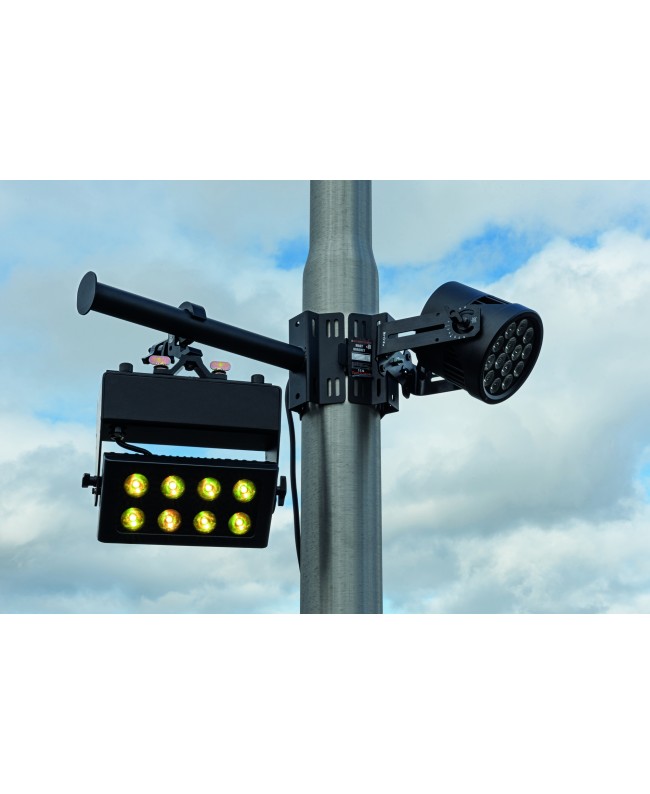

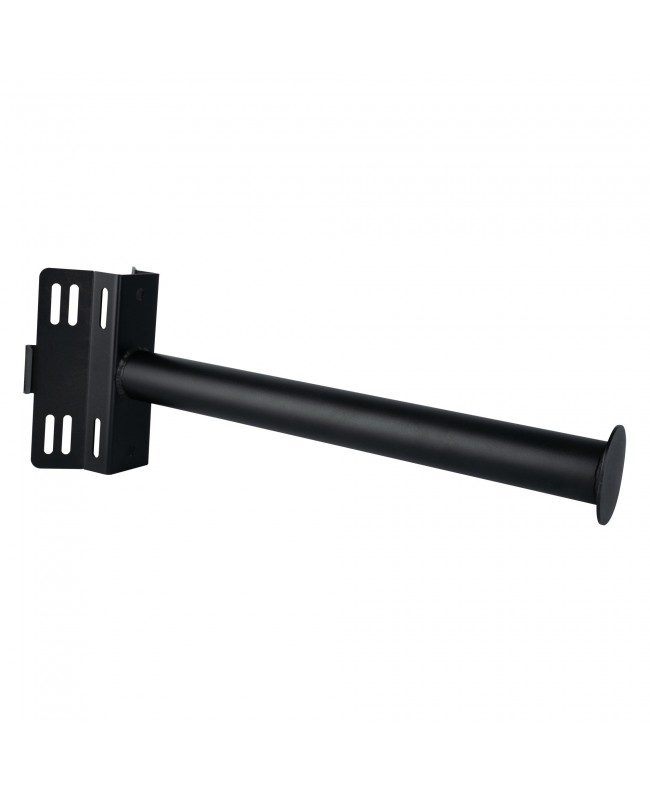

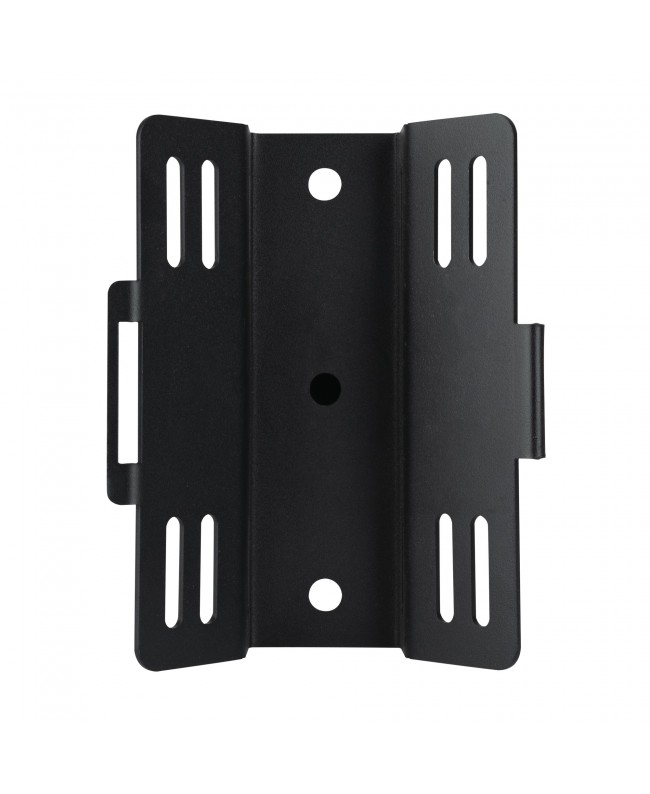

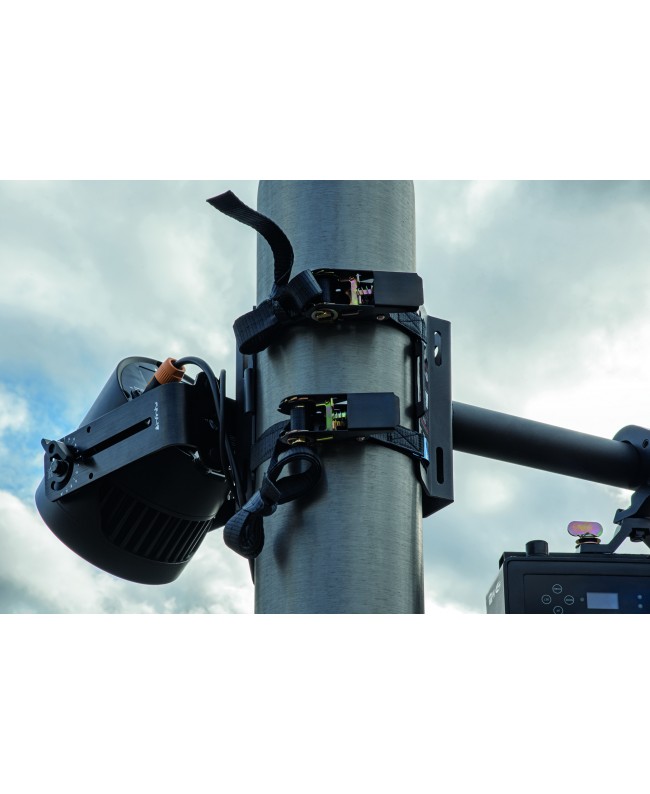

The Showgear Mast/Pole Mounting Bracket allows you to easily mount lighting fixtures against a mast or pole. This is possible with the help of two supplied 2-meter endless ratchet straps. The bracket has a 47.5 cm long steel tube on which objects weighing up to 50 kg can be mounted by using 48-50 mm clamps. Hooks on the side of the bracket make it possible to attach brackets to each other.

Please note that the working load limit depends on the mounting. ALWAYS check whether the object to which you attach the bracket is suitable. ALWAYS use safety cables when mounting at height, both for the bracket itself and for the fixture to be hung.

  • Suitable for mounting objects with 50 mm (2) clamp
  • Quick and easy to attach

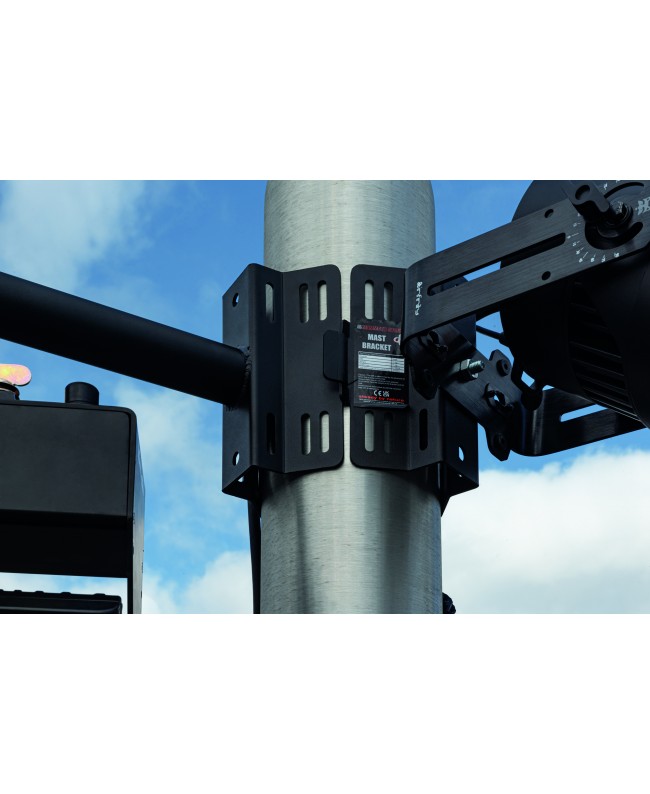

  • Safety cable can be attached
  • Strong steel construction with loadable weight up to 50 kg

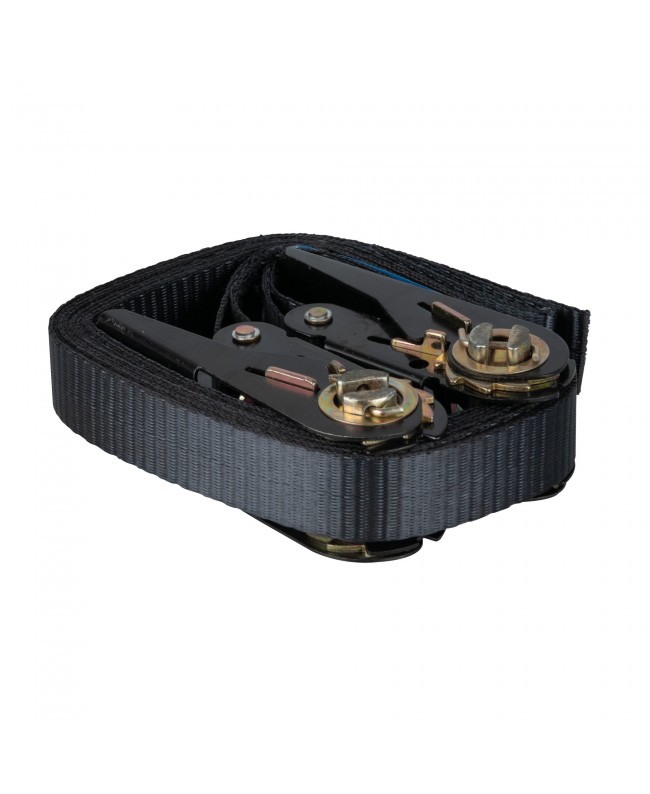

  • Including two 2-m endless ratchet straps
  • WLL (kg): 50 kg
  • Material: Steel
  • Finish: Powder Coating
  • Colour: Black
  • Length (mm): 551 mm
  • Height (mm): 200 mm
  • Width (mm): 153 mm
  • Diameter: 50 mm
  • Weight: 1.8 kg
  • Safety Factor: 5:1
  • Tensile Strength: daN
  • Lashing type: Endless ratchet strap
  • Lashing capacity (LC): 800 daN
  • Standard hand force: 50 daN
  • Standard tension force (STF): 80 daN
  • Webbing material: Polyester (PES)
  • Endless ratchet strap: 2 M
  • Max. elongation: 7 %
  • Minimum Ambient Temperature: -20 °C
  • Maximum Ambient Temperature: 60 °C
  • Included Accessories: Strap Handle

E748003
