Datavideo TLM-170VM Signal management monitor
  • -26%
  • New

Datavideo TLM-170VM

€3,397.00
€2,528.00 -26%
Tax included
Lowest price within the last 30 days: €2,528.00

17 ScopeView Production Monitor-Pull-Out

Out of Stock

Free shipping

Compare

wishlist

Datavideo TLM-170VM

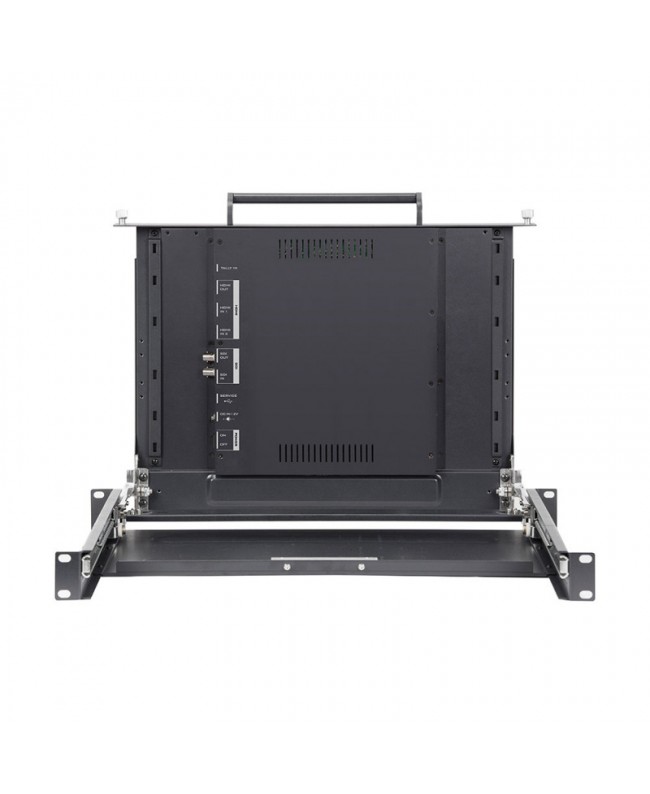

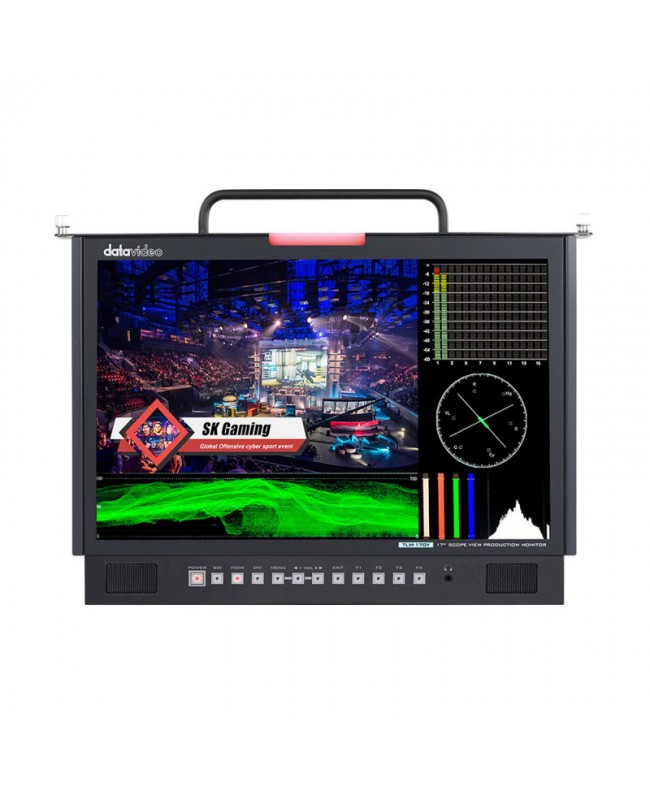

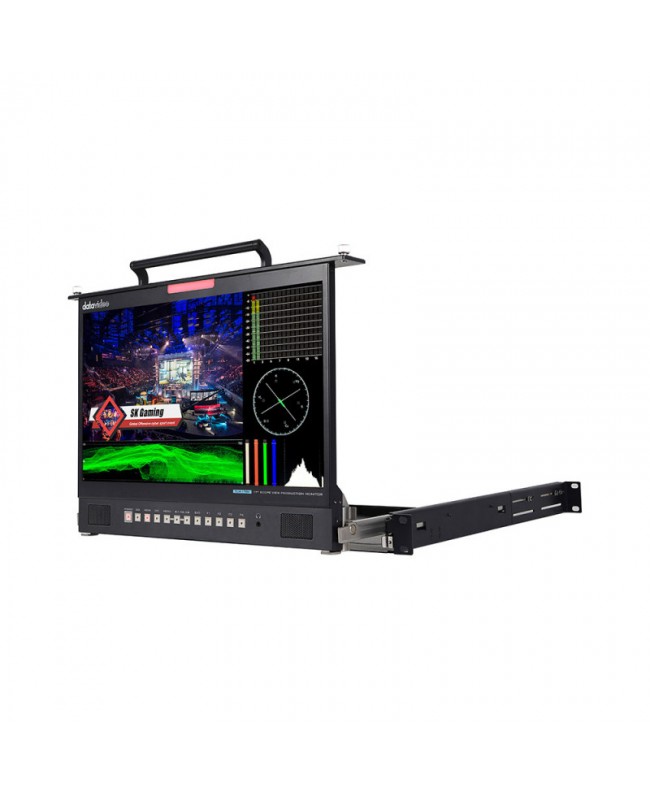

17.3 Full HD Pull-Out Monitor. 1U Foldable Rackmount Tray Unit. Supports 3G/HD/SD 1920 x 1080 panel resolution.

Supports multiple input and output configurations: 1 x 3G/HD/SD-SDI, 2 x HDMI inputs; 1 x 3G/HD/SD-SDI, 1 x HDMI loop through.

The TLM-170VM can cross convert SDI, HDMI video signals, makes it a great fit to all the video production workflow.

Various built-in functions: support column (YRGB peak), time code, waveform, vector scope and audio level meter, peaking, zoom, pix to pix, underscan, check field.

  • Tallylight included. Best use for live production.
  • Screen: 17.3 LED Backlit
  • Chassis: 1RU Pull-Out
  • Resolution: 1920 x 1080
  • Viewing Angle: (H) +89/-89°
  • (V) +89/-89°
  • Luminance/Contrast: 300cd/m2
  • 700: 1
  • Video Inputs: 1x 3G/HD/SD-SDI
  • 2X HDMI
  • Loop Through: 1x 3G/HD/SD-SDI
  • 1X HDMI
  • Supported Input Resolutions: 1080p(23.98/24/25/29.97/30/50/59.95/60 Hz)
  • 1080I(50/59.94/60 Hz),
  • 720P(50/59.94/60 Hz),
  • 576I(PAL), 480i(NTSC)
  • Aspect Ratio: 16:9, 4:3
  • TallyLED: Live (Red)
  • Cued (Green)
  • Audio In/Out: 2x Speaker
  • 1X Headphone Jack
  • Special Features: SDI and HDMI cross conversion,
  • Support column (YRGB peak),
  • Time code, waveform,
  • Vector scope and audio level meter,
  • Peaking focus assist,
  • Zoom, pix to pix,
  • Underscan, check field
  • Dimension (L x W x H): 403 x 305 x 41 mm
  • Weight: 4.5 kg
  • Operating Temp. Range: 0~40 °C
  • Power: DC 10-18V, 32W

DTV-2100-0194
