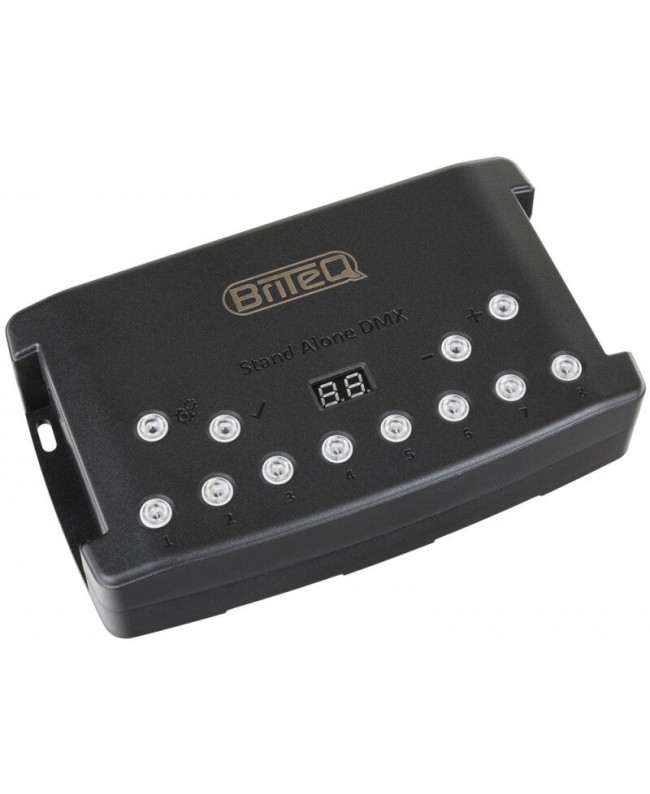

Briteq LD-1024EASY NET

1024 Channel DMX interface and amp; multizone controller with Ethernet port for Local Area Network (LAN, WLAN).

• Main features
• 1024 Channel DMX interface with Ethernet port for Local Area Network (LAN, WLAN)

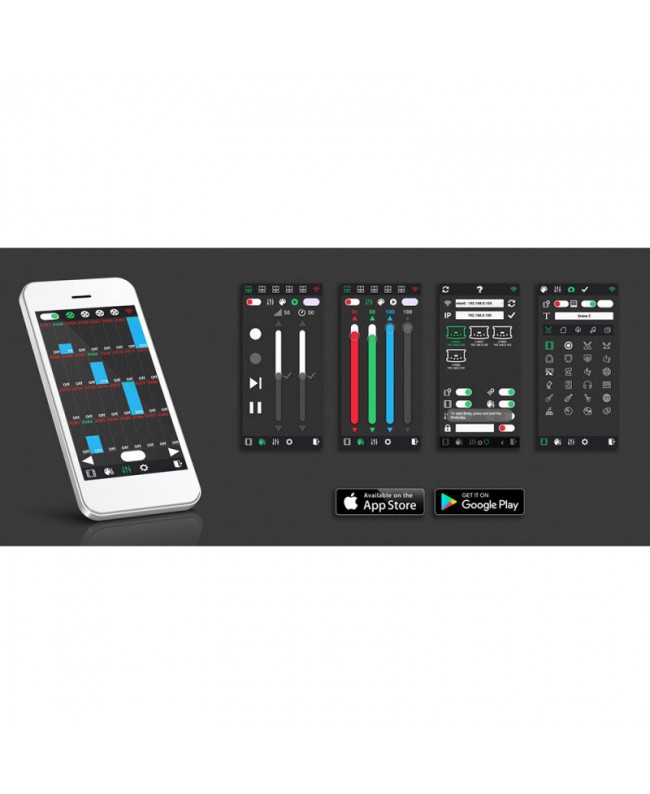

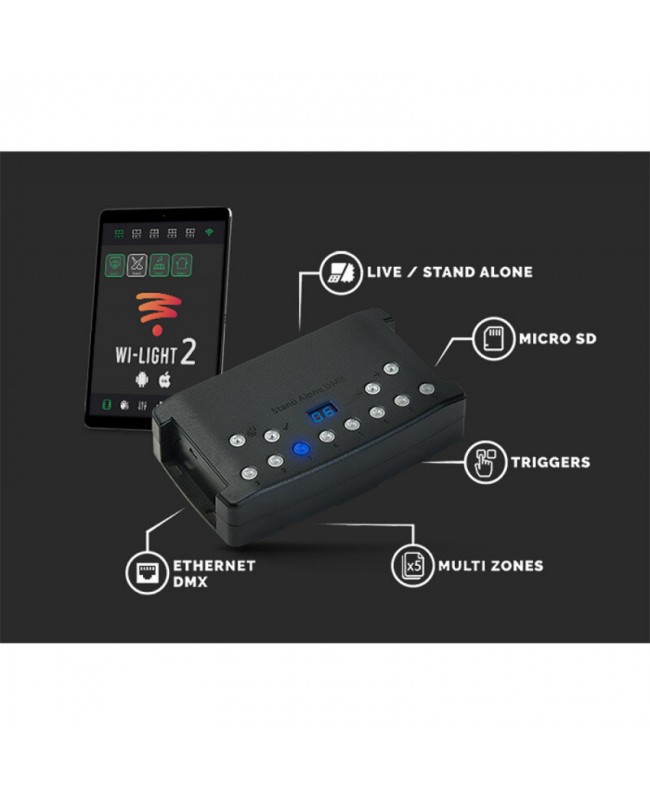

• Can be used with the Wi-Light APP from a mobile device (Android and #43; i. OS): Video and #039;Wi-Light 2 APP and #039;
• 1024 Output channels when used with a computer
• Multizone 1024 output channels when used stand-alone without computer (max 6000 steps and 512 scenes max. when 512 channels are used)
• 4 MB internal memory and external SD Card reader (extended memory for all type of Micro SD card)
• 16 Bits channels management in standalone
• RS232 triggers for standalone DMX
• Input trigger stand-alone
• 30 Minutes of lighting, audio and video time line synchronization with Pro DMX software
• Integrated DMX splitter (2 outputs)
• Works with the Chromateq Led Player and Chromateq Pro DMX software (included)
• Functions and control in stand-alone mode:
• Automatic Real Time Clock triggering for different scenes (day, week, month, year)
• External triggering via 7 contacts
• Select one of your 80 programs (max.) via the 8 switch buttons x 10 selectable pages
• Multiple zone control: 5 different programs can run simultaneously
• Program selection via the NEXT and PREVIOUS buttons
• General dimmer adjustment
• Speed adjustment of the programs
• Manual color selection of your customized colors via the 8 trigger buttons
• Manual color selection of 100 standard colors via the and #43; and - buttons
• Master/Slave mode for up to 32 interfaces connected together

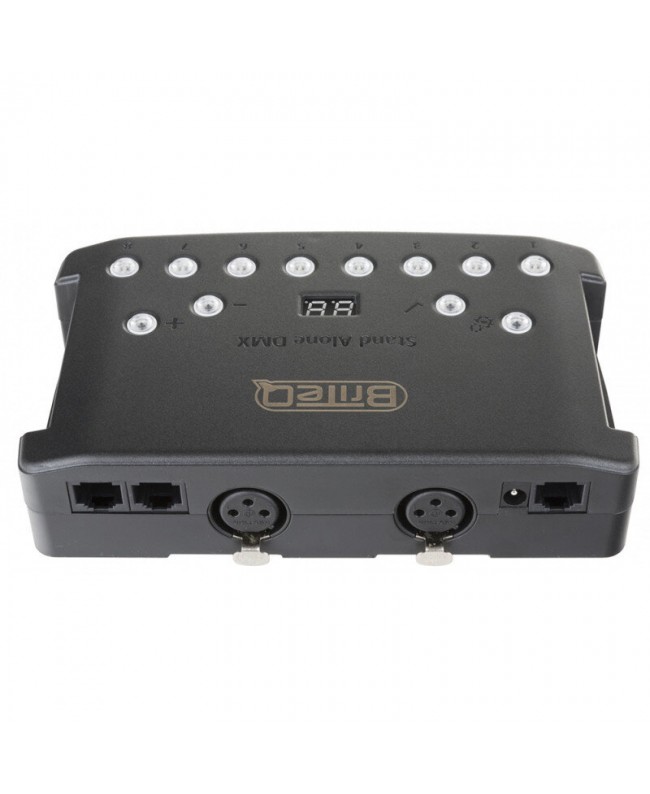

• 3-Pin XLR connectors
• Power supply for the use in standalone mode: 9 to 36 V via DC connectors, 5 V via USB connector (optional)
• An optional external infra-red receiver can be connected to the unit (LD-512 Kit-IR and #61; IR receiver and #43; 2 remote controllers)
